| Electrical specifications | ||
| Type | I/O | |
| Number of poles | 6 | |
| Conductor cross section | (AWG) | 26 |
| Cable diameter | (mm) | 5 |
| Cable length | (m) | 0.3 |
| Cable insulation material | PVC | |
| Shield | Yes | |
| Bending cycles | (cycles) | - |
| Minimum bending radius | (mm) | - |

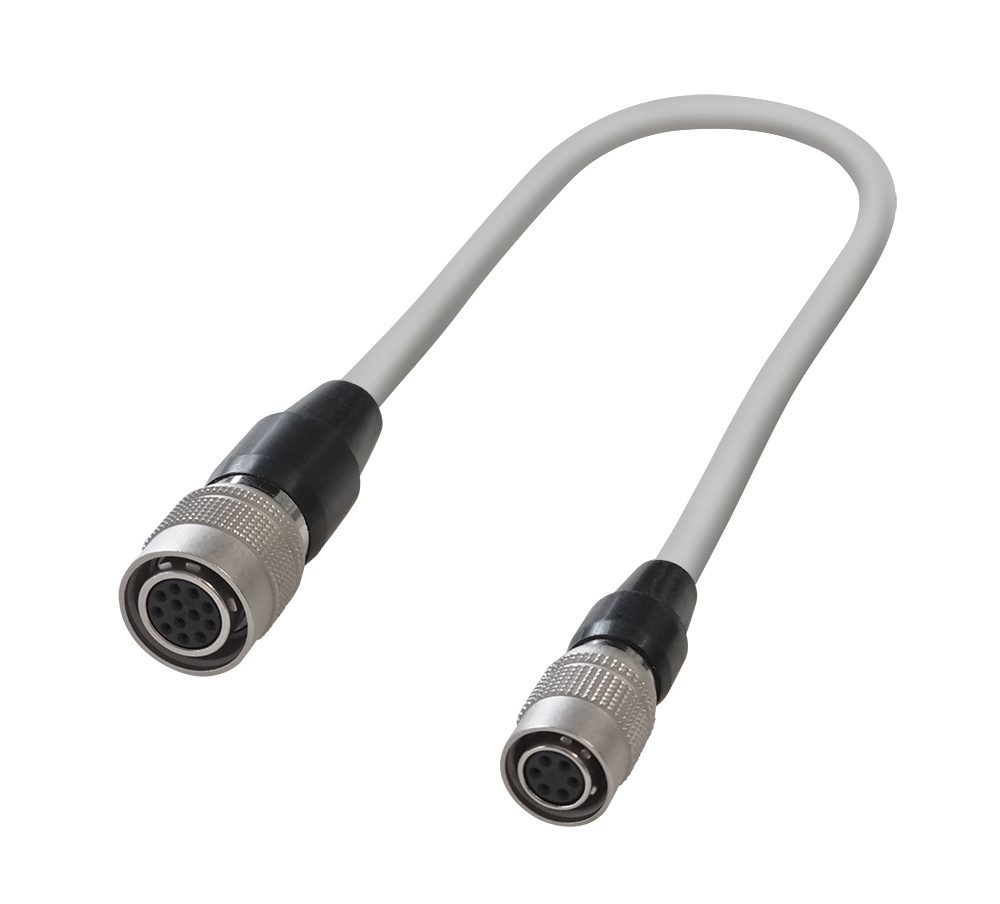

| Side 1 | Circular Hirose - 12pin - female | |
| Side 2 | Circular Hirose - 6pin - female | |
| Other | - | |
| Voltage rating | 24 | |
| Current rating | 2 | |
| Environmental specifications | ||
| Operating temperature | (°C) | -10-+80 |
Last update 21 Feb 2024
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
TCEL23036
Telecentric lens for 2/3″ sensors with integrated liquid lens, mag. 0.243x
TCEL050
Telecentric lens for 2/3″ sensors with integrated liquid lens, mag. 0.500x
TCEL066
Telecentric lens for 2/3″ sensors with integrated liquid lens, mag. 0.670x
TCEL075
Telecentric lens for 2/3″ sensors with integrated liquid lens, mag. 0.750x
TCEL100
Telecentric lens for 2/3″ sensors with integrated liquid lens, mag. 1.000x
TCEL150
Telecentric lens for 2/3″ sensors with integrated liquid lens, mag. 1.500x
TCEL250
Telecentric lens for 2/3″ sensors with integrated liquid lens, mag. 2.500x
TCEL350
Telecentric lens for 2/3″ sensors with integrated liquid lens, mag. 3.500x
EL5MP0656
5 MP fixed focal lens with liquid lens technology, focal length 6 mm, ƒ/N 5.6, C-mount
EL5MP0856
5 MP fixed focal lens with liquid lens technology, focal length 8 mm, ƒ/N 5.6, C-mount
EL5MP1256
5 MP fixed focal lens with liquid lens technology, focal length 12 mm, ƒ/N 5.6, C-mount
EL5MP1656
5 MP fixed focal lens with liquid lens technology, focal length 16 mm, ƒ/N 5.6, C-mount
EL5MP2556
5 MP fixed focal lens with liquid lens technology, focal length 25 mm, ƒ/N 5.6, C-mount
PCHI023-AF
Hole inspection optics for 2/3"sensors, liquid lens focusing
PCHI012-AF
Hole inspection optics for 1/2"sensors, liquid lens focusing
PCHI3M-AF
Hole inspection optics for 1.1"sensors, liquid lens focusing
PCBP013-AF
Boroscopic probe for 1/3" detectors, liquid lens focusing
PCBP012-AF
Boroscopic probe for 1/2" detectors, liquid lens focusing
PCBP023-AF
Boroscopic probe for 2/3" detectors, liquid lens focusing
ITA16-GM-10C-EL
Area scan camera 1456 x 1088 MP, Sony IMX273, CMOS Global shutter, 1/2.9", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA16-GC-10C-EL
Area scan camera 1456 x 1088 MP, Sony IMX273, CMOS Global shutter, 1/2.9", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA23-GM-10C-EL
Area scan camera 1936 x 1216 MP, Sony IMX249, CMOS Global shutter, 1/1.2", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA23-GC-10C-EL
Area scan camera 1936 x 1216 MP, Sony IMX249, CMOS Global shutter, 1/1.2", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA24-GC-10C-EL
Area scan camera 1936 x 1216 MP, Sony IMX392, CMOS Global shutter, 1/2.3", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA24-GM-10C-EL
Area scan camera 1936 x 1216 MP, Sony IMX392, CMOS Global shutter, 1/2.3", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA32-GM-10C-EL
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA32-GC-10C-EL
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA50-GM-10C-EL
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA50-GC-10C-EL
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA51-GM-20C-EL
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA51-GC-20C-EL
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA81-GM-20C-EL
Area scan camera 2856 x 2848 MP, Sony IMX546, CMOS Global shutter, 2/3", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA81-GC-20C-EL
Area scan camera 2856 x 2848 MP, Sony IMX546, CMOS Global shutter, 2/3", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA89-GM-10C-EL
Area scan camera 4112 x 2176 MP, Sony IMX267, CMOS Global shutter, 1", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA89-GC-10C-EL
Area scan camera 4112 x 2176 MP, Sony IMX267, CMOS Global shutter, 1", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA120-GM-10C-EL
Area scan camera 4112 x 3008 MP, Sony IMX304, CMOS Global shutter, 1.1", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA120-GC-10C-EL
Area scan camera 4112 x 3008 MP, Sony IMX304, CMOS Global shutter, 1.1", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA124-GM-20C-EL
Area scan camera 4128 x 3008 MP, Sony IMX545, CMOS Global shutter, 1/1.1", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA124-GC-20C-EL
Area scan camera 4128 x 3008 MP, Sony IMX545, CMOS Global shutter, 1/1.1", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA162-GM-20C-EL
Area scan camera 5328 x 3040 MP, Sony IMX542, CMOS Global shutter, 1.1", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA162-GC-20C-EL
Area scan camera 5328 x 3040 MP, Sony IMX542, CMOS Global shutter, 1.1", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA204-GM-20C-EL
Area scan camera 4512 x 4512 MP, Sony IMX541, CMOS Global shutter, 1.1", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA204-GC-20C-EL
Area scan camera 4512 x 4512 MP, Sony IMX541, CMOS Global shutter, 1.1", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA246-GM-20C-EL
Area scan camera 5328 x 4608 MP, Sony IMX540, CMOS Global shutter, 1.2", Mono, 1 GigE, POE, C mount, with integrated liquid lens controller
ITA246-GC-20C-EL
Area scan camera 5328 x 4608 MP, Sony IMX540, CMOS Global shutter, 1.2", Color, 1 GigE, POE, C mount, with integrated liquid lens controller
