EL12MP series
12 MP fixed focal length lenses for sensors up to 1.1" with integrated liquid lens technology
Key advantages
- Remote, precise and extremely fast autofocus
Electronically driven liquid lenses allow for precise changes of focus in just a few milliseconds - Excellent accuracy and high repeatability
Enhanced by a precise thermal calibration algorithm - Easy installation
Optotune liquid lenses are integrated in the optical design for an efficient ready-to-use solution - High-resolution images with focusing changes
Lenses optimized for sensors up to 1.1" - Robust design
Lifetime guaranteed for over 1 billion cycles
The EL12MP series features 12 MP fixed focal length lenses optimized for sensors up to 1.1" with integrated liquid lens technology.
The high-resolution optical design combined with a Optotune liquid lens allows autofocus within a few milliseconds and acquisition of high-quality images.
These lenses are ideal for high-speed inspection that require quick, precise and remote focusing at different working distances and high-resolution images.
Sectors that can greatly benefit from this innovative solution are, for example, the food and beverage, pharmaceutical, cosmetics, and electronics industries.
Moreover, EL12MP lenses are ideal for guiding robotic arms used for applications such as fast pick-and-place and bin-picking.
The EL12MP series ensures high repeatability and focus stability thanks to a constant temperature calibration.
Maximum performance can be obtained by combining EL12MP lenses with ITALA G.EL cameras: the built-in liquid lens driver and the autofocus functionality allow time savings as the camera is able to find the best focusing condition of the lens automatically and quickly without direct operator intervention and without the need for an external controller.
Didn’t find what you need?
Custom ƒ/N options for EL12MP lenses are available. Contact your Area Manager for details.
Easy installation

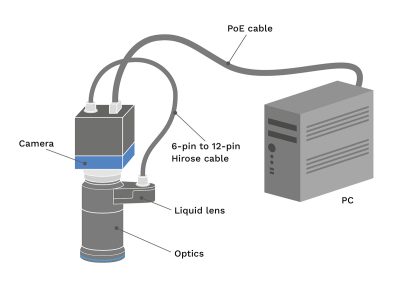

By interfacing the EL12MP optics with the ITALA G.EL cameras, you can directly control the focus without using additional controllers and simplifying the wiring: all you need is a PoE cable from the camera to the PC and a specific cable that connects the camera to the liquid lens.

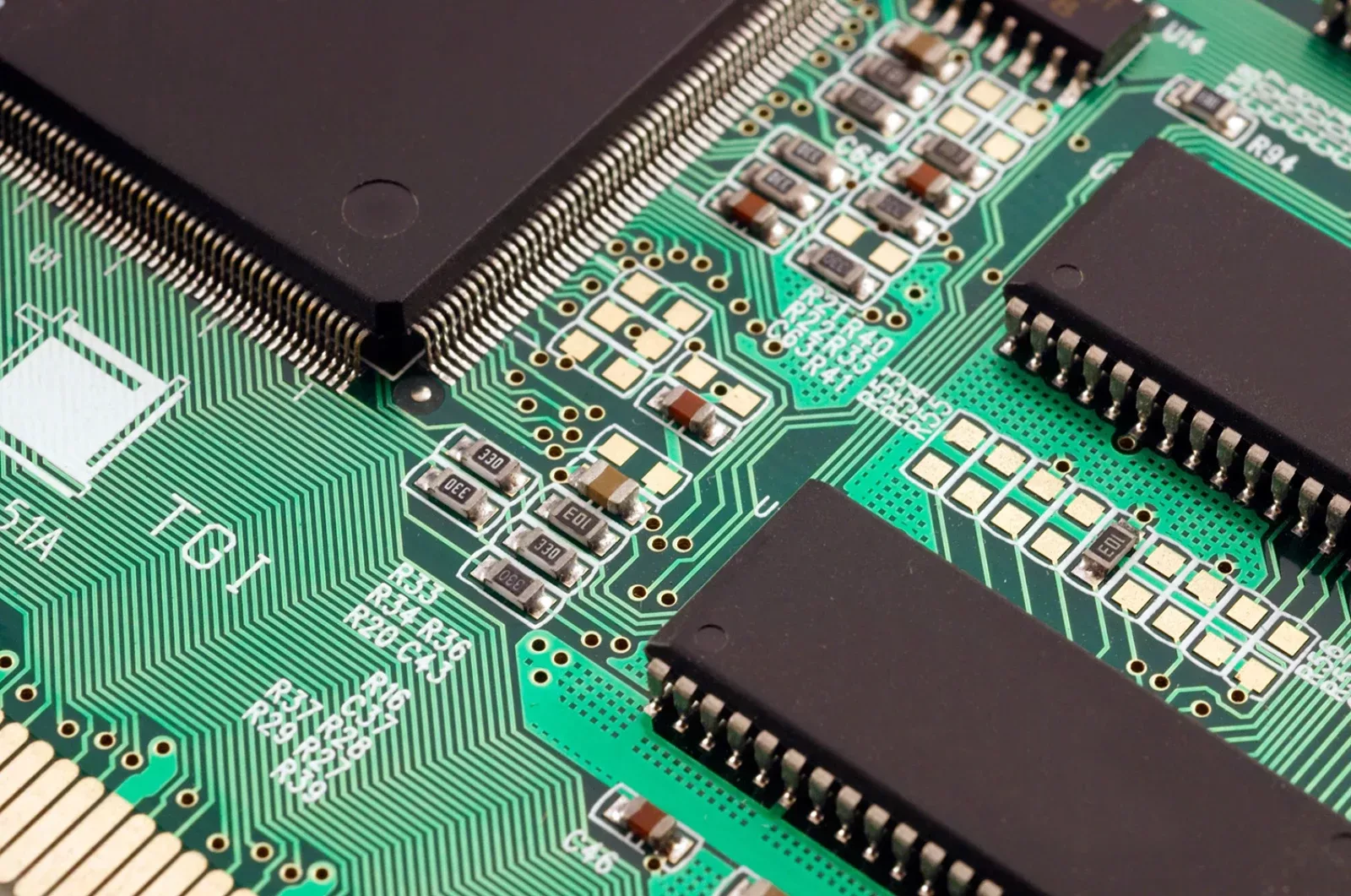

Application examples
Notes
- Calculated at minimum object distance.
- Working distance: distance between the front end of the mechanics and the object.
- Percent deviation of the real image compared to an ideal, undistorted image.
- Typical at 30°C, 0 to ±250 mA step.
- Measured from the front end of the mechanics to the camera flange at infinite focusing.
