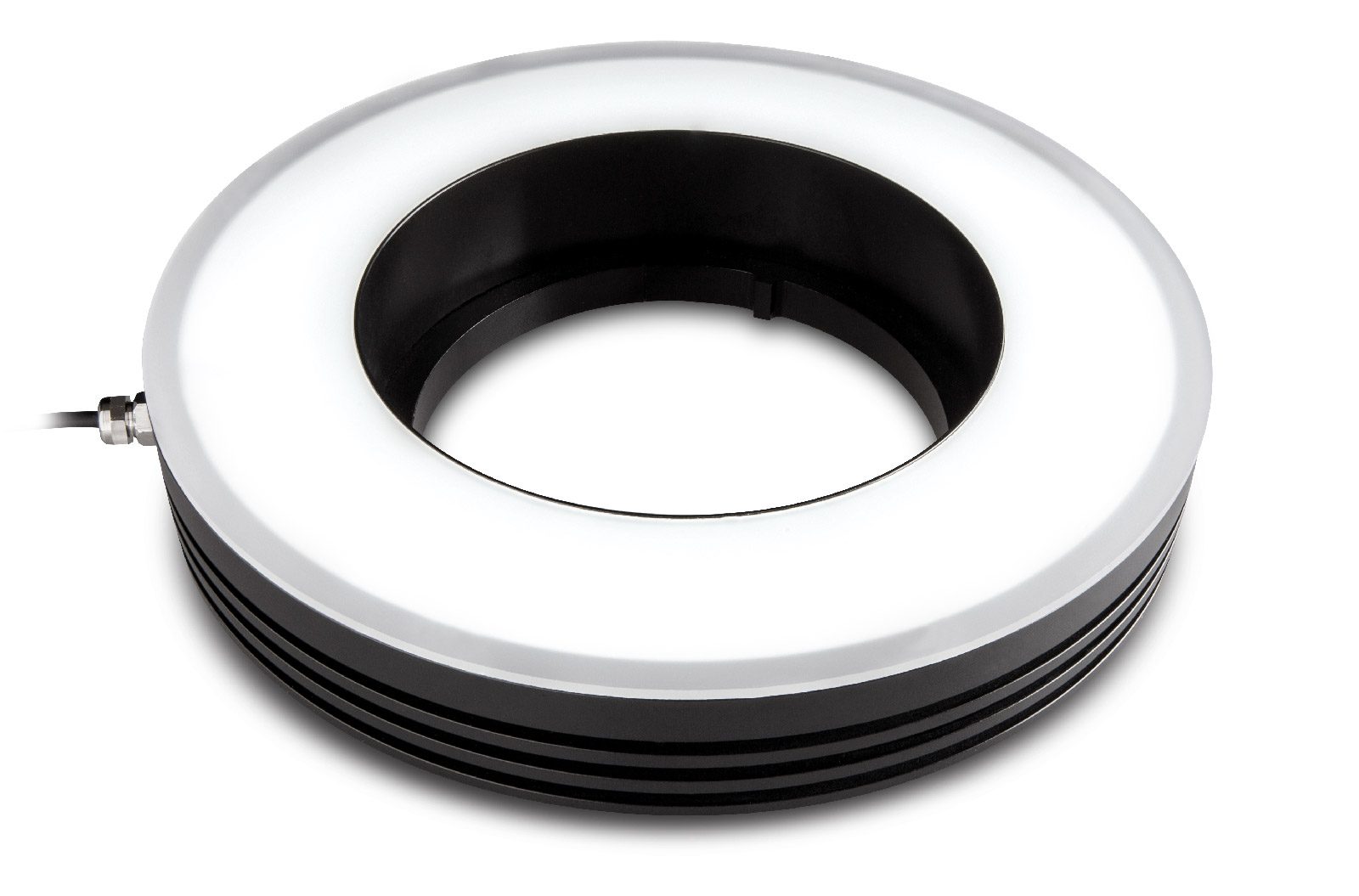

LTRN064UV
Specifications
Downloads
Compatible products
Lighting specifications
Illumination area outer diameter (mm) 178.0
Illumination area inner diameter (mm) 120.0
Emission angle (deg) 0
Optimal working distance (mm) 280-365
Number of LED rows 2
Light color, peak wavelength UV, 365 nm
Illuminance at minimum working distance (1) (lux) -
Illuminance at maximum working distance (1) (lux) -
Electrical specifications
Supply voltage (2) (V) 24
Current (mA) 480
Power consumption (W) 11.5
Estimated MTBF (3) (hours) -
Max pulse voltage (4) (V) 24-48 (36 recomended)
Max pulse current (5) (mA) 1440
Max duty-cycle (%) 10
Max pulse duration (ms) 10
Connector Flying leads
Cable length (mm) 1000
Mechanical specifications
Outer diameter (mm) 192.0
Inner diameter (mm) 100.0
Height (mm) 39.6
Mass (g) 651
Environmental specifications
Operating temperature (°C) 0-45
Operating relative humidity (%) 20-85, non condensing
Eye safety
Risk group according to CEI EN 62471:2010 Exempt

Last update 04 Aug 2023

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
SLDPRT
