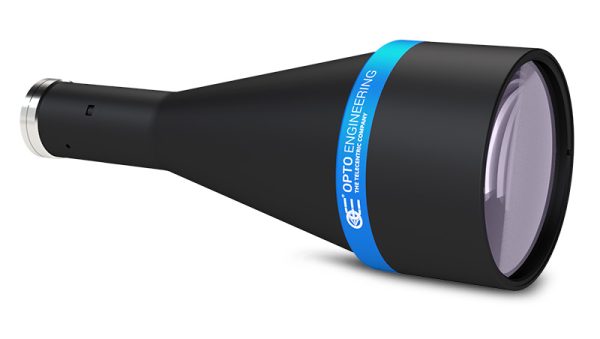

TC1MHR064-C
Specifications
Downloads
Compatible products
Main optical specifications
Magnification (x) 0.166
Image circle diameter (mm) 13.3
Max sensor size 1/1.2″
Object field of view
1/1.8" (mm × mm) 42.95 x 32.11
2/3" (mm × mm) 51.20 x 42.71
1/1.2" (mm × mm) 68.37 x 42.95
Advanced optical specifications
Working distance (1) (mm) 181.9
Working ƒ/N (2) 8
Telecentricity typical (max) (3) (deg) <0.08 (0.10)
Distortion typical (max) (4) (%) <0.08 (0.10)
Depth of field (5) (mm) 15.00
Resolution (6) (μm) 31
Mechanical specifications
Mount C
Phase adjustment (7) Yes
Length (8) (mm) 259.8
Front diameter (mm) 100
Mass (g) 1046

Last update 22 May 2024

REACH

Notes

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within +/- 3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
  6. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  7. Indicates the availability of an integrated camera phase adjustment feature.
  8. Measured from the front end of the mechanics to the camera flange.

Ordering information

It's easy to select the right lens for your application: our models are coded as TC1MHRyyy-x where yyy refers to the width of the object FOV in mm and -x refers to the mount option:
-C for C-mount
For example, TC1MHR064-C for a C-mount TC1MHR064 lens.
Customized mounts are also available upon request.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
Back focal adjustment

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
SLDPRT
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA23-GM-10C
Area scan camera 1936 x 1216 MP, Sony IMX249, CMOS Global shutter, 1/1.2", Mono, 1 GigE, POE, C mount
ITA23-GC-10C
Area scan camera 1936 x 1216 MP, Sony IMX249, CMOS Global shutter, 1/1.2", Color, 1 GigE, POE, C mount
ITA124-GM-20C
Area scan camera 4128 x 3008 MP, Sony IMX545, CMOS Global shutter, 1/1.1", Mono, 1 GigE, POE, C mount
ITA124-GC-20C
Area scan camera 4128 x 3008 MP, Sony IMX545, CMOS Global shutter, 1/1.1", Color, 1 GigE, POE, C mount
LTCLHP064-R
Telecentric HP illuminator, beam diameter 80 mm, red, 625 nm
LTCLHP064-G
Telecentric HP illuminator, beam diameter 80 mm, green, 525 nm
LTCLHP064-B
Telecentric HP illuminator, beam diameter 80 mm, blue, 460 nm
LTCLHP064-W
Telecentric HP illuminator, beam diameter 80 mm, white, 6000 K
LTRN064RD
Ring LED illuminator, inner diameter 100.0 mm, straight type, red, 630 nm
LTRN064GR
Ring LED illuminator, inner diameter 100.0 mm, straight type, green, 525 nm
LTRN064BL
Ring LED illuminator, inner diameter 100.0 mm, straight type, blue, 470 nm
LTRN064NW
Ring LED illuminator, inner diameter 100.0 mm, straight type, white, 6300 K
LTRN064IR
Ring LED illuminator, inner diameter 100.0 mm, straight type, IR, 850 nm
LTRN064UV
Ring LED illuminator, inner diameter 100.0 mm, straight type, UV, 365 nm
CMBS series
CMBS series
45° beam splitters
CMBS064
45° beam splitter with mount for 100.0 mm clamping diameter optics
CMMR series
CMMR series
45° first surface mirrors
CMMR064
45° first surface mirror for 100.0 mm clamping diameter optics
WI series
WI series
Protective windows for lenses
WI064
Protective window for 100 mm clamping diameter optics
CMHO series
CMHO series
Clamping mechanics for lenses
CMHO064
Clamping mechanics for TCxx064 lenses and LTCLHP064-X illuminators
PT064-096
Calibration pattern
PT064-096-C
Checkerboard calibration pattern for telecentric lens with certificate
PT064-096-P
Calibration pattern
CMTH064
Precision alignment mechanics for telecentric setup
FTBP470TC
Optical filter, band pass, blue
FTBP525TC
Optical filter, band pass, green
FTBP635TC
Optical filter, band pass, red
FTBP660TC
Optical filter, band pass, dark red
FTBP850TC
Optical filter, band pass, IR
FTBP880TC
Optical filter, band pass, IR
FTSP450TC
Optical filter, short pass, dark blue
FTSP500TC
Optical filter, short pass, blue
FTSP570TC
Optical filter, short pass, cyan
FTSP700TC
Optical filter, UV+NIR cut off, VIS
FTLP510TC
Optical filter, long pass, yellow
FTLP550TC
Optical filter, long pass, orange
FTLP590TC
Optical filter, long pass, red
FTLP640TC
Optical filter, long pass, dark red
FTLP920TC
Optical filter, long pass, NIR
FTPR032TC
Optical filter, linear polarizing, VIS
CMWF series
CMWF series
Holders for WI series
CMWF064
Holder for WI series, clamping diameter 100 mm
