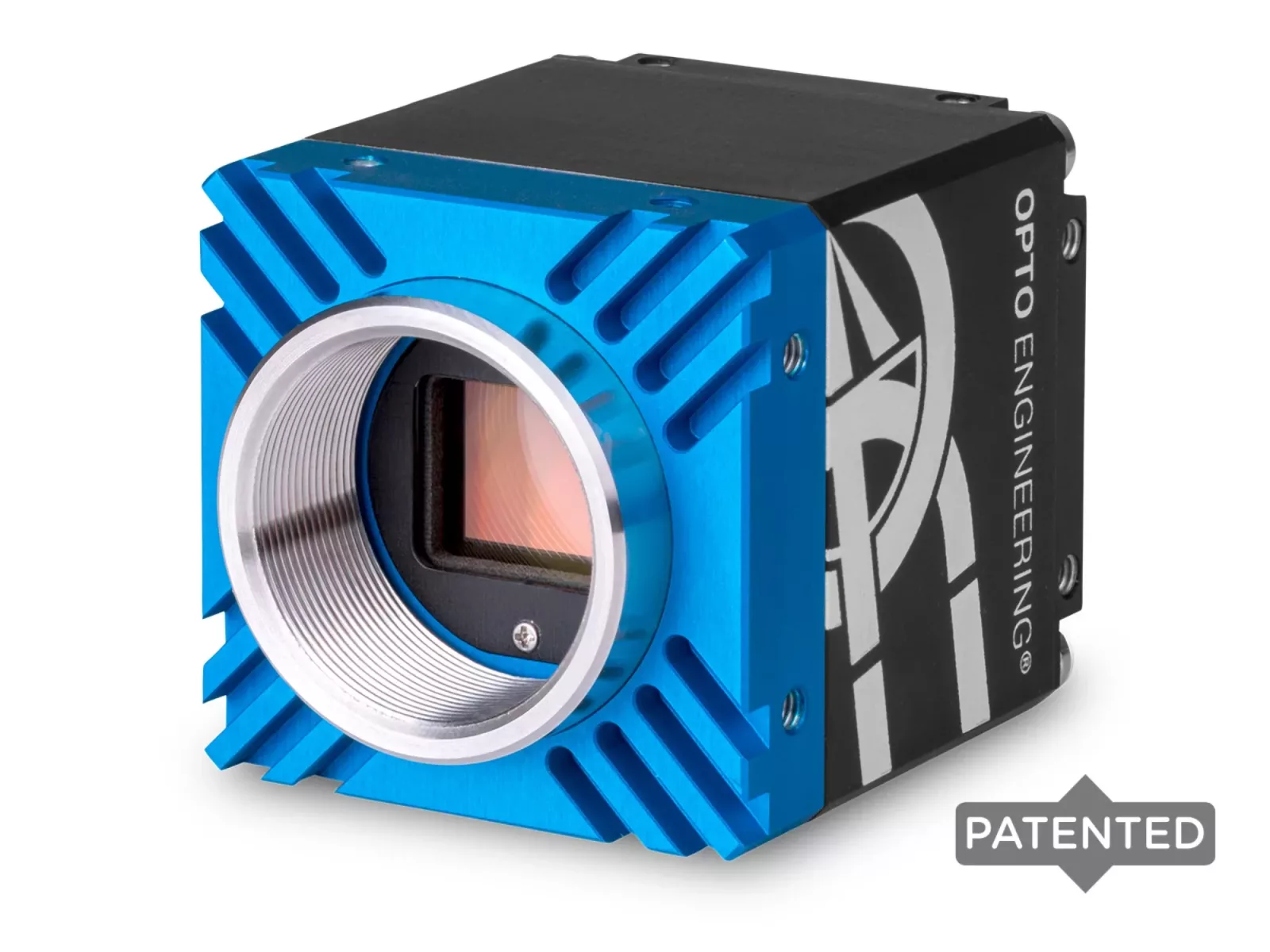

ITALA G series
Industrial GigE vision PoE cameras made in Italy
PRODUCT RANGE EXPANSION:
New Sony sensors available:
- 0.4 to 2.4 MP (IMX287, IMX273, IMX392)
- IV generation (IMX547, IMX546, IMX545, IMX542, IMX541, IMX540)
ITALA G is a series of GigE vision industrial cameras designed and manufactured in Italy by Opto Engineering®. Combining a robust and reliable design with excellent value for money, these cameras are suitable for any imaging application.
The ITALA G series integrates high quality Sony Pregius and Pregius S CMOS sensors ranging from the most commonly used II generation with 3.45 µm pixels to the most recent IV generation with 2.74 µm pixels.
Key advantages
Cameras designed and manufactured in Italy by Opto Engineering®.
- Aluminum body & steel lens mount.
- Shock & Vibration certified.
- Wide temperature range.
- Large on-board image buffer
Never miss a frame and take advantage of burst mode acquisition. - High performance FPGA
Additional on-board processing functions can be easily implemented.
Isolated PoE supply
Simplified cable harness with data and power over a single cable.
Broad Range of I/Os
Industry standard Hirose 12 pin connector for a broad range of I/Os and special functions.
Serial Communication
Combo RS232/485 transceiver for maximum flexibility.
- A 5-years warranty
- Dedicated support for the integration directly from the manufacturer
- Fast shipping service from Italy within 2 days *
Discover ITALA® features
Guaranteed quality
All the features of our cameras are check to ensure perfect operation.
Each camera undergoes severe testing to avoid possible early failures.
We check the sensor alignment of each camera to ensure maximum performance.
Each camera is tested according to the EMVA1288 standard.
Industries
* This service enables the customer to quickly receive ITALA® series cameras.
Opto Engineering® undertakes to ship the camera from its warehouse located in Italy within the next 2 working days after sending the order confirmation, according to the shipping and payment terms agreed with the customer.
To benefit from the fast shipping service, it is necessary to submit an order showing, in addition to the camera part number, the SSR-ITALA code. This service is subject to a fee: please contact our sales engineers for more information.
We are committed to providing the best possible service to our customers. For this reason, we are working to make our fast shipping service available on as many ITALA® cameras as possible.
The service is subject to the actual availability of the requested product in Opto Engineering® warehouse in Italy and is currently valid for shipments to the following countries:
Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Luxembourg, Moldova, Netherlands, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom.
| Sensor specifications | Camera specifications | Connectivity and electrical specifications | Mechanical specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part number |
Megapixel | Resolution | Sensor format |
Pixel size |
Sensor model |
Sensor type |
Shutter | Chroma | Frame rate |
Data interface |
Power supply |
Mount | |
| (μm) | (fps) | (V) | |||||||||||
| 1 | |||||||||||||
|
Select 2 or more models to compare specs
Start comparing
Clear selection
|
|||||||||||||
| ITA04-GM-10C | 0.4 | 728 x 544 | 1/2.9" | 6.90 | IMX287 | CMOS | Global | Mono | 296.7 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA04-GC-10C | 0.4 | 728 x 544 | 1/2.9" | 6.90 | IMX287 | CMOS | Global | Color | 98.9 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA16-GM-10C | 1.6 | 1456 x 1088 | 1/2.9" | 3.45 | IMX273 | CMOS | Global | Mono | 74.2 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA16-GC-10C | 1.6 | 1456 x 1088 | 1/2.9" | 3.45 | IMX273 | CMOS | Global | Color | 24.7 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA24-GM-10C | 2.4 | 1936 x 1216 | 1/2.3" | 3.45 | IMX392 | CMOS | Global | Mono | 49.9 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA24-GC-10C | 2.4 | 1936 x 1216 | 1/2.3" | 3.45 | IMX392 | CMOS | Global | Color | 16.6 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA32-GM-10C | 3.2 | 2064 x 1544 | 1/1.8" | 3.45 | IMX265 | CMOS | Global | Mono | 36.9 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA32-GC-10C | 3.2 | 2064 x 1544 | 1/1.8" | 3.45 | IMX265 | CMOS | Global | Color | 12.3 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA50-GM-10C | 5.0 | 2464 x 2056 | 2/3" | 3.45 | IMX264 | CMOS | Global | Mono | 23.2 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA50-GC-10C | 5.0 | 2464 x 2056 | 2/3" | 3.45 | IMX264 | CMOS | Global | Color | 7.7 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA51-GM-20C | 5.1 | 2472 x 2064 | 1/1.8" | 2.74 | IMX547 | CMOS | Global | Mono | 23.0 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA51-GC-20C | 5.1 | 2472 x 2064 | 1/1.8" | 2.74 | IMX547 | CMOS | Global | Color | 7.7 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA81-GM-20C | 8.1 | 2856 x 2848 | 2/3" | 2.74 | IMX546 | CMOS | Global | Mono | 14.4 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA81-GC-20C | 8.1 | 2856 x 2848 | 2/3" | 2.74 | IMX546 | CMOS | Global | Color | 4.8 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA89-GM-10C | 8.9 | 4112 x 2176 | 1" | 3.45 | IMX267 | CMOS | Global | Mono | 13.1 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA89-GC-10C | 8.9 | 4112 x 2176 | 1" | 3.45 | IMX267 | CMOS | Global | Color | 4.4 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA120-GM-10C | 12.3 | 4112 x 3008 | 1.1" | 3.45 | IMX304 | CMOS | Global | Mono | 9.5 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA120-GC-10C | 12.3 | 4112 x 3008 | 1.1" | 3.45 | IMX304 | CMOS | Global | Color | 3.2 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA124-GM-20C | 12.4 | 4128 x 3008 | 1/1.1" | 2.74 | IMX545 | CMOS | Global | Mono | 9.5 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA124-GC-20C | 12.4 | 4128 x 3008 | 1/1.1" | 2.74 | IMX545 | CMOS | Global | Color | 3.2 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA162-GM-20C | 16.2 | 5328 x 3040 | 1.1" | 2.74 | IMX542 | CMOS | Global | Mono | 7.3 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA162-GC-20C | 16.2 | 5328 x 3040 | 1.1" | 2.74 | IMX542 | CMOS | Global | Color | 2.4 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA168-GM-10J | 16.8 | 5472 x 3084 | 4/3" | 3.45 | IMX387 | CMOS | Global | Mono | 7.0 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | M42x1 FD 12 |
Quote
|
| ITA168-GC-10J | 16.8 | 5472 x 3084 | 4/3" | 3.45 | IMX387 | CMOS | Global | Color | 2.3 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | M42x1 FD 12 |
Quote
|
| ITA196-GM-10J | 19.6 | 4432 x 4436 | 4/3" | 3.45 | IMX367 | CMOS | Global | Mono | 6.0 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | M42x1 FD 12 |
Quote
|
| ITA196-GC-10J | 19.6 | 4432 x 4436 | 4/3" | 3.45 | IMX367 | CMOS | Global | Color | 2.0 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | M42x1 FD 12 |
Quote
|
| ITA204-GM-20C | 20.4 | 4512 x 4512 | 1.1" | 2.74 | IMX541 | CMOS | Global | Mono | 5.8 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA204-GC-20C | 20.4 | 4512 x 4512 | 1.1" | 2.74 | IMX541 | CMOS | Global | Color | 1.9 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA246-GM-20C | 24.6 | 5328 x 4608 | 1.2" | 2.74 | IMX540 | CMOS | Global | Mono | 4.8 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA246-GC-20C | 24.6 | 5328 x 4608 | 1.2" | 2.74 | IMX540 | CMOS | Global | Color | 1.6 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | C |
Quote
|
| ITA315-GM-10J | 31.5 | 6480 x 4860 | APS-C | 3.45 | IMX342 | CMOS | Global | Mono | 3.8 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | M42x1 FD 12 |
Quote
|
| ITA315-GC-10J | 31.5 | 6480 x 4860 | APS-C | 3.45 | IMX342 | CMOS | Global | Color | 1.3 | 1 GigE | 12-24, PoE (IEEE 802.3af class 2) | M42x1 FD 12 |
Quote
|
Last update 25 May 2023
Notes
- Color-model's fps are calculated using RGB8 pixel format
- Measured with 24V power supply
- To be measured after pre-series production
- Case temperature, measured on the front part of the camera body
- Ambient temperature
Itala SDK
The ITALA SDK (Software Development Kit) is a robust and easy-to-use C++ API designed from scratch to support all Opto Engineering GigE Vision cameras. The compliancy to the GenICam standard grants easy and precise configuration and control of cameras thanks to GenTL. Moreover, the ITALA SDK features up to date SFNC nomenclature and sup- ports event interface to create deterministic camera operation and chunk data to provide meta-data on the acquisition
Key features
- Robust, easy to use C++ API
- Extensive documentation with practical code examples showing common and advanced use cases
- Standardized camera control via familiar GenApi implementation
- Up-to-date SFNC feature names
- Event interface and chunk data support
- Utilities for camera network configuration and firmware updates
- NDIS filter driver improves streaming stability and CPU usage
- Fully featured GUI viewer for camera control, streaming and monitoring
- Camera settings download from device to file and vice versa
Tools
Furthermore, our cameras’ firmware represents the industry’s state-of-the-art by providing a full range of functions:
- Burst Acquisition
- Chunk data
- Debayering
- White balance
- Color correction (matrix)
- Auto-exposure
- Auto-gain
