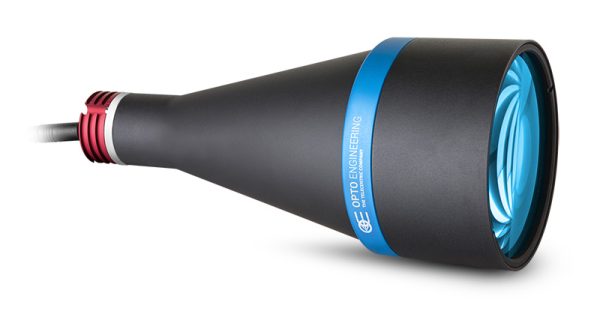

LTCLHP064-B

Specifications

Lighting specifications
Beam diameter (mm) 80
Working distance range (mm) 120 - 240
Light color, peak wavelength (1) blue, 460 nm
Spectral FWHM (nm) 25
Electrical specifications
Supply voltage (2) (V) 12-24
Max power consumption (W) 2.5
LED forward voltage typical (max) (3) (V) 3.3 (4.0)
Max LED forward current (4) (mA) 350
Max pulse current (5) (mA) 2000
Connector M8
Cables CB244P1500 included
Mechanical specifications
Length (6) (mm) 231.6
Front diameter (mm) 100.0
Mass (g) 909
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
Installation Indoor use only
Eye safety
Risk group according to CEI EN 62471:2010 Risk group 2

Last update 15 Apr 2022

CE
ROHS
REACH
WEEE

Notes

  1. Opto Engineering® recommends green light for high precision measurement applications
  2. Tolerance ± 10%
  3. At max forward current. Tolerance is ± 0.06V on forward voltage measurements
  4. In continuous mode (not pulsed)
  5. At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
  6. Nominal value, with no spacers in place
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Minimun length: 6 characters
Required field
captcha
Required field

Compatible products

Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
TCCR4M064-C
Telecentric CORE lens for 4/3″ sensors, magnification 0.275x, C mount, WD 181.9 mm
TCCR4M064-F
Telecentric CORE lens for 4/3″ sensors, magnification 0.275x, F mount, WD 181.9 mm
TCCR4M064-E
Telecentric CORE lens for 4/3″ sensors, magnification 0.275x, M42x1 FD 16 mount, WD 181.9 mm
TC4MHR064-C
High resolution telecentric lens for 4/3″ sensors, magnification 0.275x, C mount
TC4MHR064-F
High resolution telecentric lens for 4/3″ sensors, magnification 0.275x, F mount
TC4MHR064-E
High resolution telecentric lens for 4/3″ sensors, magnification 0.275x, M42x1 FD 16 mount
TC3MHR064-C
High resolution telecentric lens for 1.1" sensors, magnification 0.227x, C mount
TC1MHR064-C
High resolution telecentric lens for 1/1.2" sensors, magnification 0.166x, C mount
TC12K064
Telecentric lens for 12k and 16k line scan cameras, magnification 0.960x, M72x0.75 FD 6.56 mount
TC16M064
Telecentric lens for 35 mm Full Frame sensors, magnification 0.561x, mount F
TC16M064-Q
Telecentric lens for 35 mm Full Frame sensors, magnification 0.561x, mount M58x0.75 FD 6.56
TC16M064-K
Telecentric lens for 35 mm Full Frame sensors, magnification 0.561x, mount M58x0.75 FD 12.96
TC12M064-F
High resolution telecentric lens, magnification 0.465x, WD 157.6 mm, F mount
TC12M064-J
High resolution telecentric lens, magnification 0.465x, WD 157.6 mm, M42x1 FD 12 mount
TCCR12064
Bi-telecentric CORE lens for 1/2" detectors, magnification 0.100x, C-mount
TCCR23064
Bi-telecentric CORE lens for 2/3" detectors, magnification 0.138x, C-mount
TC13064
Bi-telecentric lens for 1/3" sensors, magnification 0.074 x, C-mount
TC12064
Bi-telecentric lens for 1/2" sensors, magnification 0.100 x, C-mount
TC23064
Bi-telecentric lens for 2/3" sensors, magnification 0.138 x, C-mount
CB series
CB series
Cables
CB244P1500
Power cable, side 1 M8 connector straight, side 2 cable end - 2 m - type 1 labels
CB244P1500L
Power cable, side 1 M8 connector angled, side 2 cable end - 2 m - type 1 labels
LED1W-B
Replacement LED source, blue, 460 nm
LTIC series
LTIC series
LED lighting controllers
LTIC1CH-A1-4
Analogue lighting controller unit, 4A, 24V
CMTH064
Precision alignment mechanics for TCxx064, TCxMHR064-x, LTCLHP064-x
LTSCHP1W-B
Replacement LED module, blue
CMHO series
CMHO series
Clamping mechanics for lenses
CMHO064
Clamping mechanics for TCxx064 lenses and LTCLHP064-X illuminators
WI series
WI series
Protective windows for lenses
WI064
Protective window for 100 mm clamping diameter optics
CMMR series
CMMR series
45° first surface mirrors
CMMR064
45° first surface mirror for 100.0 mm clamping diameter optics
CPDPH01
Diffuser cap for telecentric illuminators, diffusive diameter 2.8 mm
CMBS series
CMBS series
45° beam splitters
CMBS064
45° beam splitter with mount for 100.0 mm clamping diameter optics
