The accurate alignment of optical components is crucial to the accuracy of a measurement system. In addition to the stability of the optical components, the system mechanical design must ensure that the optical axis is orthonormal to the measurement plane.
For this purpose Opto Engineering® supplies CMHO series clamping mechanics, compatible with our telecentric lenses and collimated illuminators.
Three-point mounting grants very precise and stable alignment of the optical components, also making the assembly process quick and simple.
Discover more
We offer imaging solutions for every business
Please wait
Unable to process your request
Back to models
| Mechanical specifications | Compatible products | ||||||
|---|---|---|---|---|---|---|---|
| Part number |
Length | Width | Height | Optical axis height |
Compatible products |

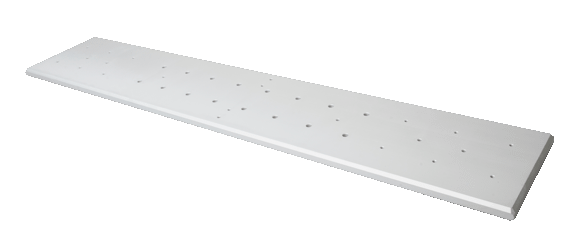

Compatible CMPT |
|
| (mm) | (mm) | (mm) | (mm) | ||||
|
Select 2 or more models to compare specs
Start comparing
Clear selection
|
|||||||
| CMHO023 | 20.0 | 53.0 | 66.5 | 40.0 | TC2300y, TC23012, TC4M00y-x, LTCLHP023-x | CMPT004-009 |
Quote
|
| CMHO016 | 20.0 | 62.5 | 71.3 | 40.0 | TCxx016, TCxMHR016-x, TCxMHRP016-x, LTCLHP016-x, TCLWD series | CMPT016-024 |
Quote
|
| CMHO024 | 20.0 | 62.5 | 71.3 | 40.0 | TCxx024, TCxMHR024-x, TCxMHRP024-x, LTCLHP024-x | CMPT016-024 |
Quote
|
| CMHO036 | 110.0 | 97.0 | 125.5 | 80.0 | TCxx036, TCxMHR036-x, TCxMHRP036-x, TC16M036-x, LTCLHP036-x | CMPT036 |
Quote
|
| CMHO048 | 140.0 | 111.0 | 132.5 | 80.0 | TCxx048, TCxMHR048-x, TCxMHRP048-x, TC16M048-x, LTCLHP048-x | CMPT048 |
Quote
|
| CMHO056 | 162.0 | 116.0 | 135.0 | 80.0 | TCxx056, TCxMHR056-x, TCxMHRP056-x, TC16M056-x, LTCLHP056-x | CMPT056 |
Quote
|
| CMHO064 | 175.0 | 137.0 | 145.0 | 80.0 | TCxx064, TCxMHR064-x, TCxMHRP064-x, TC16M064-x, LTCLHP064-x | CMPT064 |
Quote
|
| CMHO080 | 230.0 | 152.0 | 153.0 | 80.0 | TC23072, TCxx080, TCxMHR080-x, TCxMHRP080-x, TC16M080-x, LTCLHP080-x, PCxx030XS | CMPT080 |
Quote
|
| CMHO096 | 265.0 | 179.0 | 186.5 | 100.0 | TC23085, TCxx096, TCxMHR096-x, TCxMHRP096-x, TC16M096-x, LTCLHP096-x | CMPT096 |
Quote
|
| CMHO120 | 204.0 | 220.0 | 240.0 | 130.0 | TC23110, TCxx120, TCxMHR120-x, TCxMHRP120-x, TC16M120-x, LTCLHP120-x | - |
Quote
|
| CMHO144 | 204.0 | 234.0 | 247.0 | 130.0 | TC23130, TCxx144, TCxMHR144-x, TCxMHRP144-x, TC16M144-x, LTCLHP144-x | - |
Quote
|
| CMHO192R | 255.0 | 330.0 | 303.1 | 173.1 | TC23172, TCxx192, TCxMHR192-x, TCxMHRP192-x, TC16M192-x, TC12K192, LTCLHP192-x | - |
Quote
|
| CMHO240R | 170.0 | 410.0 | 377.2 | 216.2 | TC23200, TC23240, TCxMHR240-x, TCxMHRP240-x, TC16M240-x, LTCLHP240-x, TC12K240 | - |
Quote
|
| CMHOTC12K064 | 486.0 | 152.0 | 150.0 | 85.0 | TC12K064 | - |
Quote
|
| CMHOTC12K080 | 486.0 | 152.0 | 185.0 | 85.0 | TC12K080 | - |
Quote
|
| CMHOTC12M096 | 265.0 | 179.0 | 186.5 | 100.0 | TC12M096-x | CMPT096 |
Quote
|
| CMHOTC16M009 | 143.0 | 65.5 | 81.3 | 50.0 | TC16M009-x | - |
Quote
|
| CMHOTC16M012 | 143.0 | 65.5 | 81.3 | 50.0 | TC16M012-x | - |
Quote
|
| CMHOTC16M018 | 143.0 | 65.5 | 81.3 | 50.0 | TC16M018-x | - |
Quote
|
| CMHOMC12K025 | 140.0 | 111.0 | 132.5 | 80.0 | MC12K008-025 | - |
Quote
|
| CMHOMC12K067 | 140.0 | 111.0 | 132.5 | 80.0 | MC12K050-067 | - |
Quote
|
| CMHOMC12K200 | 140.0 | 111.0 | 132.5 | 80.0 | MC12K100-200 | - |
Quote
|
| CMHOPCCD | 20.0 | 76.0 | 76.0 | 92.0 | PCCDxxx | - |
Quote
|
| CMHORBCR048 | 292.0 | 117.0 | 160.5 | 105.0 | TCCRxx048, TCCRxM048-x, LTCLCR048-x | - |
Quote
|
Last update 28 Sep 2022
