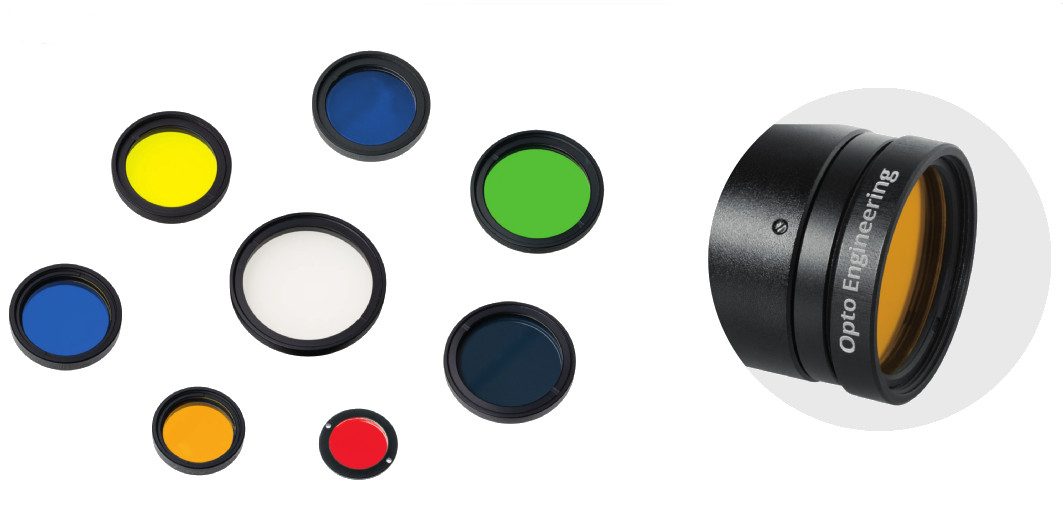

FTLP510TC
Specifications
Downloads
Compatible products
Main optical specifications
Type long pass
Light color yellow
Wavelength range (nm) 515 - 1100
Cut-on 50% transmittance (1) (nm) 515
Cut-off 50% transmittance (1) (nm) -
Spectral FWHM (1) (nm) -
Mechanical specifications
Filter thread TC insert
Outer diameter (mm) 24.5
Clear aperture (mm) 15.0

Last update 13 Jun 2024

REACH

Notes

  1. Tolerance +/- 10 nm

Additional notes

Except TC23004, TC23007, TC23009, TC23012 and all TC13xxx lenses for 1/3" sensor. Before purchasing a TC filter, please check its mechanical compatibility with the selected lens. Using the filter may cause some vignetting, depending on the size of the sensor.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
SLDPRT
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
TC23016
Bi-telecentric lens for 2/3″ sensors, magnification 0.528 x, C-mount
TC23024
Bi-telecentric lens for 2/3″ sensors, magnification 0.350 x, C-mount
TC23036
Bi-telecentric lens for 2/3″ sensors, magnification 0.243 x, C-mount
TC23048
Bi-telecentric lens for 2/3″ sensors, magnification 0.184 x, C-mount
TC23056
Bi-telecentric lens for 2/3″ sensors, magnification 0.157 x, C-mount
TC23064
Bi-telecentric lens for 2/3″ sensors, magnification 0.138 x, C-mount
TC23072
Bi-telecentric lens for 2/3″ sensors, magnification 0.122 x, C-mount
TC23080
Bi-telecentric lens for 2/3″ sensors, magnification 0.110 x, C-mount
TC23085
Bi-telecentric lens for 2/3″ sensors, magnification 0.104 x, C-mount
TC23096
Bi-telecentric lens for 2/3″ sensors, magnification 0.093 x, C-mount
TC23110
Bi-telecentric lens for 2/3″ sensors, magnification 0.079 x, C-mount
TC23120
Bi-telecentric lens for 2/3″ sensors, magnification 0.072 x, C-mount
TC23130
Bi-telecentric lens for 2/3″ sensors, magnification 0.068 x, C-mount
TC23144
Bi-telecentric lens for 2/3″ sensors, magnification 0.061 x, C-mount
TC23172
Bi-telecentric lens for 2/3″ sensors, magnification 0.051 x, C-mount
TC23192
Bi-telecentric lens for 2/3″ sensors, magnification 0.046 x, C-mount
TC23200
Bi-telecentric lens for 2/3″ sensors, magnification 0.044 x, C-mount
TC23240
Bi-telecentric lens for 2/3″ sensors, magnification 0.037 x, C-mount
TCCR23048
Bi-telecentric CORE lens for 2/3″ detectors, magnification 0.184x, C-mount
TCCR23056
Bi-telecentric CORE lens for 2/3″ detectors, magnification 0.157x, C-mount
TCCR23064
Bi-telecentric CORE lens for 2/3″ detectors, magnification 0.138x, C-mount
TCCR23080
Bi-telecentric CORE lens for 2/3″ detectors, magnification 0.110x, C-mount
TCCR23096
Bi-telecentric CORE lens for 2/3″ detectors, magnification 0.093x, C-mount
TCCR23120
Bi-telecentric CORE lens for 2/3″ detectors, magnification 0.072x, C-mount
TC1MHR016-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.639x, C mount
TC1MHR024-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.424x, C mount
TC1MHR036-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.295x, C mount
TC1MHR048-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.222x, C mount
TC1MHR056-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.190x, C mount
TC1MHR064-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.166x, C mount
TC1MHR080-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.134x, C mount
TC1MHR096-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.114x, C mount
TC1MHR120-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.087x, C mount
TC1MHR144-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.074x, C mount
TC1MHR192-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.056x, C mount
TC1MHR240-C
High resolution telecentric lens for 1/1.2″ sensors, magnification 0.045x, C mount
TCCR1M048-C
Telecentric CORE lens for 1/1.2″ sensors, magnification 0.222x, C mount, WD 132.4 mm
TCCR1M056-C
Telecentric CORE lens for 1/1.2″ sensors, magnification 0.190x, C mount, WD 157.8 mm
TCCR1M064-C
Telecentric CORE lens for 1/1.2″ sensors, magnification 0.166x, C mount, WD 181.9 mm
TCCR1M080-C
Telecentric CORE lens for 1/1.2″ sensors, magnification 0.134x, C mount, WD 226.8 mm
TCCR1M096-C
Telecentric CORE lens for 1/1.2″ sensors, magnification 0.114x, C mount, WD 278.6 mm
TCCR1M120-C
Telecentric CORE lens for 1/1.2″ sensors, magnification 0.087x, C mount, WD 334.6 mm
