| Lighting specifications | ||
| Light color, peak wavelength | red, 625 nm | |
| Spectral FWHM | (nm) | 20 |
| Diffusive diameter | (mm) | - |
| Electrical specifications | ||
| Supply voltage (1) | (V) | 12-24 |
| Max power consumption | (W) | 2.5 |
| LED forward voltage typical (max) (2) | (V) | 2.4 (3) |
| Max LED forward current (3) | (mA) | 350 |
| Max pulse current (4) | (mA) | 2000 |
| Connector | M8 | |
| Cables | CB244P1500 included | |
| Mechanical specifications | ||
| Diameter | (mm) | 38.5 |
| Length | (mm) | 46.1 |
| Environmental specifications | ||
| Operating temperature | (°C) | 0-40 |
| Storage temperature | (°C) | 0-50 |
| Operating relative humidity | (%) | 20-85, non condensing |
| Installation | Indoor use only | |
| Eye safety | ||
| Risk group according to CEI EN 62471:2010 | Exempt | |
Last update 23 Jul 2024
Notes
- Tolerance ± 10%
- At max forward current. Tolerance is ± 0.06V on forward voltage measurements
- In continuous mode (non-pulsed)
- At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
TCCX050-G
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 0.500x, green, 525 nm
TCCX050-W
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 0.500x, white, 6000 K
TCCX066-G
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 0.660x, green, 525 nm
TCCX066-W
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 0.660x, white, 6000 K
TCCX075-G
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 0.750x, green, 525 nm
TCCX075-W
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 0.750x, white, 6000 K
TCCX100-G
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 1.000x, green, 525 nm
TCCX100-W
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 1.000x, white, 6000 K
TCCX150-G
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 1.500x, green, 525 nm
TCCX150-W
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 1.500x, white, 6000 K
TCCX250-G
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 2.500x, green, 525 nm
TCCX250-W
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 2.500x, white, 6000 K
TCCX350-G
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 3.500x, green, 525 nm
TCCX350-W
Coaxial telecentric lens for 2/3″ sensors, WD 132.3 mm, magnification 3.500x, white, 6000 K
LTCLHP023-R
Telecentric HP illuminator, beam diameter 16 mm, red, 625 nm
LTCLHP016-R
Telecentric HP illuminator, beam diameter 20 mm, red, 625 nm
LTCLHP024-R
Telecentric HP illuminator, beam diameter 30 mm, red, 625 nm
LTCLHP036-R
Telecentric HP illuminator, beam diameter 45 mm, red, 625 nm
LTCLHP048-R
Telecentric HP illuminator, beam diameter 60 mm, red, 625 nm
LTCLHP056-R
Telecentric HP illuminator, beam diameter 70 mm, red, 625 nm
LTCLHP064-R
Telecentric HP illuminator, beam diameter 80 mm, red, 625 nm
LTCLHP080-R
Telecentric HP illuminator, beam diameter 100 mm, red, 625 nm
LTCLHP096-R
Telecentric HP illuminator, beam diameter 120 mm, red, 625 nm
LTCLHP120-R
Telecentric HP illuminator, beam diameter 150 mm, red, 625 nm
LTCLHP144-R
Telecentric HP illuminator, beam diameter 180 mm, red, 625 nm
LTCLHP192-R
Telecentric HP illuminator, beam diameter 250 mm, red, 625 nm
LTCLHP240-R
Telecentric HP illuminator, beam diameter 300 mm, red, 625 nm
LTCLCR048-R
Telecentric CORE illuminator, beam dimensions Ø = 56, x = 50, red, 625 nm
LTCLCR056-R
Telecentric CORE illuminator, beam dimensions Ø = 74, x = 66, red, 625 nm
LTCLCR064-R
Telecentric CORE illuminator, beam dimensions Ø = 86, x = 67, red, 625 nm
LTCLCR080-R
Telecentric CORE illuminator, beam dimensions Ø = 98, x = 90, red, 625 nm
LTCLCR096-R
Telecentric CORE illuminator, beam dimensions Ø = 120, x = 99, red, 625 nm
LTCLCR120-R
Telecentric CORE illuminator, beam dimensions Ø = 156, x = 130, red, 625 nm
CPDPH01
Diffuser cap for telecentric illuminators, diffusive diameter 2.8 mm
CPDPH02
Diffuser cap for telecentric illuminators, diffusive diameter 0.8 mm
CPDPH03
Diffuser cap for telecentric illuminators, diffusive diameter 5.0 mm
CPDPH04
Diffuser cap for telecentric illuminators, diffusive diameter 12.0 mm
LED1W-R
Replacement LED source, red, 625 nm
CB244P1500
Power cable, side 1 M8 connector straight, side 2 cable end - 2 m - type 1 labels
CB244P1500L
Power cable, side 1 M8 connector angled, side 2 cable end - 2 m - type 1 labels
Request a quote
Add this product to the quote request list.

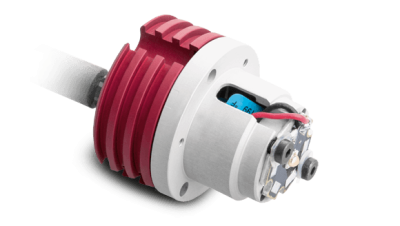

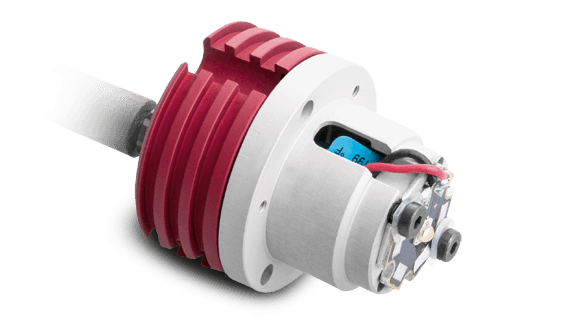

Product images
