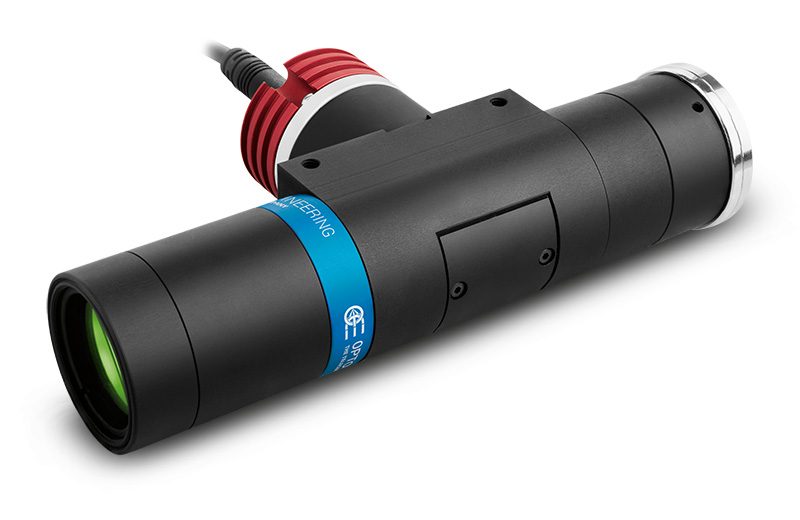

TCCX075-G

Specifications

Main optical specifications
Magnification (x) 0.750
Image circle diameter (mm) 11.0
Max sensor size 2/3″
Object field of view
1/3” (mm × mm) 6.40 x 4.80
1/2.5” (mm × mm) 7.60 x 5.71
1/2” (mm × mm) 8.53 x 6.40
1/1.8” (mm × mm) 9.51 x 7.11
2/3” (mm × mm) 11.33 x 9.45
Advanced optical specifications
Working distance (1) (mm) 132.3
Working ƒ/N (2) 12
Telecentricity typical (max) (3) (deg) < 0.04 (0.06)
Distortion typical (max) (4) (%) < 0.1 (0.2)
Field depth (5) (mm) 1.10
Resolution (6) (μm) 10
Lighting specifications
Light color, peak wavelength green, 525 nm
Spectral FWHM (nm) 40
Electrical specifications
Supply voltage (V) 12-24
Max power consumption (W) 2.5
LED voltage (7) (V) 3.3 (4.0)
LED current (8) (mA) 350
Max pulse current (9) (mA) 2000
Connector M8
Cables CB244P1500 included
Mechanical specifications
Mount C
Phase adjustment Yes
Length (10) (mm) 155.5
Front diameter (mm) 37.7
Mass (g) 519
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
Installation Indoor use only
Eye safety
Risk group according to CEI EN 62471:2010 Risk group 1

Last update 18 Nov 2022

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ± 3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
  6. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  7. At max forward current. Tolerance is ± 0.06V on forward voltage measurements.
  8. Used in continuous (not pulsed) mode.
  9. At pulse width <= 10 ms, duty cycle <= 10% condition. Built-in electronics board must be bypassed (see tech info).
  10. Measured from the front end of the mechanics to the camera flange.

Ordering information

It’s easy to select the right lens for your application: our part numbers are coded as TCCXxxx-y, where xxx defines the magnification (050 = 0.50, 066 = 0.66, 075 = 0.75, … ) and y defines the source color (“-G” stands for “green light”, “W” stands for “white light”). For instance, a TCCX050-G features a 0.50 magnification with a green light source.
