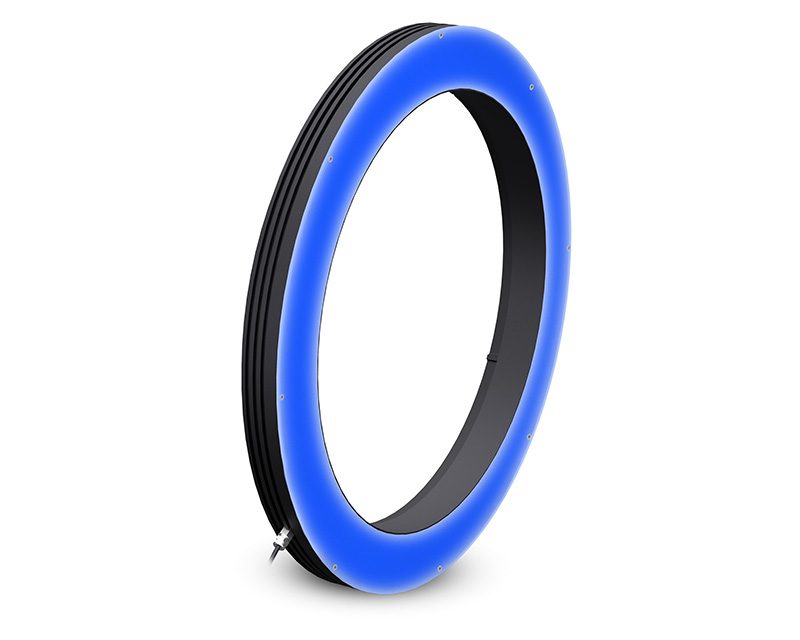

LTRN240BL
Specifications
Downloads
Compatible products
Lighting specifications
Illumination area outer diameter (mm) 398.0
Illumination area inner diameter (mm) 324.5
Emission angle (deg) 0
Optimal working distance (mm) 150-300
Number of LED rows 1
Light color, peak wavelength blue, 470 nm
Illuminance at minimum working distance (1) (lux) -
Illuminance at maximum working distance (1) (lux) -
Electrical specifications
Supply voltage (2) (V) 24
Current (mA) 2400
Power consumption (W) 56.7
Estimated MTBF (3) (hours) > 20000
Max pulse voltage (4) (V) 24-48 (36 recomended)
Max pulse current (5) (mA) 7200
Max duty-cycle (%) 10
Max pulse duration (ms) 10
Connector Flying leads
Cable length (mm) 1000
Mechanical specifications
Outer diameter (mm) 412.0
Inner diameter (mm) 322.0
Height (mm) 39.6
Mass (g) 3000
Environmental specifications
Operating temperature (°C) 0-45
Operating relative humidity (%) 20-85, non condensing
Eye safety
Risk group according to CEI EN 62471:2010 Exempt

Last update 04 Aug 2023

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.
