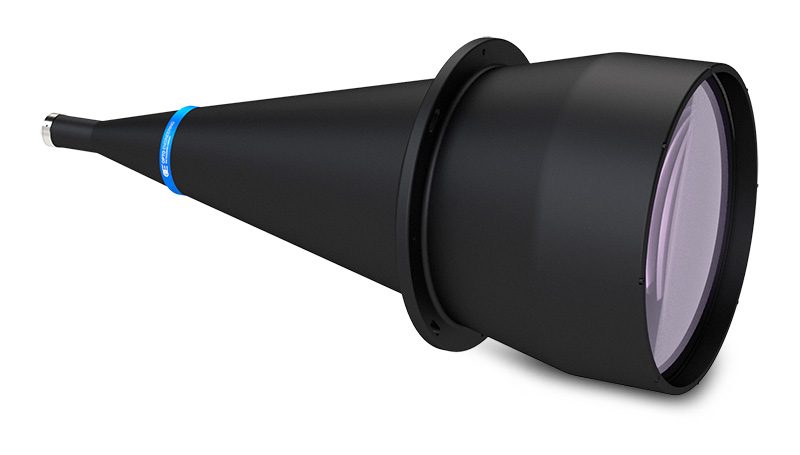

TC1MHR240-C

Specifications

Main optical specifications
Magnification (x) 0.045
Image circle diameter (mm) 13.3
Max sensor size 1/1.2″
Object field of view
1/1.8" (mm × mm) 158.44 x 118.44
2/3" (mm × mm) 188.89 x 157.56
1/1.2" (mm × mm) 252.22 x 158.44
Advanced optical specifications
Working distance (1) (mm) 492.9
Working ƒ/N (2) 8
Telecentricity typical (max) (3) (deg) <0.08 (0.10)
Distortion typical (max) (4) (%) <0.08 (0.10)
Field depth (5) (mm) 204.40
Resolution (6) (μm) 113
Mechanical specifications
Mount C
Phase adjustment (7) Yes
Length (8) (mm) 788.4
Front diameter (mm) 322
Mass (g) 18264

Last update 31 Mar 2022

REACH

Notes

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within +/- 3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
  6. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  7. Indicates the availability of an integrated camera phase adjustment feature.
  8. Measured from the front end of the mechanics to the camera flange.

Ordering information

It's easy to select the right lens for your application: our models are coded as TC1MHRyyy-x where yyy refers to the width of the object FOV in mm and -x refers to the mount option:
-C for C-mount
For example, TC1MHR064-C for a C-mount TC1MHR064 lens.
Customized mounts are also available upon request.
