| Main optical specifications | ||
| Magnification | (x) | 0.093 |
| Image circle diameter | (mm) | 11.0 |
| Max sensor size | 2/3″ | |
| Object field of view | ||
| 1/3” (1) | (mm × mm) | 51.61 x 38.71 |
| 1/2.5” (1) | (mm × mm) | 61.29 x 46.02 |
| 1/2” (1) | (mm × mm) | 68.82 x 51.61 |
| 1/1.8” (1) | (mm × mm) | 76.67 x 57.31 |
| 2/3” (1) | (mm × mm) | 91.40 x 76.24 |
| Advanced optical specifications | ||
| Working distance (2) | (mm) | 278.6 |
| Working ƒ/N (3) | 8 | |
| Telecentricity typical (max) (4) | (deg) | < 0.06 (0.08) |
| Distortion typical (max) (5) | (%) | < 0.04 (0.08) |
| Depth of field (6) | (mm) | 47.90 |
| Resolution (7) | (μm) | 55 |
| Mechanical specifications | ||
| Mount | C | |
| Phase adjustment (8) | No | |
| Length (9) | (mm) | 336.6 |
| Front diameter | (mm) | 143 |
| Mass | (g) | 2262 |
Last update 25 Nov 2022
Notes
- Object field of view (mm x mm). For the fields with the indication "Ø =", the image of a circular object of such diameter is fully inscribed into the detector.
- Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
- Working f-number (wf/N): the real f-number of a lens in operating conditions.
- Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
- Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
- At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
- Object side, calculated with the Rayleigh criterion with λ= 520 nm
- If not available, phase adjustment can be supplied upon request (except for TC23004, TC23007,TC23009, TC23012).
- Measured from the front end of the mechanics to the camera flange.
Ordering information
It's easy to select the right lens for your application: our part numbers are coded as TC xx yyy, where xx defines the camera sensor size (13 = 1/3″, 12 = 1/2″, 23 = 2/3″) and yyy refers to the horizontal field of view (FOV), in millimeters. For instance, a TC12064 features a field of view of 64 (x 48) mm with a 1/2″ camera sensor.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
COE-032-M-POE-040-IR-C
Area scan camera IMX265, CMOS, Global shutter, 2048 x 1536, 3.1 MP, 3.45 μm, 1/1.8", Mono, 37.5 fps, 1 GigE, POE, C-mount, AR filter
COE-032-C-POE-040-IR-C
Area scan camera IMX265, CMOS, Global shutter, 2048 x 1536, 3.1 MP, 3.45 μm, 1/1.8", Color, 37.5 fps, 1 GigE, POE, C-mount, IR cut filter
COE-106-M-POE-031-IR-C-2
Area scan camera MT9J003, CMOS, Rolling shutter, 3840 x 2748, 10.6 MP, 1.67 μm, 1/2.3", Mono, 7.0 fps, 1 GigE, POE, C-mount, AR filter
COE-106-C-POE-031-IR-C
Area scan camera MT9J003, CMOS, Rolling shutter, 3840 x 2748, 10.6 MP, 1.67 μm, 1/2.3", Color, 7.0 fps, 1 GigE, POE, C-mount, IR cut filter
RT-mvBC-X104iG
Camera with interface 1 GigE, sensor size 1/1.8", 3.2 MP, resolution 2064 x 1544, sensor name IMX265, sensor type CMOS
RT-mvBC-XD104hG
Camera with interface Dual GigE, sensor size 1/1.8", 3.2 MP, resolution 2064 x 1544, sensor name IMX252, sensor type CMOS
RT-mvBC-XD105aG
Camera with interface Dual GigE, sensor size 2/3", 5.1 MP, resolution 2464 x 2056, sensor name IMX250, sensor type CMOS
COE-016-M-USB-021-IR-C
Area scan camera IMX273, CMOS, Global shutter, 1440 x 1080, 1.6 MP, 3.5 μm, 1/2.9", Mono, 249.1 fps, USB 3.0, C-mount, AR
COE-016-C-USB-021-IR-C
Area scan camera IMX273, CMOS, Global shutter, 1440 x 1080, 1.6 MP, 3.5 μm, 1/2.9", Color, 249.1 fps, USB 3.0, C-mount, IR cut
LTBC174174-W
Continuos LED backlight, 174.5x174.5 mm illumination area, white, 6300 K
LTBC174174-G
Continuos LED backlight, 174.5x174.5 mm illumination area, green, 525 nm
LTCLHP096-R
Telecentric HP illuminator, beam diameter 120 mm, red, 625 nm
LTCLHP096-G
Telecentric HP illuminator, beam diameter 120 mm, green, 525 nm
LTCLHP096-B
Telecentric HP illuminator, beam diameter 120 mm, blue, 460 nm
LTCLHP096-W
Telecentric HP illuminator, beam diameter 120 mm, white, 6000 K
LTCLCR096-R
Telecentric CORE illuminator, beam dimensions Ø = 120, x = 99, red, 625 nm
LTCLCR096-G
Telecentric CORE illuminator, beam dimensions Ø = 120, x = 99, green, 525 nm
LTCLCR096-W
Telecentric CORE illuminator, beam dimensions Ø = 120, x = 99, white, 6000 K
LTRN096RD
Ring LED illuminator, inner diameter 143.0 mm, straight type, red, 630 nm
LTRN096GR
Ring LED illuminator, inner diameter 143.0 mm, straight type, green, 525 nm
LTRN096BL
Ring LED illuminator, inner diameter 143.0 mm, straight type, blue, 470 nm
LTRN096NW
Ring LED illuminator, inner diameter 143.0 mm, straight type, white, 6300 K
LTZZO170-75-3-R-24V
LED low angle ring light, 3 LED rows, outer diameter 175 mm, 75°, red, 630 nm, 1 channel, 24V
LTZZO170-75-3-G-24V
LED low angle ring light, 3 LED rows, outer diameter 175 mm, 75°, green, 525 nm, 1 channel, 24V
LTZZO170-75-3-B-24V
LED low angle ring light, 3 LED rows, outer diameter 175 mm, 75°, blue, 470 nm, 1 channel, 24V
LTZPFL160-00-6-R-24V
LED bar light, 6 LED rows, 160x26.3 illumination area, red, 630 nm, 24V
LTZPFL160-00-6-G-24V
LED bar light, 6 LED rows, 160x26.3 illumination area, green, 525 nm, 24V
LTZPFL160-00-6-B-24V
LED bar light, 6 LED rows, 160x26.3 illumination area, blue, 470 nm, 24V
LTZPFL160-00-6-W-24V
LED bar light, 6 LED rows, 160x26.3 illumination area, white, 6300 K, 24V
LTPRHP3W-R
LED pattern projector 3W, red, 625 nm
LTPRHP3W-G
LED pattern projector 3W, green, 525 nm
LTPRHP3W-B
LED pattern projector 3W, blue, 460 nm
LTPRHP3W-W
LED pattern projector 3W, white, 6000 K
CMMR096
45° first surface mirror for 143.0 mm clamping diameter optics
WI096
Protective window for 143 mm clamping diameter optics
CMHO096
Clamping mechanics for TCxx085, TCxx096 lenses and LTCLHP096-X illuminators
PT064-096
Calibration pattern
PT064-096-C
Checkerboard calibration pattern for telecentric lens with certificate
CMTH096
Precision alignment mechanics for TCxx096, TCxMHR096-x, LTCLHP096-x
Request a quote
Add this product to the quote request list.

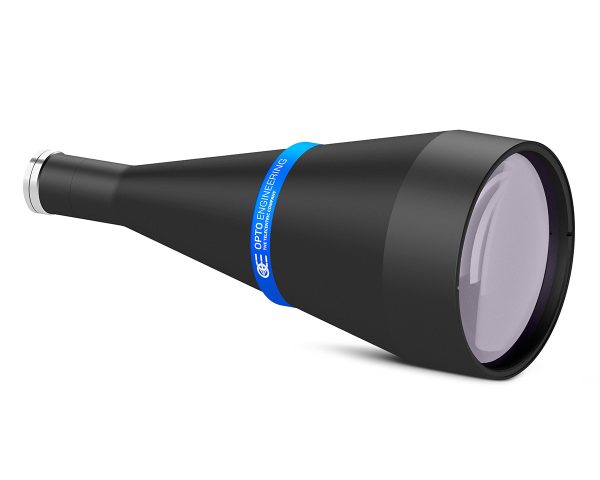

Product images
