PCCD series
Catadioptric lenses for 360° top and lateral view with just one camera
As of March 31, 2022, the eyepiece part of PCCD series will be changed: for further details, please refer to the Product Change Notification. Contact our sales engineers before this date to discuss any specific need.
High resolution PCCD2M for sensors up to 1” now available.
Key advantages
- 360° imaging of small objects
Parts down to 7.5 mm in diameter can be imaged - Extra wide lateral viewing angle
Object sides viewing angle approaches 45° - Compactness
The lens can be easily held and integrated in any system - Perfect chromatic correction
For RGB camera applications and color inspection
We offer imaging solutions for every business
| Main optical specifications | Field of view (diameter x height) | Advanced optical specifications | Mechanical specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part number |
Image circle diameter |
Max sensor size |
Minimum | Maximum | Working distance with minimum object |
Working distance with maximum object |
Working distance with PCCDLFAT |
Angle of view |
Working ƒ/N |
Mount | Diameter | Length | |
| (mm) | (mm × mm) | (mm × mm) | (mm) | (mm) | (mm) | (deg) | (mm) | (mm) | |||||
| 1 | 1 | 1 | 2 | 3 | |||||||||
|
Select 2 or more models to compare specs
Start comparing
Clear selection
|
|||||||||||||
| PCCD013 | 3.6 | 1/3″ | 7.5 x 5.0 | 25.0 x 17.0 | 53.0 | 28.0 | 5.0 | 35 | 16 | C | 143.0 | 111.2 |
Quote
|
| PCCD012 | 4.8 | 1/2″ | 7.5 x 5.0 | 25.0 x 17.0 | 53.0 | 28.0 | 5.0 | 35 | 18 | C | 143.0 | 108.0 |
Quote
|
| PCCD023 | 6.6 | 2/3″ | 7.5 x 5.0 | 25.0 x 17.0 | 53.0 | 28.0 | 5.0 | 35 | 20 | C | 143.0 | 108.5 |
Quote
|
| PCCD2M | 9.6 | 1″ | 7.5 x 5.0 | 25.0 x 17.0 | 53.0 | 28.0 | 5.0 | 35 | 22 | C | 143.0 | 113.8 |
Quote
|
Last update 31 Jan 2023
Notes
- Working distance: distance between the front end of the mechanics and the object.
- The design working f-number (wf/N) is specified. The working f-number could be changed using the variable iris.
- Measured from the front end of the mechanics to the camera flange.
The image of the external walls of the object, captured through the catadioptric system, is inscribed into the short side of the camera detector within a circular crown. On the other hand, the top of the object is directly imaged onto the central part of the detector area: both the lateral and top view of the object are in perfect focus at the same time.
Field of view
The tables show possible combinations of object diameters and heights along with the appropriate working distance and recommended F-number; the “c” parameter for each configuration is also listed.
The “c” parameter describes the dimension of the top view image: it is calculated as the ratio between the central top view diameter and the short side of the detector. The typical ratio between the object height and its diameter is 2/3 which means that, for a given object diameter (i.e. 15 mm), the recommended inspection height will be around 67% of the diameter (10 mm). However, this parameter can be modified to accommodate for different aspect ratios (up to 100%) by adjusting the lens working distance, focus and F-number.
PCCD013 Field of view
| Diameter | Height | WD | f# | c |
| (mm) | (mm) | (mm) | (%) | |
| 7.5 | 5.0 | 53 | 24 | 11% |
| 10 | 6.7 | 49 | 16 | 15% |
| 15 | 10.0 | 42 | 12 | 22% |
| 20 | 13.3 | 35 | 8 | 30% |
| 25 | 16.7 | 28 | 6 | 37% |
| 30 | 22 | 16 | 8 | 36% |
| 35 | 26 | 9.5 | 8 | 37% |
PCCD012 Field of view
| Diameter | Height | WD | f# | c |
| (mm) | (mm) | (mm) | (%) | |
| 7.5 | 5.0 | 53 | 32 | 13% |
| 10 | 6.7 | 49 | 24 | 17% |
| 15 | 10.0 | 42 | 16 | 25% |
| 20 | 13.3 | 34 | 12 | 33% |
| 25 | 16.7 | 28 | 8 | 42% |
| 30 | 22 | 15 | 8 | 37% |
| 35 | 26 | 8 | 8 | 37% |
PCCD023 Field of view
| Diameter | Height | WD | f# | c |
| (mm) | (mm) | (mm) | (%) | |
| 7.5 | 5.5 | 47 | 24 | 12 |
| 10 | 7 | 45 | 24 | 18 |
| 15 | 11 | 38 | 16 | 28 |
| 20 | 14 | 30 | 12 | 40 |
| 25 | 18 | 24 | 8 | 44 |
| 30 | 22 | 11 | 8 | 37 |
| 35 | 25 | 5 | 8 | 45 |
PCCDLFAT: how it works
PCCDLFAT is an accessory designed to increase the central field of view of PCCD optics.
By replacing the pre-assembled protective window with the PCCDLFAT attachment, PCCD optics can inspect the TOP and SIDES of objects with even larger diameters (beyond 25 mm).

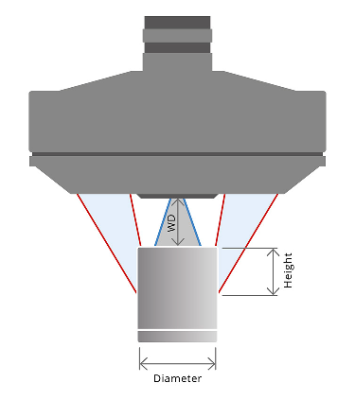

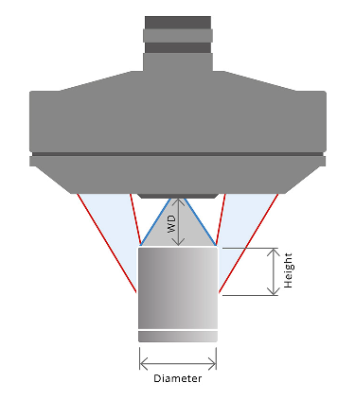

Schematics showing the FOVs of PCCD Optics with and without PCCDLFAT. PCCDLFAT extends the central field of view of PCCD optics to image objects with even larger diameters (beyond 25 mm)
Sample images taken with PCCD lenses
Bottles
Mechanical parts
O-rings and sealings

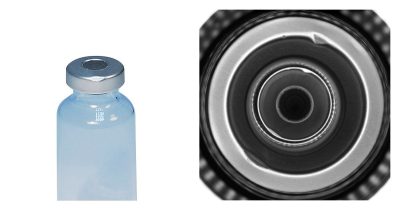

Pharmaceutical applications
Caps inspection
