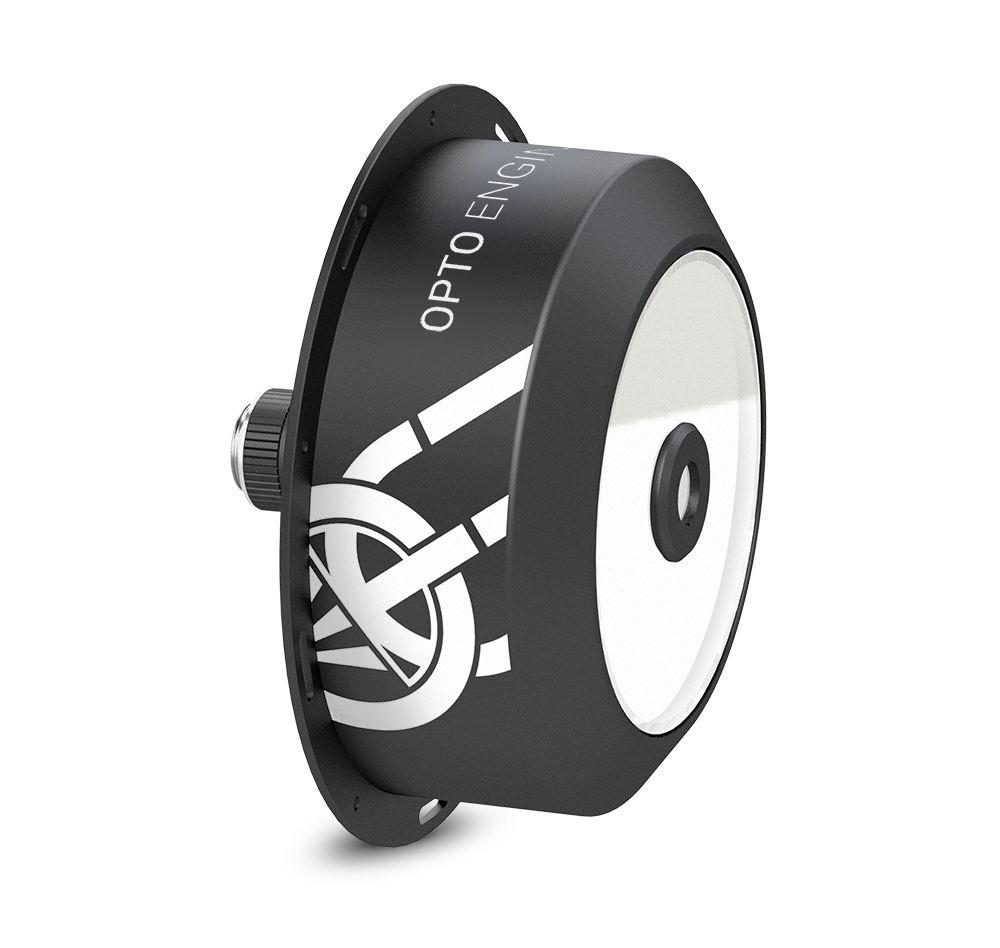

PCCDL
Specifications
Downloads
Compatible products
Main optical specifications
Image circle diameter (mm) 4.8 -10
Min sensor size 1/2" - 1.1"
Field of view (diameter x height)
Minimum (1) (mm × mm) 10.0 x 1.7
Medium (1) (mm × mm) 50.0 x 38.3
Maximum (1, 2) (mm × mm) 110.0 x 1.4
Advanced optical specifications
Working distance with minimum object (3) (mm) 76.1
Working distance with medium object (3) (mm) 9.0
Working distance with maximum object (2, 3) (mm) 0.0
Angle of view (deg) 35
ƒ/N (4) 2.8 - C
Mechanical specifications
Mount C
Diameter (mm) 215.0
Length (5) (mm) 129.5
Mass (g) 1984

Last update 15 Feb 2024

REACH

Notes

  1. For the complete information about the inspectable field of view, see the datasheet of the objective
  2. The maximum inspectable field of view is given considering zero working distance. Depending on the application, a working distance greater than zero will decrease the height of the inspectable object accordingly.
  3. Working distance: distance between the front end of the mechanics and the object.
  4. The f-number could be changed using the variable iris.
  5. Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
PCCDLFAT assembling

Datasheet

Download datasheet

Layout files

PDF
DXF
IGS
STEP
SLDPRT
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
LTRN232W45
Ring LED illuminator, inner diameter 185.0 mm, oblique type, white, 6300 K
ITA32-GM-10C
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount
ITA32-GC-10C
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount
ITA50-GM-10C
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Mono, 1 GigE, POE, C mount
ITA50-GC-10C
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Color, 1 GigE, POE, C mount
ITA50-GM-10C-PL
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Polar Mono, 1 GigE, POE, C mount
ITA50-GC-10C-PL
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Polar Color, 1 GigE, POE, C mount
ITA51-GM-20C
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount
ITA51-GC-20C
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount
ITA89-GM-10C
Area scan camera 4112 x 2176 MP, Sony IMX267, CMOS Global shutter, 1", Mono, 1 GigE, POE, C mount
ITA81-GM-20C
Area scan camera 2856 x 2848 MP, Sony IMX546, CMOS Global shutter, 2/3", Mono, 1 GigE, POE, C mount
ITA81-GC-20C
Area scan camera 2856 x 2848 MP, Sony IMX546, CMOS Global shutter, 2/3", Color, 1 GigE, POE, C mount
ITA89-GC-10C
Area scan camera 4112 x 2176 MP, Sony IMX267, CMOS Global shutter, 1", Color, 1 GigE, POE, C mount
ITA120-GM-10C
Area scan camera 4112 x 3008 MP, Sony IMX304, CMOS Global shutter, 1.1", Mono, 1 GigE, POE, C mount
ITA120-GC-10C
Area scan camera 4112 x 3008 MP, Sony IMX304, CMOS Global shutter, 1.1", Color, 1 GigE, POE, C mount
ITA120-GM-11C-PL
Area scan camera 4112 x 3008 MP, Sony IMX253, CMOS Global shutter, 1.1", Polar Mono, 1 GigE, POE, C mount
ITA120-GC-11C-PL
Area scan camera 4112 x 3008 MP, Sony IMX253, CMOS Global shutter, 1.1", Polar Color, 1 GigE, POE, C mount
ITA124-GM-20C
Area scan camera 4128 x 3008 MP, Sony IMX545, CMOS Global shutter, 1/1.1", Mono, 1 GigE, POE, C mount
ITA124-GC-20C
Area scan camera 4128 x 3008 MP, Sony IMX545, CMOS Global shutter, 1/1.1", Color, 1 GigE, POE, C mount
ITA162-GM-20C
Area scan camera 5328 x 3040 MP, Sony IMX542, CMOS Global shutter, 1.1", Mono, 1 GigE, POE, C mount
ITA162-GC-20C
Area scan camera 5328 x 3040 MP, Sony IMX542, CMOS Global shutter, 1.1", Color, 1 GigE, POE, C mount
ITA162-GM-20C
Area scan camera 5328 x 3040 MP, Sony IMX542, CMOS Global shutter, 1.1", Mono, 1 GigE, POE, C mount
ITA162-GC-20C
Area scan camera 5328 x 3040 MP, Sony IMX542, CMOS Global shutter, 1.1", Color, 1 GigE, POE, C mount
ITA204-GM-20C
Area scan camera 4512 x 4512 MP, Sony IMX541, CMOS Global shutter, 1.1", Mono, 1 GigE, POE, C mount
ITA204-GC-20C
Area scan camera 4512 x 4512 MP, Sony IMX541, CMOS Global shutter, 1.1", Color, 1 GigE, POE, C mount
RPOP series
RPOP series
Miscellaneous optical replacements
PCCDLFAT
Interchangeable attachment for extra-wide PCCD field of view
