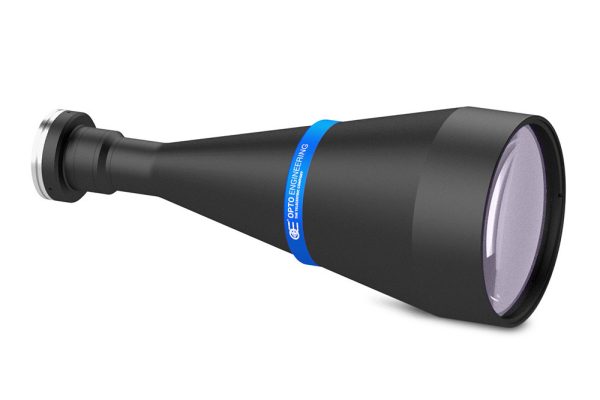

TC10M096-F
Specifications
Downloads
Compatible products
Main optical specifications
Magnification (x) 0.238
Image circle diameter (mm) 28.0
Max sensor size APS-C
Object field of view
4/3" IMX387 (mm × mm) 79.29 x 44.71
4/3" IMX367 (mm × mm) 64.24 x 64.29
Line 4k-7µm (1) (mm) 120.46
APS-C IMX342 (mm × mm) 93.95 x 70.46
Advanced optical specifications
Working distance (2) (mm) 278.6
Working ƒ/N (3) 8
Telecentricity typical (max) (4) (deg) <0.05 (0.10)
Distortion typical (max) (5) (%) <0.07 (0.10)
Depth of field (6) (mm) 11.70
Resolution (7) (μm) 21
Mechanical specifications
Mount (8) F
Phase adjustment (9) Yes
Length (10) (mm) 357.5
Front diameter (mm) 143
Mass (g) 2436

Last update 05 Sep 2023

REACH

Notes

  1. With Line 4k-7µm (28.67 mm diagonal) sensors, the FOV may show some vignetting at the image corners.
  2. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  3. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  4. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  5. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  6. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 5.5 μm.
  7. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  8. FD stands for Flange Distance (in mm), defined as the distance from the mounting flange to the camera detector plane.
  9. Indicates the availability of an integrated camera phase adjustment feature.
  10. Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
Back focal adjustment

Datasheet

Download datasheet

Layout files

PDF
DXF
IGS
STEP
SLDPRT
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
LTCLHP096-R
Telecentric HP illuminator, beam diameter 120 mm, red, 625 nm
LTCLHP096-G
Telecentric HP illuminator, beam diameter 120 mm, green, 525 nm
LTCLHP096-B
Telecentric HP illuminator, beam diameter 120 mm, blue, 460 nm
LTCLHP096-W
Telecentric HP illuminator, beam diameter 120 mm, white, 6000 K
LTRN096RD
Ring LED illuminator, inner diameter 143.0 mm, straight type, red, 630 nm
LTRN096GR
Ring LED illuminator, inner diameter 143.0 mm, straight type, green, 525 nm
LTRN096BL
Ring LED illuminator, inner diameter 143.0 mm, straight type, blue, 470 nm
LTRN096NW
Ring LED illuminator, inner diameter 143.0 mm, straight type, white, 6300 K
ITA315-GC-10J
Area scan camera 6480 x 4860 MP, Sony IMX342, CMOS Global shutter, APS-C, Color, 1 GigE, POE, M42x1 FD 12 mount
ITA315-GM-10J
Area scan camera 6480 x 4860 MP, Sony IMX342, CMOS Global shutter, APS-C, Mono, 1 GigE, POE, M42x1 FD 12 mount
CMBS series
CMBS series
45° beam splitters
CMBS096
45° beam splitter with mount for 143.0 mm clamping diameter optics
CMMR series
CMMR series
45° first surface mirrors
CMMR096
45° first surface mirror for 143.0 mm clamping diameter optics
WI series
WI series
Protective windows for lenses
WI096
Protective window for 143 mm clamping diameter optics
CMHO series
CMHO series
Clamping mechanics for lenses
CMHO096
Clamping mechanics for TCxx085, TCxx096 lenses and LTCLHP096-X illuminators
PT064-096
Calibration pattern
PT064-096-C
Checkerboard calibration pattern for telecentric lens with certificate
PT064-096-P
Calibration pattern
CMTH096
Precision alignment mechanics for telecentric setup
CMWF series
CMWF series
Holders for WI series
CMWF096
Holder for WI series, clamping diameter 143 mm
EXT series
EXT series
Extenders and adapters
RT-102201946
Adapter M42x1 FD 12 to F mount for cameras
