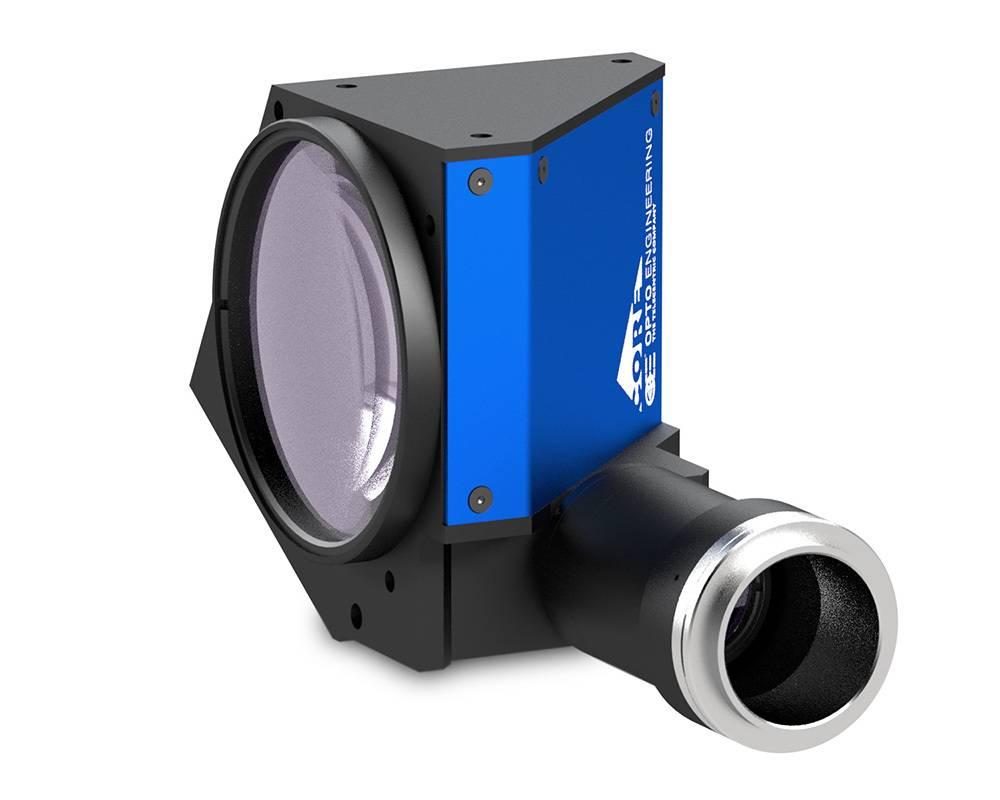

TCCR4MP064-J
Specifications
Downloads
Compatible products
Main optical specifications
Magnification (x) 0.274
Image shape dimension (1) (mm, mm) Ø=22.0, x=18.7
Max sensor size 4/3″
Object field of view
1" (mm × mm) 51.79 x 27.41
1.1" (mm × mm) 51.68 x 37.85
4/3" (2) (mm × mm) 69.09 x 38.72
Advanced optical specifications
Working distance (3) (mm) 181.9
Working ƒ/N (4) 8
Telecentricity typical (max) (5) (deg) <0.04 (0.10)
Distortion typical (max) (6) (%) <0.08 (0.10)
Depth of field (7) (mm) 5.50
Resolution (8) (μm) 19
Mechanical specifications
Mount M42x1 FD 12
Phase adjustment (9) Yes
Dimension A (10) (mm) 101
Dimension B (10) (mm) 126
Dimension C (10) (mm) 196.3
Mass (g) 2073

Last update 05 Sep 2023

REACH
PATENTED

Notes

  1. Indicates the dimensions and shape of image, where "Ø =" stands for diameter and "x=" indicates the nominal image height and length (Tech Info for related drawing).
  2. With IMX387 (21.7 mm diagonal) sensors, the FOV may show some vignetting at the image corners.
  3. Working distance: distance between the front end of the mechanics and the object. Set this distance within ± 3% of the nominal value for maximum resolution and minimum distortion.
  4. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  5. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  6. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  7. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
  8. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  9. Indicates the availability of an integrated camera phase adjustment feature.
  10. Due to the special shape of TCCR120xx it might be necessary to check the mechanical compatibility with your camera
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
Back focal adjustment

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
SLDPRT
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA168-GM-10J
Area scan camera 5472 x 3084 MP, Sony IMX387, CMOS Global shutter, 4/3", Mono, 1 GigE, POE, M42x1 FD 12 mount
ITA168-GC-10J
Area scan camera 5472 x 3084 MP, Sony IMX387, CMOS Global shutter, 4/3", Color, 1 GigE, POE, M42x1 FD 12 mount
ITA196-GM-10J
Area scan camera 4432 x 4436 MP, Sony IMX367, CMOS Global shutter, 4/3", Mono, 1 GigE, POE, M42x1 FD 12 mount
ITA196-GC-10J
Area scan camera 4432 x 4436 MP, Sony IMX367, CMOS Global shutter, 4/3", Color, 1 GigE, POE, M42x1 FD 12 mount
LTCLCR064-R
Telecentric CORE illuminator, beam dimensions Ø = 86, x = 67, red, 625 nm
LTCLCR064-G
Telecentric CORE illuminator, beam dimensions Ø = 86, x = 67, green, 525 nm
LTCLCR064-B
Telecentric CORE illuminator, beam dimensions Ø = 86, x = 67, blue, 460 nm
LTCLCR064-W
Telecentric CORE illuminator, beam dimensions Ø = 86, x = 67, white, 6000 K
PT064-096
Calibration pattern
PT064-096-C
Checkerboard calibration pattern for telecentric lens with certificate
PT064-096-P
Calibration pattern
CMHOCR series
CMHOCR series
Clamping mechanics for CORE lenses
CMHOCR064
Clamping mechanics for TCCRxx064 lenses and LTCLCR064-X illuminators
CMPTCR064
Mounting plate for CORE telecentric lenses
CMTHCR064
Precision alignment mechanics for telecentric setup
