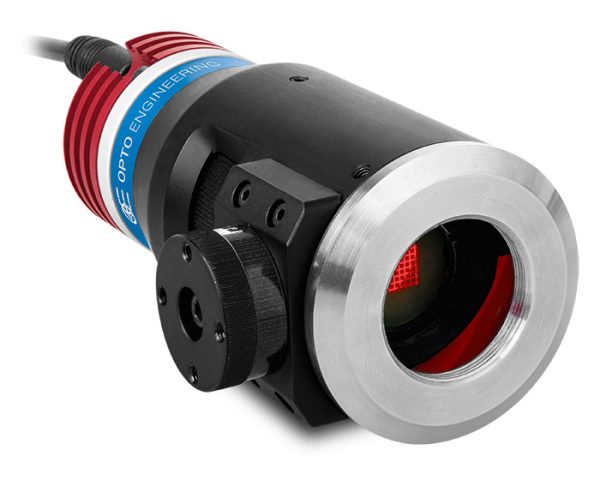

LTPRSMHP3W-R

Specifications

Lighting specifications
Active area (mm x mm) 8 x 8
Max pattern tilt (deg) 45
Light color, peak wavelength red, 625 nm
Spectral FWHM (nm) 20
Illuminance (1) (klux) 9
Electrical specifications
Operating mode (2) Continuous and strobe
Supply voltage (3) (V) 12-24
Power consumption (W) 4.5
LED forward voltage typical (max) (4) (V) 2.4 (3)
Max LED forward current (5) (mA) 720
Max pulse current (6) (mA) 2000
Estimated MTBF (7) (hours) > 100000
Connector M8
Cables CB244P1500 included
Mechanical specifications
Mount C
Phase adjustment Yes
Diameter (mm) 38.5
Length (mm) 90.8
Mass (g) 153
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
Installation Indoor use only
Eye safety
Risk group according to CEI EN 62471:2010 Exempt

Last update 18 Nov 2022

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. With a 35 mm lens, F/N 1.4 at 100 mm working distance without projection pattern at maximum driving current. Estimated value.
  2. To pulse LTRPSMHP3W, models built-in electronics must be bypassed in order to drive the LED directly.
  3. Tolerance ± 10%
  4. Max continuous LED driving current is supplied through the built-in electronics. No external controller is required.
  5. At max forward current. Tolerance is ± 0.06V on forward voltage measurements
  6. At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
  7. At 55 °C, 720mA.
