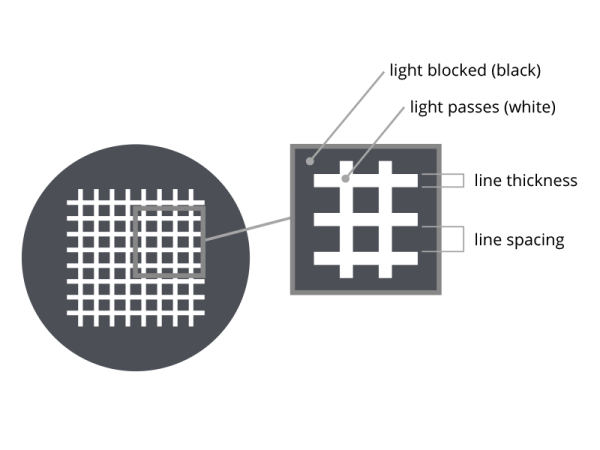

Grid projection pattern, Photolitography
|Substrate||Soda lime glass|
|Coating||Chrome on glass|
|Dot size||(mm x mm)||-|
|with LTPRHP3W, LTPRXP projectors (circular aperture)|
|Number of lines||73 x 73|
|Max line length||(mm)||11|
|with LTPRSMHP, LTPRSMHP3W projectors (square aperture)|
|Active area||(mm x mm)||8 x 8|
|Number of lines||53 x 53|
|Max line length||(mm)||8|
Last update 28 Sep 2022
