PTST010010P

Specifications

Specifications

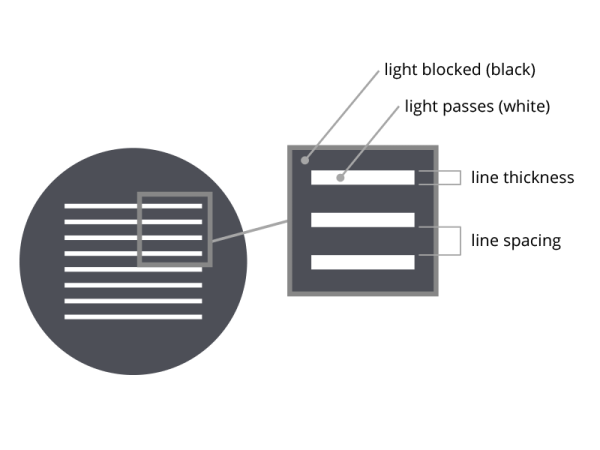

Type Stripes
Process Photolitography
Substrate Soda lime glass
Coating Chrome on glass
Line spacing (mm) 0.01
Line thickness (mm) 0.01
Dot size (mm x mm) -
Geometrical accuracy (µm) 2.0
Edge sharpness (µm) 1.4
with LTPRHP3W, LTPRXP projectors (circular aperture)
Active area (mm) 11
Number of lines 550
Max line length (mm) 11
with LTPRSMHP, LTPRSMHP3W projectors (square aperture)
Active area (mm x mm) 8 x 8
Number of lines 400
Max line length (mm) 8
Mechanical specifications
Diameter (mm) 21
Thickness (mm) 1.6

Last update 28 Sep 2022

REACH
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Minimun length: 6 characters
Required field
Required field

Compatible products

Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
LTPRHP3W series
LTPRHP3W series
LTPRHP3W-R
LED pattern projector 3W, red, 625 nm
LTPRHP3W-G
LED pattern projector 3W, green, 525 nm
LTPRHP3W-B
LED pattern projector 3W, blue, 460 nm
LTPRHP3W-W
LED pattern projector 3W, white, 6000 K
LTPRUP series
LTPRUP series
LTPRUP-R
90W strobed LED pattern projector, red, 625 nm
LTPRUP-G
90W strobed LED pattern projector, green, 525 nm
LTPRUP-B
90W strobed LED pattern projector, blue, 460 nm
LTPRUP-W
90W strobed LED pattern projector, white, 6000 K
LTPRSMHP3W-R
Scheimpflug LED pattern projector 3W, red, 625 nm
LTPRSMHP3W-G
Scheimpflug LED pattern projector 3W, green, 525 nm
LTPRSMHP3W-B
Scheimpflug LED pattern projector 3W, blue, 460 nm
LTPRSMHP3W-W
Scheimpflug LED pattern projector 3W, white, 6000 K
LTPRXP series
LTPRXP series
LTPRXP-R
High Power LED pattern projector, red, 623 nm
LTPRXP-G
High Power LED pattern projector, green, 523 nm
LTPRXP-B
High Power LED pattern projector, blue, 460 nm
LTPRXP-W
High Power LED pattern projector, white, 4000 K
