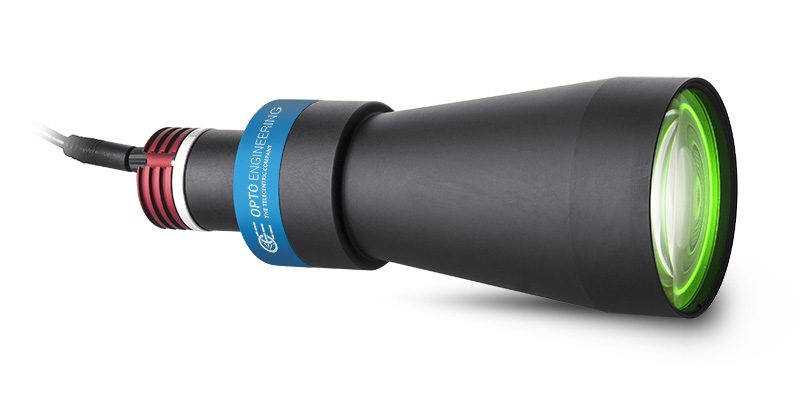

LTCLHP056-G

Specifications

Lighting specifications
Beam diameter (mm) 70
Working distance range (mm) 100 - 200
Light color, peak wavelength (1) green, 525 nm
Spectral FWHM (nm) 40
Electrical specifications
Supply voltage (2) (V) 12-24
Max power consumption (W) 2.5
LED forward voltage typical (max) (3) (V) 3.3 (4.0)
Max LED forward current (4) (mA) 350
Max pulse current (5) (mA) 2000
Connector M8
Cables CB244P1500 included
Mechanical specifications
Length (6) (mm) 210.5
Front diameter (mm) 80.0
Mass (g) 806
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
Installation Indoor use only
Eye safety
Risk group according to CEI EN 62471:2010 Risk group 1

Last update 18 Nov 2022

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. Opto Engineering® recommends green light for high precision measurement applications
  2. Tolerance ± 10%
  3. At max forward current. Tolerance is ± 0.06V on forward voltage measurements
  4. In continuous mode (not pulsed)
  5. At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
  6. Nominal value, with no spacers in place
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Minimun length: 6 characters
Required field
Required field

Compatible products

Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
TCCR4M056-C
Telecentric CORE lens for 4/3″ sensors, magnification 0.314x, C mount, WD 157.8 mm
TCCR4M056-F
Telecentric CORE lens for 4/3″ sensors, magnification 0.314x, F mount, WD 157.8 mm
TCCR4M056-E
Telecentric CORE lens for 4/3″ sensors, magnification 0.314x, M42x1 FD 16 mount, WD 157.8 mm
TC4MHR056-C
High resolution telecentric lens for 4/3″ sensors, magnification 0.314x, C mount
TC4MHR056-F
High resolution telecentric lens for 4/3″ sensors, magnification 0.314x, F mount
TC4MHR056-E
High resolution telecentric lens for 4/3″ sensors, magnification 0.314x, M42x1 FD 16 mount
TC3MHR056-C
High resolution telecentric lens for 1.1" sensors, magnification 0.259x, C mount
TC1MHR056-C
High resolution telecentric lens for 1/1.2" sensors, magnification 0.190x, C mount
TC16M056
Telecentric lens for 35 mm Full Frame sensors, magnification 0.641x, mount F
TC16M056-Q
Telecentric lens for 35 mm Full Frame sensors, magnification 0.641x, mount M58x0.75 FD 6.56
TC12M056-F
High resolution telecentric lens, magnification 0.531x, WD 136.5 mm, F mount
TC12M056-J
High resolution telecentric lens, magnification 0.531x, WD 136.5 mm, M42x1 FD 12 mount
TCCR12056
Bi-telecentric CORE lens for 1/2" detectors, magnification 0.114x, C-mount
TCCR23056
Bi-telecentric CORE lens for 2/3" detectors, magnification 0.157x, C-mount
TC13056
Bi-telecentric lens for 1/3" sensors, magnification 0.084 x, C-mount
TC12056
Bi-telecentric lens for 1/2" sensors, magnification 0.114 x, C-mount
TC23056
Bi-telecentric lens for 2/3" sensors, magnification 0.157 x, C-mount
CB series
CB series
Cables
CB244P1500
Power cable, side 1 M8 connector straight, side 2 cable end - 2 m - type 1 labels
CB244P1500L
Power cable, side 1 M8 connector angled, side 2 cable end - 2 m - type 1 labels
PS series
PS series
Power supplies
RT-SDR-120-24
DIN rail power supply
LED1W-G
Replacement LED source, green, 525 nm
LTIC series
LTIC series
LED lighting controllers
LTIC1CH-A1-4
Analogue lighting controller unit, 4A, 24V
LTIC1CH-D1-4
Digital lighting controller unit, 4A, 24V
LTICOBUL1000CH1-24VUKTB
24VDC analog lighting controller 1 channel, UK power cord, Illumination cable, side A SM 3 way male connector, side B terminal blocks connector, 24V - 3m
LTICOBUL1000CH1-24VUSTB
24VDC analog lighting controller 1 channel, UK power cord, Illumination cable, side A SM 3 way male connector, side B terminal blocks connector, 24V - 3m
LTICOBUL1000CH1-24VEUTB
24VDC analog lighting controller 1 channel, UK power cord, Illumination cable, side A SM 3 way male connector, side B terminal blocks connector, 24V - 3m
LTSCHP1W-G
Replacement LED module, green
LTSCHP1W-GZ
Replacement LED module with diffuser, green
CMHO series
CMHO series
Clamping mechanics for lenses
CMHO056
Clamping mechanics for TCxx056 lenses and LTCLHP056-X illuminators
WI series
WI series
Protective windows for lenses
WI056
Protective window for 80 mm clamping diameter optics
CMMR series
CMMR series
45° first surface mirrors
CMMR056
45° first surface mirror for 80.0 mm clamping diameter optics
CPDPH01
Diffuser cap for telecentric illuminators, diffusive diameter 2.8 mm
CMBS series
CMBS series
45° beam splitters
CMBS056
45° beam splitter with mount for 80.0 mm clamping diameter optics
