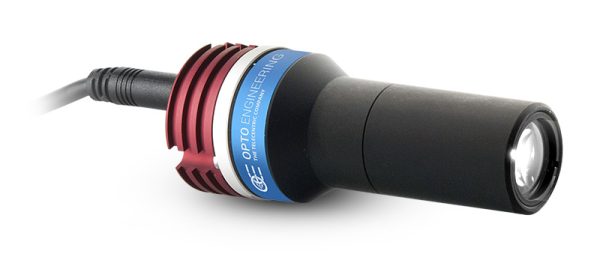

LTCLHP023-W

Specifications

Lighting specifications
Beam diameter (mm) 16
Working distance range (mm) 45 - 90
Light color, peak wavelength (1) white, 6000 K
Spectral FWHM (nm) -
Electrical specifications
Supply voltage (2) (V) 12-24
Max power consumption (W) 2.5
LED forward voltage typical (max) (3) (V) 2.8 (-)
Max LED forward current (4) (mA) 350
Max pulse current (5) (mA) 2000
Connector M8
Cables CB244P1500 included
Mechanical specifications
Length (6) (mm) 96.8
Front diameter (mm) 28.0
Mass (g) 152
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
Installation Indoor use only
Eye safety
Risk group according to CEI EN 62471:2010 Risk group 1

Last update 18 Nov 2022

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. Opto Engineering® recommends green light for high precision measurement applications
  2. Tolerance ± 10%
  3. At max forward current. Tolerance is ± 0.06V on forward voltage measurements
  4. In continuous mode (not pulsed)
  5. At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
  6. Nominal value, with no spacers in place
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Minimun length: 6 characters
Required field
Required field

Compatible products

Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
TC4M004-C
High resolution telecentric lens for 4/3″ sensors, magnification 4.000x, C mount
TC4M004-F
High resolution telecentric lens for 4/3″ sensors, magnification 4.000x, F mount
TC4M007-C
High resolution telecentric lens for 4/3″ sensors, magnification 2.667x, C mount
TC4M007-F
High resolution telecentric lens for 4/3″ sensors, magnification 2.667x, F mount
TC4M009-C
High resolution telecentric lens for 4/3″ sensors, magnification 2.000x, C mount
TC4M009-F
High resolution telecentric lens for 4/3″ sensors, magnification 2.000x, F mount
TC23004
Bi-telecentric lens for 2/3" sensors, magnification 2.000 x, C-mount
TC23007
Bi-telecentric lens for 2/3" sensors, magnification 1.333 x, C-mount
TC23009
Bi-telecentric lens for 2/3" sensors, magnification 1.000 x, C-mount
TC23012
Bi-telecentric lens for 2/3" sensors, magnification 0.735 x, C-mount
CB series
CB series
Cables
CB244P1500
Power cable, side 1 M8 connector straight, side 2 cable end - 2 m - type 1 labels
CB244P1500L
Power cable, side 1 M8 connector angled, side 2 cable end - 2 m - type 1 labels
PS series
PS series
Power supplies
RT-SDR-120-24
DIN rail power supply
LED1W-W
Replacement LED source, white, 6000 K
LTIC series
LTIC series
LED lighting controllers
LTIC1CH-A1-4
Analogue lighting controller unit, 4A, 24V
LTIC1CH-D1-4
Digital lighting controller unit, 4A, 24V
LTICOBUL1000CH1-24VUKTB
24VDC analog lighting controller 1 channel, UK power cord, Illumination cable, side A SM 3 way male connector, side B terminal blocks connector, 24V - 3m
LTICOBUL1000CH1-24VUSTB
24VDC analog lighting controller 1 channel, UK power cord, Illumination cable, side A SM 3 way male connector, side B terminal blocks connector, 24V - 3m
LTSCHP1W-W
Replacement LED module, white
CMHO series
CMHO series
Clamping mechanics for lenses
CMHO023
Clamping mechanics for TCxx004, 007, 009, 012 and LTCLHP023-X
