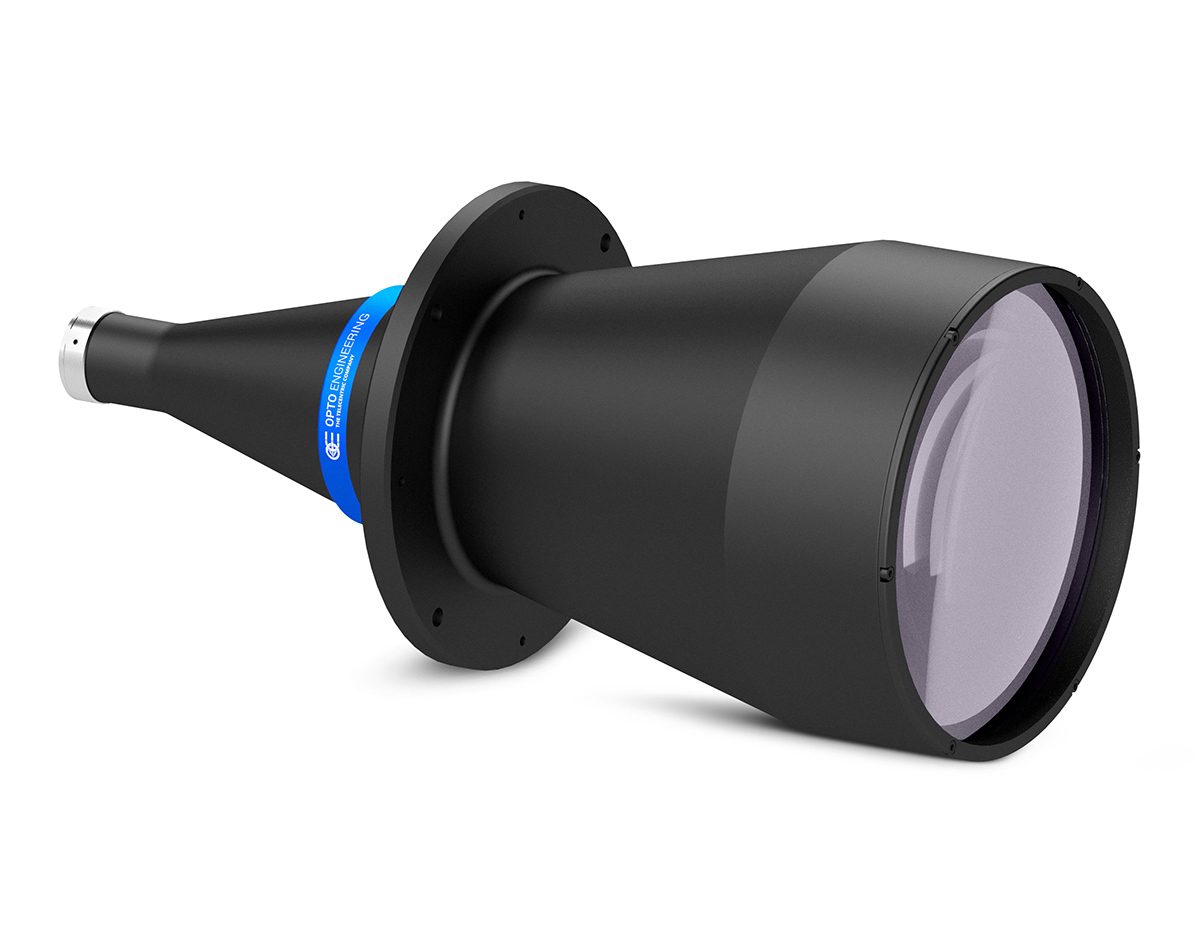

Bi-telecentric lens for 1/3" sensors, magnification 0.033 x, C-mount
|Main optical specifications|
|Image circle diameter||(mm)||6.0|
|Max sensor size||1/3″|
|Object field of view|
|1/3” (1)||(mm × mm)||145.45 x 109.09|
|1/2.5” (1)||(mm × mm)||ø = 129.70|
|1/2” (1)||(mm × mm)||ø = 145.45|
|1/1.8” (1)||(mm × mm)||ø = 161.52|
|2/3” (1)||(mm × mm)||ø = 181.82|
|Advanced optical specifications|
|Working distance (2)||(mm)||396.0|
|Working ƒ/N (3)||8|
|Telecentricity typical (max) (4)||(deg)||< 0.05 (0.08)|
|Distortion typical (max) (5)||(%)||< 0.04 (0.10)|
|Field depth (6)||(mm)||380.20|
|Phase adjustment (8)||Yes|
Last update 25 Nov 2022
- Object field of view (mm x mm). For the fields with the indication "Ø =", the image of a circular object of such diameter is fully inscribed into the detector.
- Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
- Working f-number (wf/N): the real f-number of a lens in operating conditions.
- Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
- Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
- At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
- Object side, calculated with the Rayleigh criterion with λ= 520 nm
- If not available, phase adjustment can be supplied upon request (except for TC23004, TC23007,TC23009, TC23012).
- Measured from the front end of the mechanics to the camera flange.
It's easy to select the right lens for your application: our part numbers are coded as TC xx yyy, where xx defines the camera sensor size (13 = 1/3″, 12 = 1/2″, 23 = 2/3″) and yyy refers to the horizontal field of view (FOV), in millimeters. For instance, a TC12064 features a field of view of 64 (x 48) mm with a 1/2″ camera sensor.
