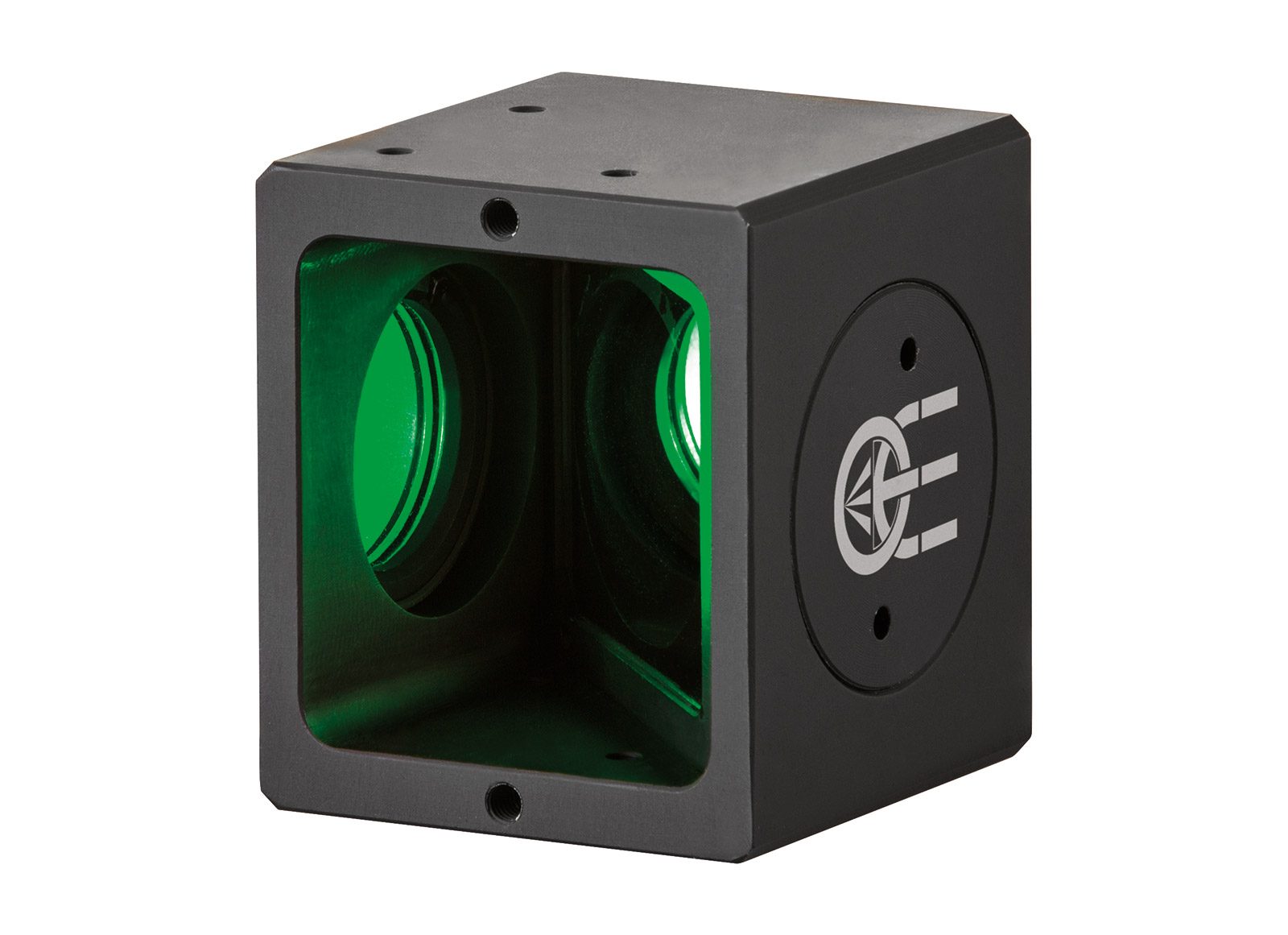

CMBS016

Specifications

Main optical specifications
Coating front Beam splitter 50/50 @ 45°, bandwidth 430-670 nm
Coating back Normal reflectance <0.5%, bandwidth 430-670 nm
Clear aperture (mm) 34.7
Deviation angle (deg) 90
Mechanical specifications
Clamping size (mm) 37.7
Clamping system lockring
Length (mm) 85.8
Width (mm) 64.0
Height (mm) 85.8
Mass (g) 464
Compatible products
Compatible telecentric lenses TCLWD
Compatible illuminators LTCLHP016-x
Working distance difference (1) (mm) 52.2
Protective windows (2) -

Last update 28 Sep 2022

REACH

Notes

  1. Value to be subtracted from the objective or illumiantor working distance when the CMBS is used
  2. To be ordered separately.

Ordering information

Additional clamping mechanics are required to adequately support combination of CMBS with telecentric lenses and illuminators. CMHO series clamping mechanics can be used prior to verification of mechanical compatibility (see CMHO series mechanical drawings available online). CMHO is not compatible with the combination of the following two products: CMMR and TC13xxx.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Minimun length: 6 characters
Required field
Required field

Compatible products

Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
TCEL050
Telecentric lens for 2/3" sensors with integrated liquid lens, mag. 0.500x
TCEL066
Telecentric lens for 2/3" sensors with integrated liquid lens, mag. 0.670x
TCEL075
Telecentric lens for 2/3" sensors with integrated liquid lens, mag. 0.750x
TCEL100
Telecentric lens for 2/3" sensors with integrated liquid lens, mag. 1.000x
TCEL150
Telecentric lens for 2/3" sensors with integrated liquid lens, mag. 1.500x
TCEL250
Telecentric lens for 2/3" sensors with integrated liquid lens, mag. 2.500x
TCEL350
Telecentric lens for 2/3" sensors with integrated liquid lens, mag. 3.500x
TCLWD050
Long working distance telecentric lens for 2/3" sensors, WD 132.3 mm, magnification 0.500x, C-mount
TCLWD066
Long working distance telecentric lens for 2/3" sensors, WD 132.3 mm, magnification 0.660x, C-mount
TCLWD075
Long working distance telecentric lens for 2/3" sensors, WD 132.3 mm, magnification 0.750x, C-mount
TCLWD100
Long working distance telecentric lens for 2/3" sensors, WD 132.3 mm, magnification 1.000x, C-mount
TCLWD150
Long working distance telecentric lens for 2/3" sensors, WD 132.3 mm, magnification 1.500x, C-mount
TCLWD250
Long working distance telecentric lens for 2/3" sensors, WD 132.3 mm, magnification 2.500x, C-mount
TCLWD350
Long working distance telecentric lens for 2/3" sensors, WD 132.3 mm, magnification 3.500x, C-mount
LTCLHP016-R
Telecentric HP illuminator, beam diameter 20 mm, red, 625 nm
LTCLHP016-G
Telecentric HP illuminator, beam diameter 20 mm, green, 525 nm
LTCLHP016-B
Telecentric HP illuminator, beam diameter 20 mm, blue, 460 nm
LTCLHP016-W
Telecentric HP illuminator, beam diameter 20 mm, white, 6000 K
