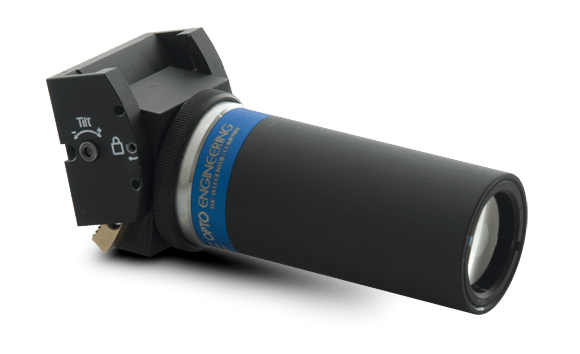

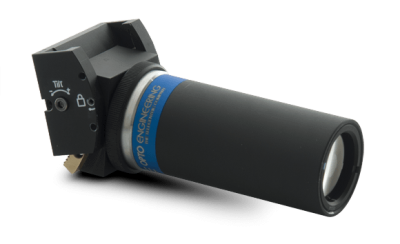

TCSM016
Specifications
Downloads
Compatible products
Main optical specifications
Object tilt (deg) 0
10
20
30
Mount tilt (deg) 0
5.3
10.9
17.0
Horizontal magnification (x) 0.528
0.528
0.528
0.528
Vertical magnification (x) 0.528
0.522
0.505
0.478
Max sensor size 2/3″
Field of view, long sensor side horizontal
1/3” (mm × mm) 9.09 x 6.82
9.09 x 6.90
9.09 x 7.13
9.09 x 7.53
1/2.5” (mm × mm) 10.80 x 8.11
10.80 x 8.20
10.80 x 8.48
10.80 x 8.95
1/2” (mm × mm) 12.12 x 9.09
12.12 x 9.20
12.12 x 9.50
12.12 x 10.04
1/1.8” (mm × mm) 13.50 x 10.09
13.50 x 10.21
13.50 x 10.55
13.50 x 11.15
2/3” (mm × mm) 16.10 x 13.43
16.10 x 13.58
16.10 x 14.04
16.10 x 14.83
Field of view, long sensor side vertical
1/3” (mm × mm) 6.82 x 9.09
6.82 x 9.20
6.82 x 9.50
6.82 x 10.04
1/2.5” (mm × mm) 8.11 x 10.80
8.11 x 10.92
8.11 x 11.29
8.11 x 11.92
1/2” (mm × mm) 9.09 x 12.12
9.09 x 12.26
9.09 x 12.67
9.09 x 13.39
1/1.8” (mm × mm) 9.09 x 8.11
9.20 x 8.11
9.50 x 8.11
10.04 x 8.11
2/3” (mm × mm) 13.43 x 16.10
13.43 x 16.28
13.43 x 16.83
13.43 x 17.78
Advanced optical specifications
Working distance (1) (mm) 43.1
Working ƒ/N (2) 8
Telecentricity typical (max) (3) (deg) < 0.06 (0.10)
Distortion typical (max) (4) (%) < 0.04 (0.07)
Mechanical specifications
Mount C
Max mount tilt (deg) 20
Phase adjustment Yes
Length (5) (mm) 112.6
Front diameter (mm) 37.7
Mass (g) 405

Last update 05 Sep 2023

REACH

Notes

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
Back focal adjustment

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
SLDPRT
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA50-GM-10C
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Mono, 1 GigE, POE, C mount
ITA50-GC-10C
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Color, 1 GigE, POE, C mount
ITA50-GM-10C-PL
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Polar Mono, 1 GigE, POE, C mount
ITA50-GC-10C-PL
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Polar Color, 1 GigE, POE, C mount
ITA81-GM-20C
Area scan camera 2856 x 2848 MP, Sony IMX546, CMOS Global shutter, 2/3", Mono, 1 GigE, POE, C mount
ITA81-GC-20C
Area scan camera 2856 x 2848 MP, Sony IMX546, CMOS Global shutter, 2/3", Color, 1 GigE, POE, C mount
LTRN016RD
Ring LED illuminator, inner diameter 37.7 mm, straight type, red, 630 nm
LTRN016GR
Ring LED illuminator, inner diameter 37.7 mm, straight type, green, 525 nm
LTRN016BL
Ring LED illuminator, inner diameter 37.7 mm, straight type, blue, 470 nm
LTRN016NW
Ring LED illuminator, inner diameter 37.7 mm, straight type, white, 6300 K
CMHO series
CMHO series
Clamping mechanics for lenses
CMHO016
Clamping mechanics for TCxx016 lenses and LTCLHP016-X illuminators
PT016-024
Calibration pattern
PT016-024-C
Checkerboard calibration pattern for telecentric lens with certificate
