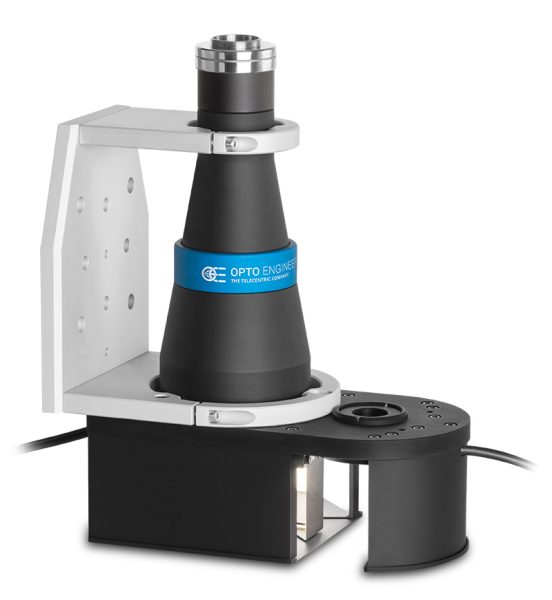

TCCAGE23048HP

Specifications

Main optical specifications
Magnification (x) 0.184
Image size (1) (mm x mm) 8.5 x 7.1
Max sensor size 2/3″
Field of view (diameter x height)
Maximum (mm × mm) 8.0 x 32.0
Advanced optical specifications
Working ƒ/N (2) 8
Coaxial light
Light color, peak wavelength white, 6500K
Power supply mode Strobe only, constant current driving
Supply voltage (3) (V) -
Max continuous current (mA) -
Typical pulse voltage (V) 30
Max pulse current (A) 6
Peak power consumption (W) 180.0
Max duty-cycle (%) 1
Max pulse duration (ms) 1
Estimated MTBF (4) (hours) 50000
Cable length (m) 0.3
Connector M8
Cables CBLT003 included
Ring light
Light color, peak wavelength white, 6500K
Power supply mode Strobe only, constant current driving
Supply voltage (3) (V) -
Max continuous current (mA) -
Typical pulse voltage (V) 20
Max pulse current (A) 2
Peak power consumption (W) 40
Max duty-cycle (%) 2
Max pulse duration (ms) 1
Estimated MTBF (4) (hours) 50000
Cable length (m) 0.3
Connector M8
Cables CBLT003 included
Mechanical specifications
Mount C
Phase adjustment (5) Yes
Length (mm) 200.8
Width (mm) 111.0
Height (mm) 248.0
Mass (g) 2066
Environmental specifications
Operating temperature (°C) 0-40
Operating relative humidity (%) 20 - 85, non-condensing
Installation Indoor use only
Eye safety
Risk group according to CEI EN 62471:2010 Exempt

Last update 18 Nov 2022

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. Sensors with different dimensions may cause incomplete images
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Tolerance ± 2%.
  4. Drop to 50% intensity @ 25°C.
  5. Indicates the availability of an integrated camera phase adjustment feature.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Minimun length: 6 characters
Required field
Required field

Compatible products

Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
RPOP series
RPOP series
SPMI002
First surface mirror, active area 20x40 mm, mount type 2
SPMI003
First surface mirror, active area 25x75 mm, mount type 1
SPPS001
Right angle prism, legs 17 mm, H 39 mm, mirror coating
CSCAGE048
Sample for alignment of TCCAGExx048
