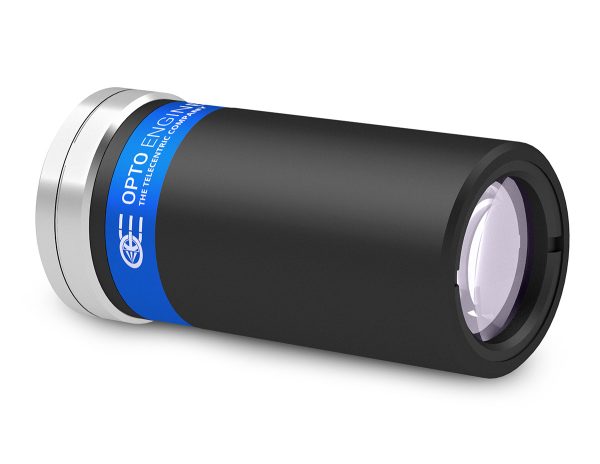

TC13016
Specifications
Downloads
Compatible products
Main optical specifications
Magnification (x) 0.290
Image circle diameter (mm) 6.0
Max sensor size 1/3″
Object field of view
1/3” (1) (mm × mm) 16.55 x 12.41
1/2.5” (1) (mm × mm) ø = 14.76
1/2” (1) (mm × mm) ø = 16.55
1/1.8” (1) (mm × mm) ø = 18.38
2/3” (1) (mm × mm) ø = 20.69
Advanced optical specifications
Working distance (2) (mm) 43.1
Working ƒ/N (3) 8
Telecentricity typical (max) (4) (deg) < 0.08 (0.10)
Distortion typical (max) (5) (%) < 0.04 (0.08)
Depth of field (6) (mm) 4.90
Resolution (7) (μm) 18
Mechanical specifications
Mount C
Phase adjustment (8) No
Length (9) (mm) 80.9
Front diameter (mm) 37.7
Mass (g) 234

Last update 02 May 2024

REACH

Notes

  1. Object field of view (mm x mm). For the fields with the indication "Ø =", the image of a circular object of such diameter is fully inscribed into the detector.
  2. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  3. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  4. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  5. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  6. At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
  7. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  8. If not available, phase adjustment can be supplied upon request (except for TC23004, TC23007,TC23009, TC23012).
  9. Measured from the front end of the mechanics to the camera flange.

Ordering information

It's easy to select the right lens for your application: our part numbers are coded as TC xx yyy, where xx defines the camera sensor size (13 = 1/3″, 12 = 1/2″, 23 = 2/3″) and yyy refers to the horizontal field of view (FOV), in millimeters. For instance, a TC12064 features a field of view of 64 (x 48) mm with a 1/2″ camera sensor.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
Back focal adjustment

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
SLDPRT
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA04-GM-10C
Area scan camera 728 x 544 MP, Sony IMX287, CMOS Global shutter, 1/2.9", Mono, 1 GigE, POE, C mount
ITA04-GC-10C
Area scan camera 728 x 544 MP, Sony IMX287, CMOS Global shutter, 1/2.9", Color, 1 GigE, POE, C mount
ITA16-GM-10C
Area scan camera 1456 x 1088 MP, Sony IMX273, CMOS Global shutter, 1/2.9", Mono, 1 GigE, POE, C mount
ITA16-GC-10C
Area scan camera 1456 x 1088 MP, Sony IMX273, CMOS Global shutter, 1/2.9", Color, 1 GigE, POE, C mount
LTCLHP016-R
Telecentric HP illuminator, beam diameter 20 mm, red, 625 nm
LTCLHP016-G
Telecentric HP illuminator, beam diameter 20 mm, green, 525 nm
LTCLHP016-B
Telecentric HP illuminator, beam diameter 20 mm, blue, 460 nm
LTCLHP016-W
Telecentric HP illuminator, beam diameter 20 mm, white, 6000 K
LTRN016RD
Ring LED illuminator, inner diameter 37.7 mm, straight type, red, 630 nm
LTRN016GR
Ring LED illuminator, inner diameter 37.7 mm, straight type, green, 525 nm
LTRN016BL
Ring LED illuminator, inner diameter 37.7 mm, straight type, blue, 470 nm
LTRN016NW
Ring LED illuminator, inner diameter 37.7 mm, straight type, white, 6300 K
CMHO series
CMHO series
Clamping mechanics for lenses
CMHO016
Clamping mechanics for TCxx016 lenses and LTCLHP016-X illuminators
PT016-024
Calibration pattern
PT016-024-C
Checkerboard calibration pattern for telecentric lens with certificate
