Home Optics 360° view lenses PCPW series

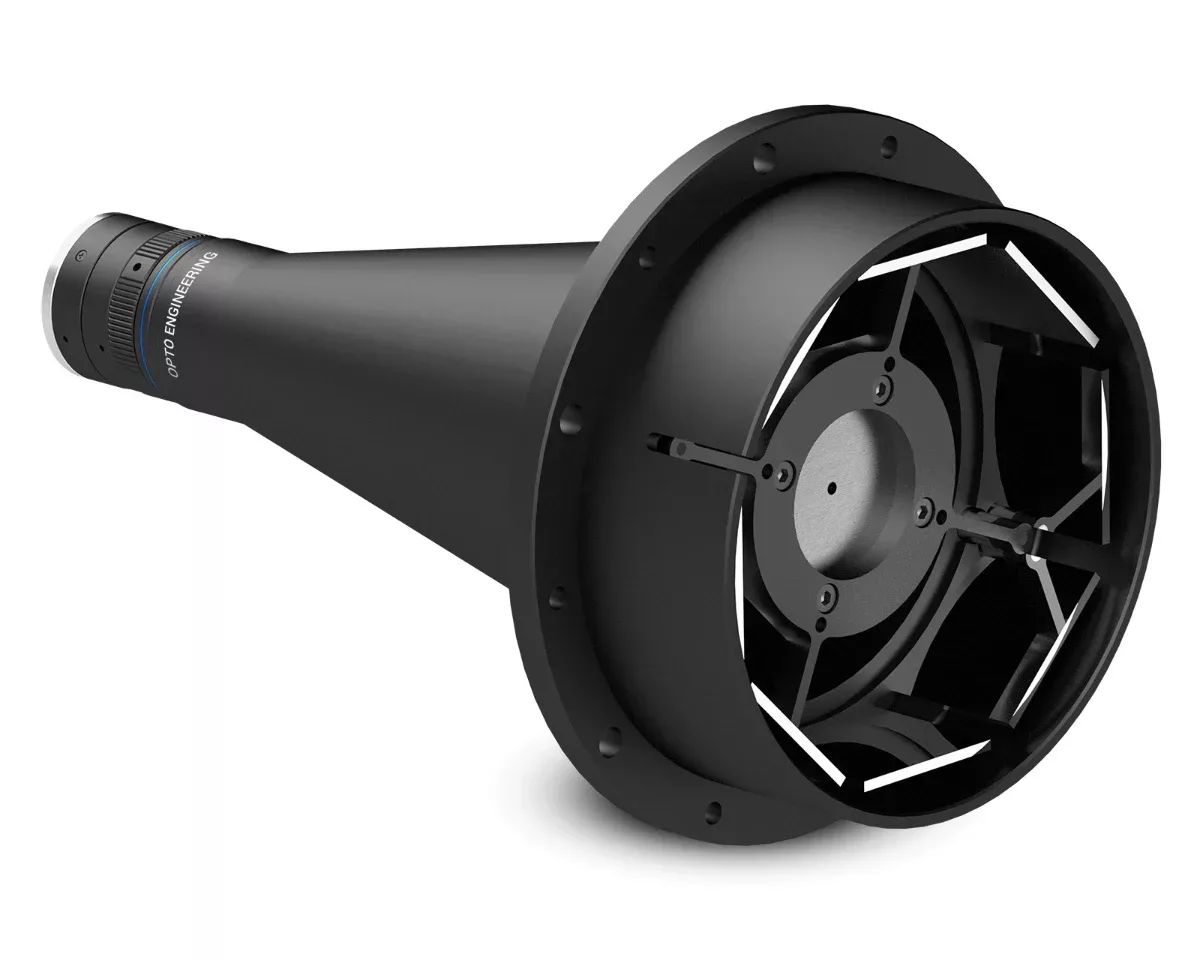

PCPW013

Specifications

Main optical specifications
Image circle diameter (mm) 3.6
Max sensor size 1/3″
Field of view (diameter x height)
Minimum (mm × mm) 30.0 x 20.0
Maximum (mm × mm) 50.0 x 5.0
Advanced optical specifications
Working distance with minimum object (1) (mm) 40.0
Working distance with maximum object (1) (mm) 20.0
Viewing angle (deg) 45
Working ƒ/N (2) 4
Mechanical specifications
Mount C
Length (3) (mm) 232.3
Front diameter (mm) 117.0
Mass (g) 902

Last update 28 Sep 2022

REACH

Notes

  1. Working distance: distance between the front end of the mechanics and the object.
  2. The design working f-number (wf/N) is specified. The working f-number could be changed using the variable iris.
  3. Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Minimun length: 6 characters
Required field
Required field

Compatible products

Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
LTRN050R45
Ring LED illuminator, inner diameter 15.2 mm, oblique type, red, 630 nm
LTRN050G45
Ring LED illuminator, inner diameter 15.2 mm, oblique type, green, 525 nm
LTRN050B45
Ring LED illuminator, inner diameter 15.2 mm, oblique type, blue, 470 nm
LTRN050W45
Ring LED illuminator, inner diameter 15.2 mm, oblique type, white, 6300 K
LTRN245R45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, red, 630 nm
LTRN245G45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, green, 525 nm
LTRN245B45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, blue, 470 nm
LTRN245W45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, white, 6300 K
COE-U series
COE-U series
GenICam® C-mount USB3 cameras
COE-016-M-USB-021-IR-C
Area scan camera IMX273, CMOS, Global shutter, 1440 x 1080, 1.6 MP, 3.5 μm, 1/2.9", Mono, 249.1 fps, USB 3.0, C-mount, AR
COE-016-C-USB-021-IR-C
Area scan camera IMX273, CMOS, Global shutter, 1440 x 1080, 1.6 MP, 3.5 μm, 1/2.9", Color, 249.1 fps, USB 3.0, C-mount, IR cut
RT-mvBC-X104iG
Camera with interface 1 GigE, sensor size 1/1.8", 3.2 MP, resolution 2064 x 1544, sensor name IMX265, sensor type CMOS
RT-mvBC-XD104hG
Camera with interface Dual GigE, sensor size 1/1.8", 3.2 MP, resolution 2064 x 1544, sensor name IMX252, sensor type CMOS
RT-mvBC-XD105aG
Camera with interface Dual GigE, sensor size 2/3", 5.1 MP, resolution 2464 x 2056, sensor name IMX250, sensor type CMOS
COE-G series
COE-G series
GenICam® PoE C-mount cameras
COE-106-M-POE-031-IR-C-2
Area scan camera MT9J003, CMOS, Rolling shutter, 3840 x 2748, 10.6 MP, 1.67 μm, 1/2.3", Mono, 7.0 fps, 1 GigE, POE, C-mount, AR filter
COE-106-C-POE-031-IR-C
Area scan camera MT9J003, CMOS, Rolling shutter, 3840 x 2748, 10.6 MP, 1.67 μm, 1/2.3", Color, 7.0 fps, 1 GigE, POE, C-mount, IR cut filter
