| Main optical specifications | ||
| Image circle diameter | (mm) | 3.6 |
| Min sensor size | 1/3" | |
| Field of view (diameter x height) | ||
| Minimum (1) | (mm × mm) | 2.0 x 2.6 |
| Maximum (1, 2) | (mm × mm) | 12.0 x 10.6 |
| Advanced optical specifications | ||
| Working distance with minimum object (3) | (mm) | 21.3 |
| Working distance with maximum object (2, 3) | (mm) | 0.0 |
| Angle of view | (deg) | 21 |
| ƒ/N (4) | 23 | |
| Mechanical specifications | ||
| Mount | C | |
| Length (5) | (mm) | 129.6 |
| Diameter | (mm) | 35.0 |
| Mass | (g) | 132 |
Last update 18 Nov 2025
Notes
- For the complete information about the inspectable field of view, see the datasheet of the objective
- The maximum inspectable field of view is given considering zero working distance. While keeping the diameter constant, a working distance greater than zero will decrease the height of the inspectable object accordingly.
- Working distance: distance between the front end of the mechanics and the object.
- The f-number could be changed using the variable iris.
- Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA16-GM-10C
Area scan camera 1456 x 1088 MP, Sony IMX273, CMOS Global shutter, 1/2.9", Mono, 1 GigE, POE, C mount
ITA16-GC-10C
Area scan camera 1456 x 1088 MP, Sony IMX273, CMOS Global shutter, 1/2.9", Color, 1 GigE, POE, C mount
ITA24-GC-10C
Area scan camera 1936 x 1216 MP, Sony IMX392, CMOS Global shutter, 1/2.3", Color, 1 GigE, POE, C mount
ITA24-GM-10C
Area scan camera 1936 x 1216 MP, Sony IMX392, CMOS Global shutter, 1/2.3", Mono, 1 GigE, POE, C mount
LTRNHP035W45
High power LED ring illuminators, oblique type, inner diam. 35.0 mm, white, 6200 K
LTRNHP035R45
High power LED ring illuminators, oblique type, inner diam. 35.0 mm, red, 625 nm
LTRNHP035G45
High power LED ring illuminators, oblique type, inner diam. 35.0 mm, green, 525 nm
LTRNHP035B45
High power LED ring illuminators, oblique type, inner diam. 35.0 mm, blue, 475 nm
Request a quote
Add this product to the quote request list.

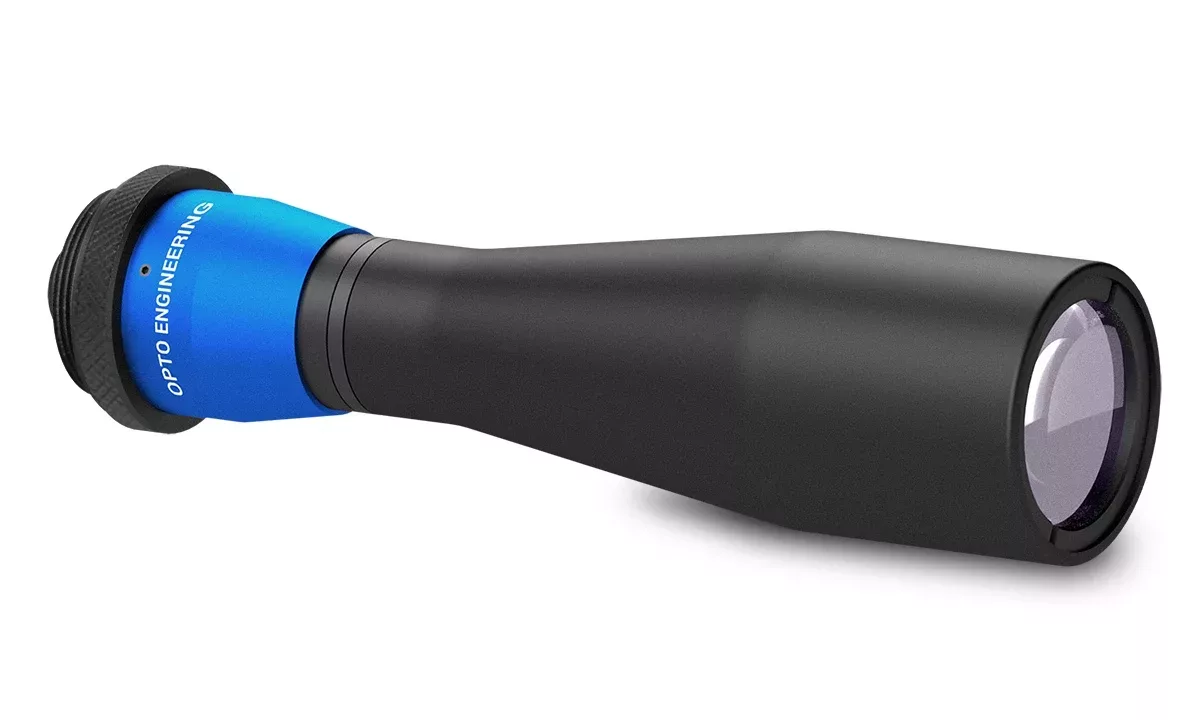

Product images
