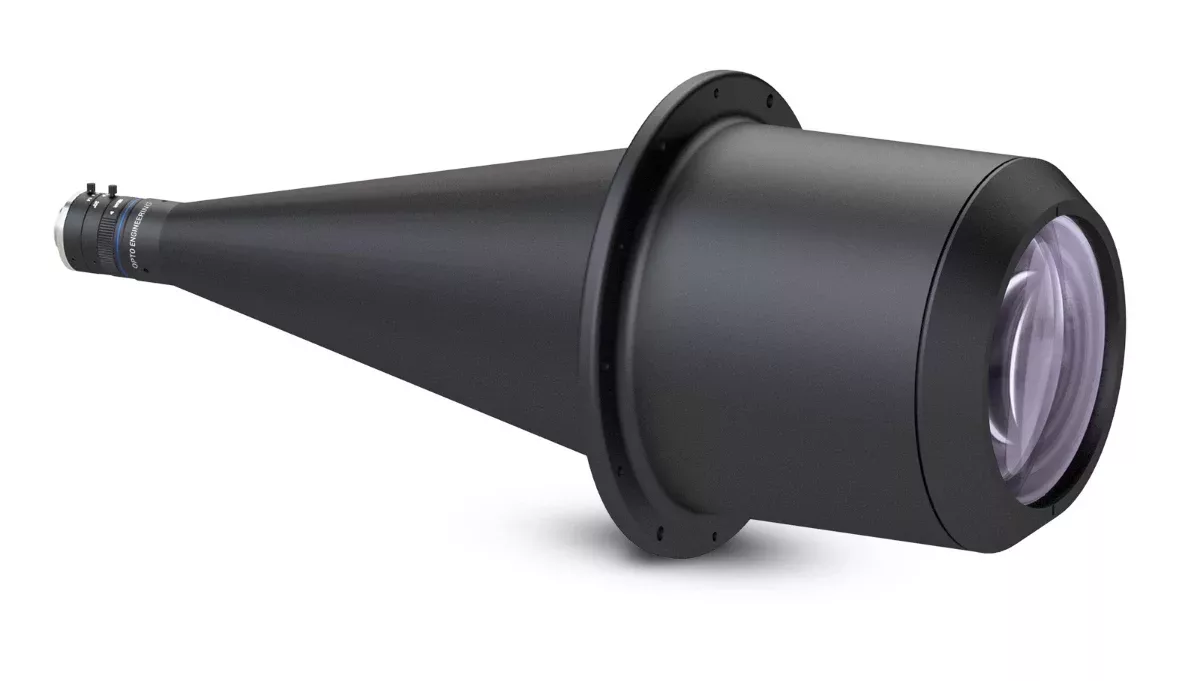

PC12030HP

Specifications

Main optical specifications
Image circle diameter (mm) 4.8
Max sensor size 1/2″
Field of view (diameter x height)
Minimum (mm × mm) 20.0 x 60.0
Maximum (mm × mm) 60.0 x 20.0
Advanced optical specifications
Working distance with minimum object (1) (mm) 80.0
Working distance with maximum object (1) (mm) 20.0
Viewing angle (deg) 24
Working ƒ/N (2) 16
Mechanical specifications
Mount C
Length (3) (mm) 451.5
Diameter (mm) 157.0
Mass (g) 6667

Last update 28 Sep 2022

REACH
PATENT_PENDING

Notes

  1. Working distance: distance between the front end of the mechanics and the object.
  2. The design working f-number (wf/N) is specified. The working f-number could be changed using the variable iris.
  3. Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Required field
Required field
Required field
Required field
Required field
Required field
Required field
Minimun length: 6 characters
Required field
captcha
Required field

Compatible products

Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
LTRNHP245R25
High power LED ring illuminators, oblique type, inner diam. 157.0 mm, red, 625 nm
LTRNHP245G25
High power LED ring illuminators, oblique type, inner diam. 157.0 mm, green, 525 nm
LTRNHP245B25
High power LED ring illuminators, oblique type, inner diam. 157.0 mm, blue, 475 nm
LTRNHP245W25
High power LED ring illuminators, oblique type, inner diam. 157.0 mm, white, 6200 K
LTRN245R25
Ring LED illuminator, inner diameter 157.0 mm, oblique type, red, 630 nm
LTRN245G25
Ring LED illuminator, inner diameter 157.0 mm, oblique type, green, 525 nm
LTRN245B25
Ring LED illuminator, inner diameter 157.0 mm, oblique type, blue, 470 nm
LTRN245W25
Ring LED illuminator, inner diameter 157.0 mm, oblique type, white, 6300 K
COE-U series
COE-U series
GenICam® C-mount USB3 cameras
COE-013-M-USB-030-IR-C
Area scan camera PYTHON 1300, CMOS, Global shutter, 1280 x 1024, 1.3 MP, 4.8 μm, 1/2", Mono, 210.0 fps, USB 3.0, C-mount, AR
COE-013-C-USB-030-IR-C
Area scan camera PYTHON 1300, CMOS, Global shutter, 1280 x 1024, 1.3 MP, 4.8 μm, 1/2", Color, 210.0 fps, USB 3.0, C-mount, IR cut
COE-G series
COE-G series
GenICam® PoE C-mount cameras
COE-013-M-POE-030-IR-C
Area scan camera PYTHON 1300, CMOS, Global shutter, 1280 x 1024, 1.3 MP, 4.8 μm, 1/2", Mono, 90.0 fps, 1 GigE, POE, C-mount, AR filter
COE-013-C-POE-030-IR-C
Area scan camera PYTHON 1300, CMOS, Global shutter, 1280 x 1024, 1.3 MP, 4.8 μm, 1/2", Color, 90.0 fps, 1 GigE, POE, C-mount, IR cut filter
COE-032-M-POE-040-IR-C
Area scan camera IMX265, CMOS, Global shutter, 2048 x 1536, 3.1 MP, 3.45 μm, 1/1.8", Mono, 37.5 fps, 1 GigE, POE, C-mount, AR filter
COE-032-C-POE-040-IR-C
Area scan camera IMX265, CMOS, Global shutter, 2048 x 1536, 3.1 MP, 3.45 μm, 1/1.8", Color, 37.5 fps, 1 GigE, POE, C-mount, IR cut filter
