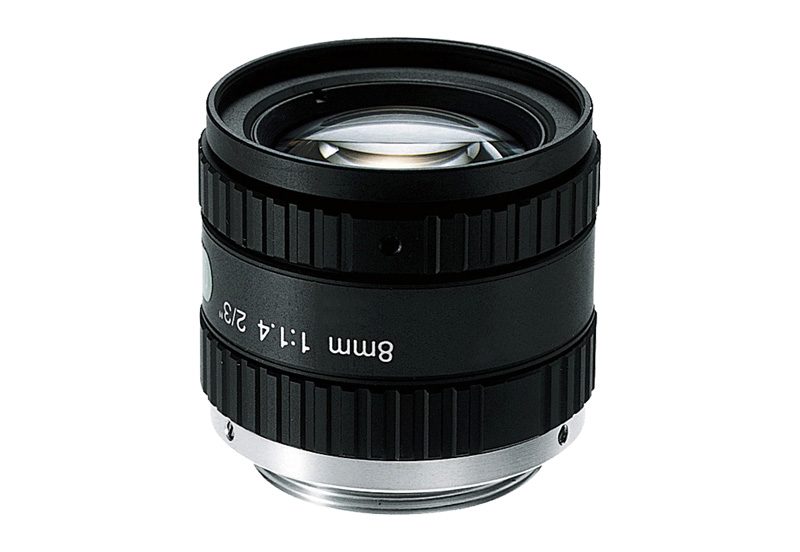

RT-M0814-MP2
Specifications
Downloads
Compatible products
Main optical specifications
Focal length (mm) 8
Magnification (1) (x) 0.074
Image circle diameter (mm) 11.0
Max sensor size 2/3″
Angle of view
1/3” (deg) -
1/2” (deg) 51.9
2/3” (deg) 67.1
Object field of view
1/3” (1) -
1/2” (1) 86.49 x 64.86
2/3” (1) 114.86 x 95.81
Advanced optical specifications
Working distance range (2) (m) 0.1 - inf
ƒ/N 1.4 - 16
Back focal length (mm) 13.1
Distortion on 1/3" (3) (%) -
Distortion on 1/2" (3) (%) 1.10
Distortion on 2/3" (3) (%) 0.10
Mechanical specifications
Iris control Manual
Focus control Manual
Mount C
Filter thread M30.5 x 0.5
Outer diameter (mm) 33.5
Length (4) (mm) 28.2
Mass (g) 63

Last update 02 Aug 2023

REACH

Notes

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinite focusing.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Datasheet

Download datasheet

Layout files

PDF
DXF
IGS
STP
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA50-GM-10C
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Mono, 1 GigE, POE, C mount
ITA50-GC-10C
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Color, 1 GigE, POE, C mount
ITA50-GM-10C-PL
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Polar Mono, 1 GigE, POE, C mount
ITA50-GC-10C-PL
Area scan camera 2464 x 2056 MP, Sony IMX264, CMOS Global shutter, 2/3", Polar Color, 1 GigE, POE, C mount
ITA81-GM-20C
Area scan camera 2856 x 2848 MP, Sony IMX546, CMOS Global shutter, 2/3", Mono, 1 GigE, POE, C mount
ITA81-GC-20C
Area scan camera 2856 x 2848 MP, Sony IMX546, CMOS Global shutter, 2/3", Color, 1 GigE, POE, C mount
FTBP470M30.5
Optical filter, band pass, blue
FTBP525M30.5
Optical filter, band pass, green
FTBP635M30.5
Optical filter, band pass, red
FTBP660M30.5
Optical filter, band pass, dark red
FTBP850M30.5
Optical filter, band pass, IR
FTSP450M30.5
Optical filter, short pass, dark blue
FTSP500M30.5
Optical filter, short pass, blue
FTSP570M30.5
Optical filter, short pass, cyan
FTSP700M30.5
Optical filter, UV+NIR cut off, VIS
FTLP510M30.5
Optical filter, long pass, yellow
FTLP550M30.5
Optical filter, long pass, orange
FTLP590M30.5
Optical filter, long pass, red
FTLP640M30.5
Optical filter, long pass, dark red
