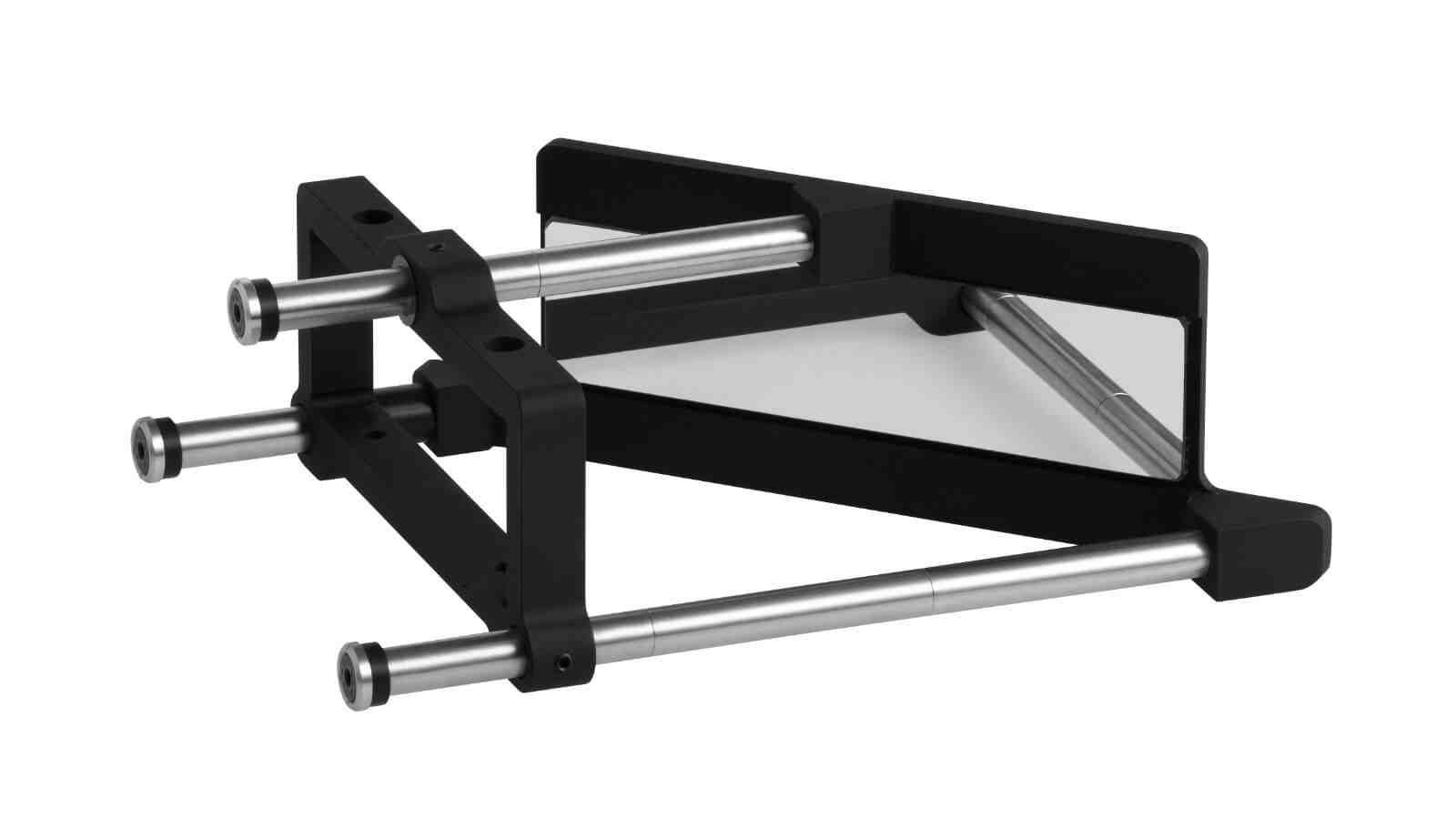

CMMR4K090-L

Specifications

Main optical specifications
Coating Aluminium refletive coating, R>90%, bandwidth 430-670 nm
Deviation angle (deg) 90
Mechanical specifications
Clamping size (mm) 114.0 x 38.5
Clamping system mounting screws
Working distance difference (1) (mm) 126.3
Length (mm) 214.0
Width (mm) 150.1
Height (mm) 72.0
Mass (g) 565
Compatible products
Compatible telecentric lenses TC4K090-x
Compatible illuminators LTCL4K090-x
Protective windows (2) N.A.

Last update 28 Sep 2022

REACH

Notes

  1. Value to be subtracted from the objective or illuminator working distance when the CMMR is used. For the CMMR4K Series, the minumum value is reported.
  2. To be ordered separately

Ordering information

Additional clamping mechanics are required to adequately support combination of CMMR with telecentric lenses and illuminators. CMHO series clamping mechanics can be used prior to verification of mechanical compatibility (see CMHO series mechanical drawings available online). CMHO is not compatible with the combination of the following two products: CMMR and TC13xxx.
