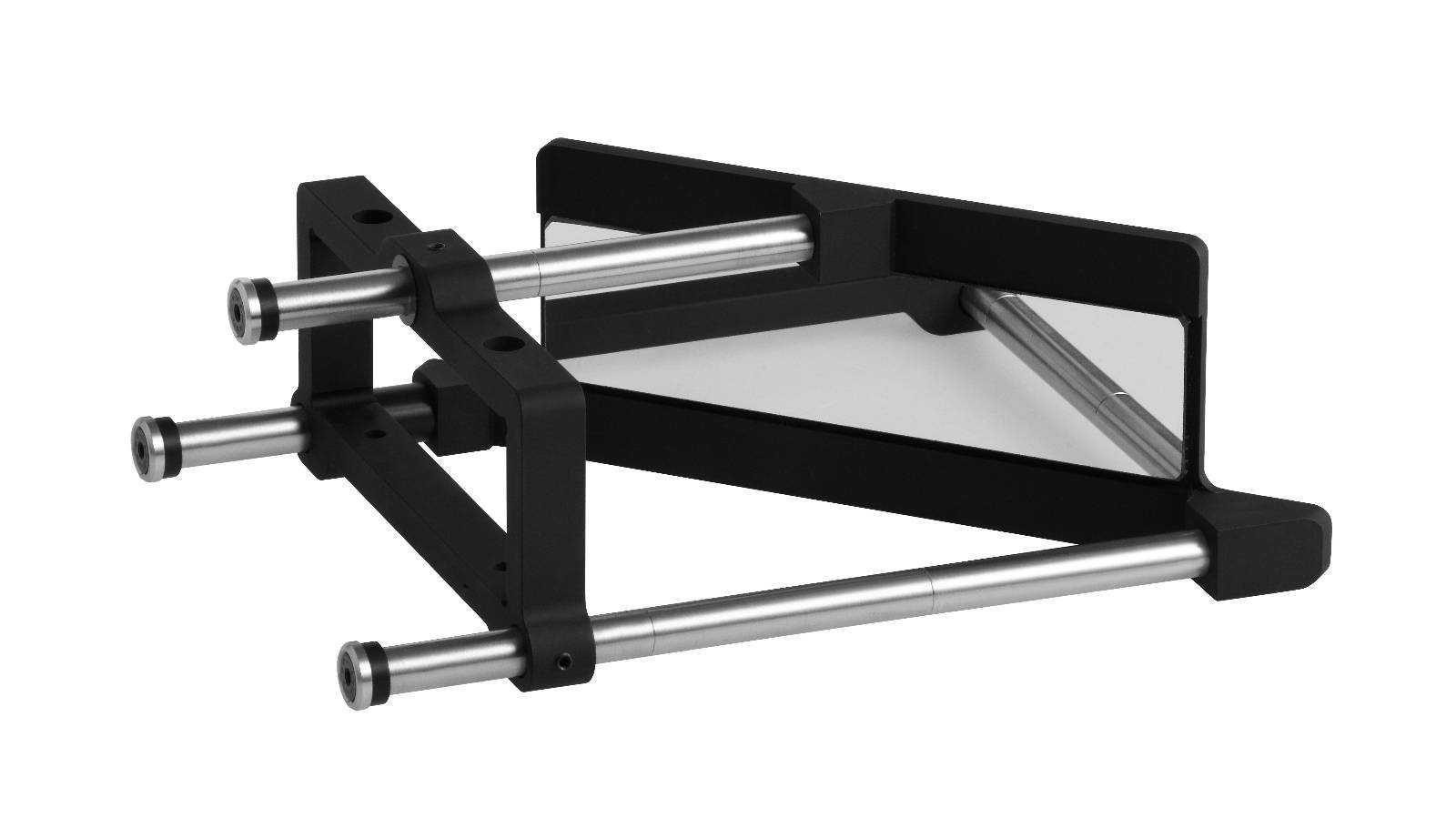

CMMR4K060-L
Specifications
Downloads
Compatible products
Main optical specifications
Coating Aluminium reflective coating, R>90%, bandwidth 430-670 nm
Deviation angle (deg) 90
Protective window No
Mechanical specifications
Clamping size (mm) 83.0 x 38.5
Clamping system mounting screws
Working distance difference (1) (mm) 94.6
Length (mm) 208.5
Width (mm) 118.4
Height (mm) 72.0
Mass (g) 518

Last update 17 Sep 2024

REACH

Notes

  1. Value to be subtracted from the objective or illuminator working distance when the CMMR is used. For the CMMR4K Series, the minumum value is reported.

Ordering information

Additional clamping mechanics are required to adequately support combination of CMMR with telecentric lenses and illuminators. CMHO series clamping mechanics can be used prior to verification of mechanical compatibility (see CMHO series mechanical drawings available online). CMHO is not compatible with the combination of the following two products: CMMR and TC13xxx.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
CMMR instructions

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
SLDPRT
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
TC4K060-F
Telecentric lens for 4k line scan cameras, magnification 0.478x, mount F
TC4K060-N
Telecentric lens for 4k line scan cameras, magnification 0.478x, mount M42x1 FD 10.56
TC4K060-J
Telecentric lens for 4k line scan cameras, magnification 0.478x, mount M42x1 FD 12
LTCL4K060-G
Telecentric illuminator for line scan cameras, beam dimension 71 x 10 mm, green, 525 nm
LTCL4K060-W
Telecentric illuminator for line scan cameras, beam dimension 71 x 10 mm, white, 6000 K
