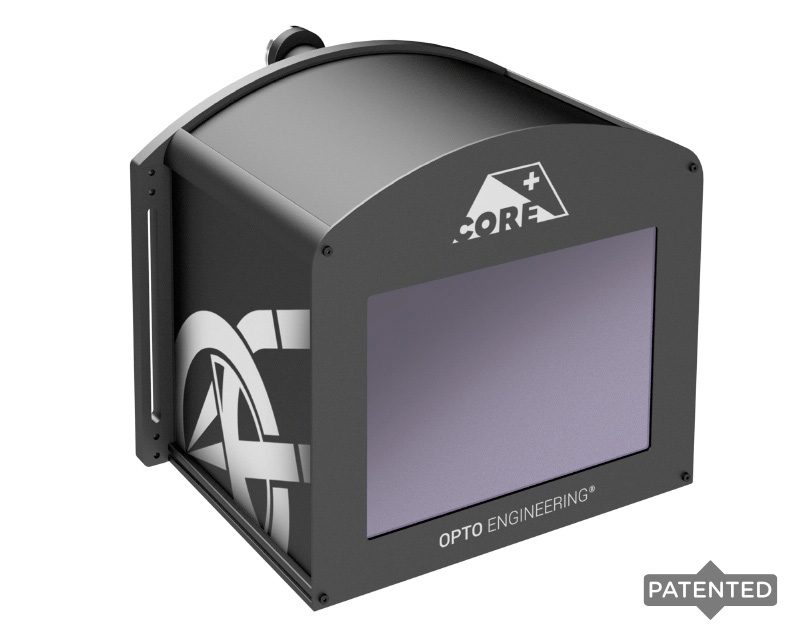

TCCP5MHR260-F
Specifications
Downloads
Compatible products
Main optical specifications
Magnification (x) 0.072
Image shape dimension (1) (mm x mm) 19.82 x 14.88
Max sensor size 4/3″
Object field of view
1/1.2″ (mm × mm) 157.64 x 99.03
1″ (mm × mm) 197.08 x 104.31
1.1″ (mm × mm) 196.67 x 144.03
1.3" (mm × mm) 200.00 x 200.00
4/3″ (mm × mm) 262.92 x 147.36
Advanced optical specifications
Working distance (2) (mm) 346.0
Working ƒ/N (3) 12
Telecentricity typical (max) (4) (deg) < 0.18 (0.22)
Distortion typical (max) (5) (%) < 0.9
Residual distortion (6) (%) < 0.01
Depth of field (7) (mm) 119.80
Resolution (8) (μm) 106
Mechanical specifications
Mount F
Phase adjustment (9) Yes
Dimension A (10) (mm) 480
Dimension B (mm) 397
Dimension C (11) (mm) 441
Mass (g) 12635

Last update 05 Sep 2023

REACH
PATENTED

Notes

  1. Given the squared shape of the front window, the lens forms a rectangular image (Tech Info for related drawing).
  2. Working distance: distance between the front end of the mechanics and the object. Set this distance within ± 5% of the nominal value for maximum resolution and minimum distortion.
  3. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  4. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  5. Percent deviation of the real image compared to an ideal, undistorted image: maximum (guaranteed) values of the uncorrected image are listed.
  6. Residual distortion after calibration with TCLIB Suite software library, using a PTCP calibrations pattern and a fully GenICam compliant camera. For setup information see related table.
  7. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  8. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
  9. Indicates the availability of an integrated camera phase adjustment feature.
  10. Maximum dimension of the clamping flange.
  11. Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
Back focal adjustment

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
SLDPRT
