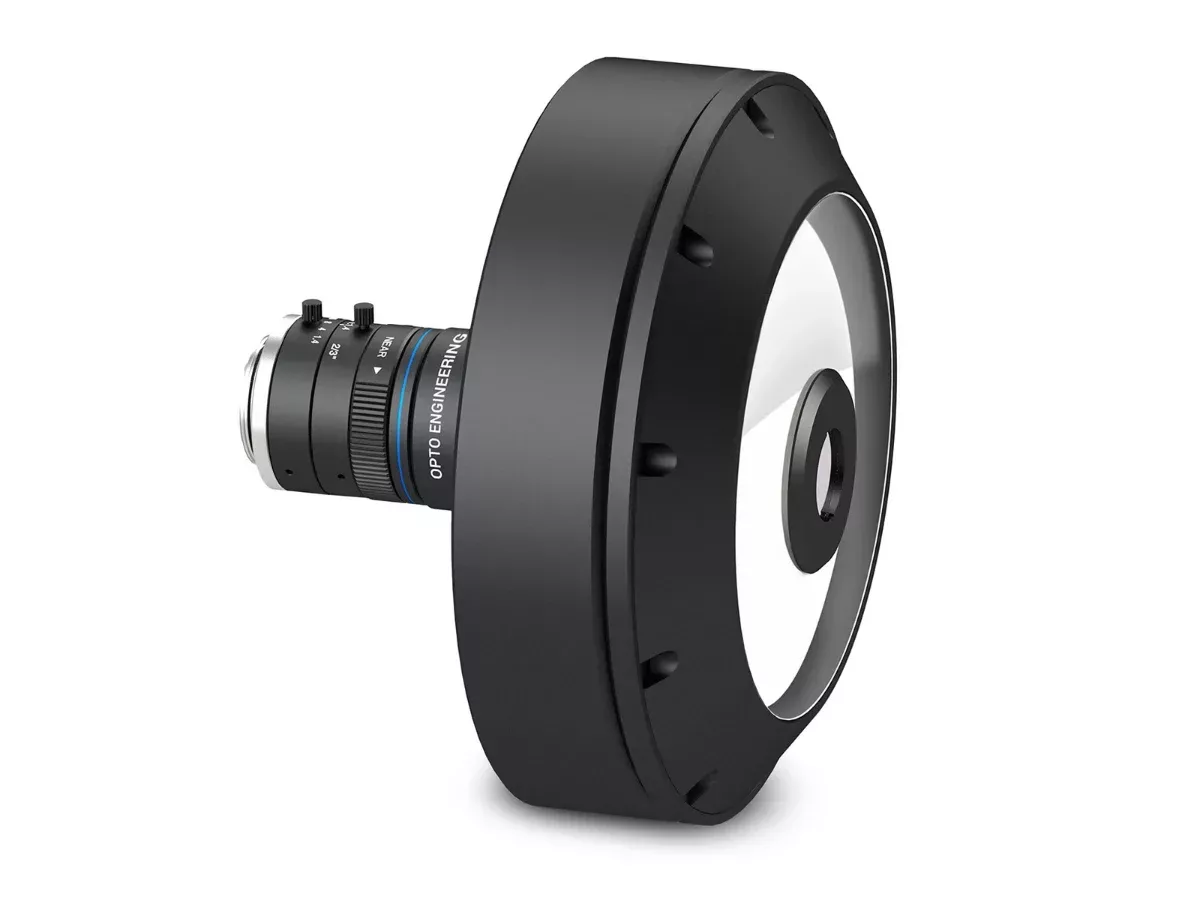

Main optical specifications | ||
Image circle diameter | (mm) | 4.8 |
Min sensor size | 1/2" |
Field of view (diameter x height) | ||
Minimum (1) | (mm × mm) | 7.5 x 4.2 |
Medium (1) | (mm × mm) | 35.0 x 24.2 |
Maximum (1, 2) | (mm × mm) | 75.0 x 2.5 |
Advanced optical specifications | ||
Working distance with minimum object (3) | (mm) | 50.5 |
Working distance with medium object (3) | (mm) | 9.2 |
Working distance with maximum object (2, 3) | (mm) | 0.0 |
Angle of view | (deg) | 35 |
ƒ/N (4) | 1.4 - C |
Mechanical specifications | ||
Mount | C | |
Diameter | (mm) | 143.0 |
Length (5) | (mm) | 108.0 |
Mass | (g) | 988 |
Last update 15 Feb 2024
Notes
- For the complete information about the inspectable field of view, see the datasheet of the objective
- The maximum inspectable field of view is given considering zero working distance. Depending on the application, a working distance greater than zero will decrease the height of the inspectable object accordingly.
- Working distance: distance between the front end of the mechanics and the object.
- The f-number could be changed using the variable iris.
- Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA32-GM-10C
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount
ITA32-GC-10C
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount
ITA51-GM-20C
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount
ITA51-GC-20C
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount
LTRN165R45
Ring LED illuminator, inner diameter 135.0 mm, oblique type, red, 630 nm
LTRN165G45
Ring LED illuminator, inner diameter 135.0 mm, oblique type, green, 525 nm
LTRN165B45
Ring LED illuminator, inner diameter 135.0 mm, oblique type, blue, 470 nm
LTRN165W45
Ring LED illuminator, inner diameter 135.0 mm, oblique type, white, 6300 K
LTRN165IR45
Ring LED illuminator, inner diameter 135.0 mm, oblique type, IR, 850 nm
LTRN165UV45
Ring LED illuminator, inner diameter 135.0 mm, oblique type, UV, 365 nm
LTRN245R35
Ring LED illuminator, inner diameter 143.0 mm, oblique type, red, 630 nm
LTRN245G35
Ring LED illuminator, inner diameter 143.0 mm, oblique type, green, 525 nm
LTRN245B35
Ring LED illuminator, inner diameter 143.0 mm, oblique type, blue, 470 nm
LTRN245W35
Ring LED illuminator, inner diameter 143.0 mm, oblique type, white, 6300 K
LTRN245IR35
Ring LED illuminator, inner diameter 143.0 mm, oblique type, IR, 850 nm
LTRN245UV35
Ring LED illuminator, inner diameter 143.0 mm, oblique type, UV, 365 nm
LTRNHP165R45
High power LED ring illuminators, oblique type, inner diam. 132.5 mm, red, 625 nm
LTRNHP165G45
High power LED ring illuminators, oblique type, inner diam. 132.5 mm, green, 525 nm
LTRNHP165B45
High power LED ring illuminators, oblique type, inner diam. 132.5 mm, blue, 475 nm
LTRNHP165W45
High power LED ring illuminators, oblique type, inner diam. 132.5 mm, white, 6200 K
CMHOPCCD
Clamping mechanics for PCCD lenses
PCCDLFAT
Interchangeable attachment for extra-wide PCCD field of view
