| Main optical specifications | ||
| Image circle diameter | (mm) | 4.6 |
| Min sensor size | 1/2" | |
| Field of view (diameter x height) | ||
| Minimum | (mm × mm) | 25.0 x 11.0 |
| Maximum | (mm × mm) | inf x inf |
| Advanced optical specifications | ||
| Angle of view | (deg) | 60 |
| Working ƒ/N (1) | 16 | |
| Focusing | Manual | |
| Light color | (nm) | white |
| Electrical specifications | ||
| Supply voltage (2) | (V) | 24 |
| Current (3) | (mA) | 40 |
| Power consumption (3) | (W) | 1.0 |
| Typical pulse voltage (4) | (V) | 40 |
| Max pulse current (5) | (mA) | 100 |
| Peak power consumption | (W) | 4 |
| Max pulse duration | (ms) | 1 |
| Max duty-cycle | (%) | 1.5 |
| Liquid lens specifications | ||
| Liquid lens model | - | |
| Temperature sensor | - | |
| Focal power mode | - | |
| Response time | (ms) | - |
| Setting time | (ms) | - |
| Current range | (mA) | - |
| Lifecycles (10%-90% sinusoidal) | - | |
| Connector | - | |
| Mechanical specifications | ||
| Mount | C | |
| Phase adjustment | No | |
| Total length (6) | (mm) | 137.1 |
| Probe length | (mm) | 129.1 |
| Probe diameter | (mm) | 21 |
| Mass | (g) | 90 |
| Environmental specifications | ||
| Operating temperature | (°C) | 0-40 |
| Storage temperature | (°C) | 0-50 |
| Operating relative humidity | (%) | 20-85, non condensing |
| Installation | Indoor use only | |
| Eye safety | ||
| Risk group according to CEI EN 62471:2010 | Risk group 1 | |
Last update 05 Apr 2024
Notes
- Working f-number (wf/N): the real f-number of a lens in operating conditions.
- Tolerance ± 2%
- Used in continuous (non-pulsed) mode.
- Constant voltage power supply
- Constant current power supply
- Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA32-GM-10C
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount
ITA32-GC-10C
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount
ITA51-GM-20C
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount
ITA51-GC-20C
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount
PCBPTIP
Replacement tip for boroscopic probes, PCBP series
Request a quote
Add this product to the quote request list.

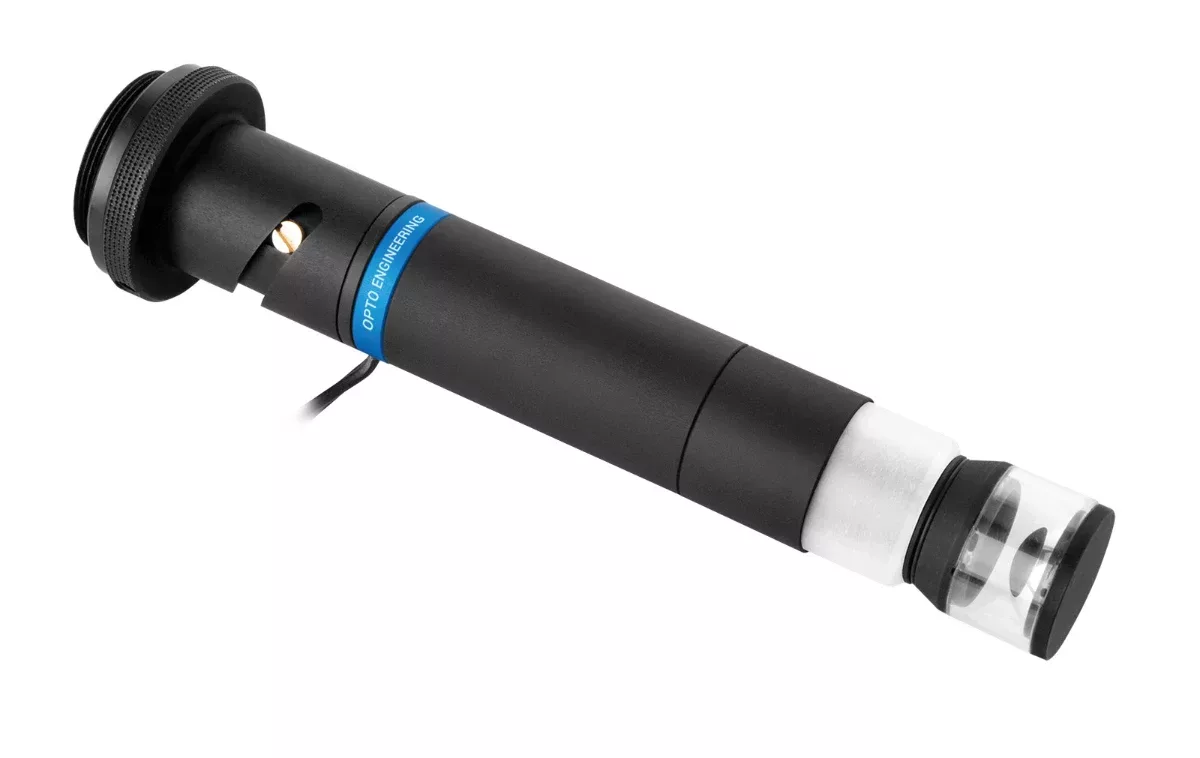

Product images
