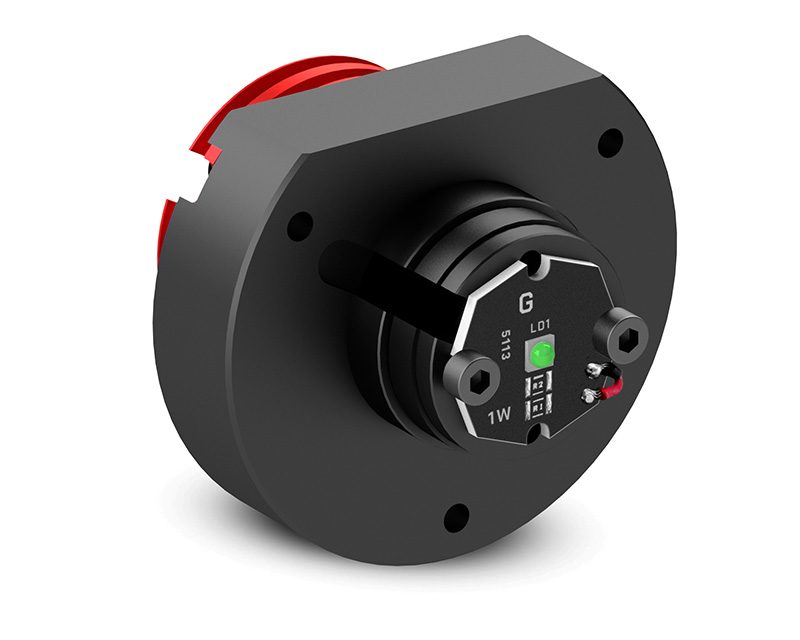

LTSCCP1W-G
Specifications
Downloads
Compatible products
Lighting specifications
Light color, peak wavelength green, 525 nm
Spectral FWHM (nm) 40
Diffusive diameter (mm) 24
Electrical specifications
Supply voltage (1) (V) 12-24
Max power consumption (W) 2.5
LED forward voltage typical (max) (2) (V) 3.3 (4.0)
Max LED forward current (3) (mA) 350
Max pulse current (4) (mA) 2000
Connector M8
Cables CB244P1500 included
Mechanical specifications
Diameter (mm) 60.0
Length (mm) 67.4
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
Installation Indoor use only
Eye safety
Risk group according to CEI EN 62471:2010 Risk group 1

Last update 23 Jul 2024

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. Tolerance ± 10%
  2. At max forward current. Tolerance is ± 0.06V on forward voltage measurements
  3. In continuous mode (non-pulsed)
  4. At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
LTCLHP manual

Datasheet

Download datasheet
