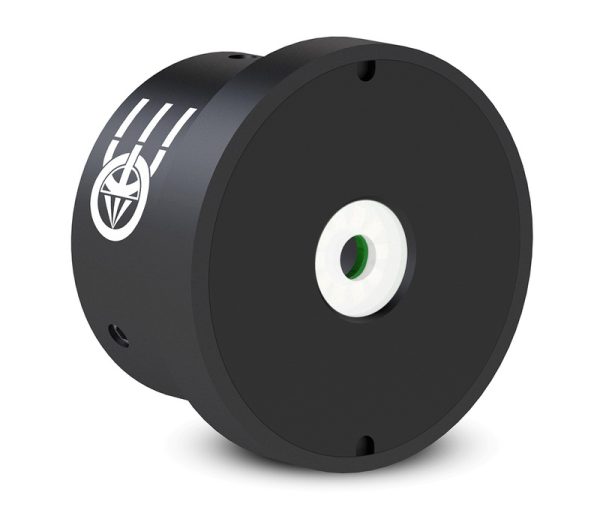

LTRNHCNW

Home Lighting LTRNST series

LTRNHCNW

Specifications

Downloads

Compatible products

Lighting specifications
Illumination area outer diameter	(mm)	10.0
Illumination area inner diameter	(mm)	4.0
Emission angle	(deg)	0
Optimal working distance	(mm)	2-30
Number of LED rows		1
Light color, peak wavelength		white, 6500 K
Illuminance at minimum working distance (1)	(lux)	487000
Illuminance at maximum working distance (1)	(lux)	21500

Electrical specifications
Supply voltage (2)	(V)	24
Current	(mA)	110
Power consumption	(W)	2.6
Estimated MTBF (3)	(hours)	-
Max pulse voltage (4)	(V)	16
Max pulse current (5)	(mA)	2400
Max duty-cycle	(%)	1
Max pulse duration	(ms)	1
Connector		Flying leads
Cable length	(mm)	450

Mechanical specifications
Outer diameter	(mm)	37.0
Inner diameter	(mm)	4.0
Height	(mm)	22.0
Mass	(g)	33

Environmental specifications
Operating temperature	(°C)	0-45
Operating relative humidity	(%)	20-85, non condensing

Eye safety
Risk group according to CEI EN 62471:2010		Risk group 1

Last update 28 Feb 2025

Notes

± 15%.
Tolerance ± 2%.
At 25°C.
Constant voltage power supply.
Constant current power supply.

All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide

pdf

Datasheet

Download datasheet

PDF

Layout files

DXF

IGS

PDF

STEP

SLDPRT

Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
