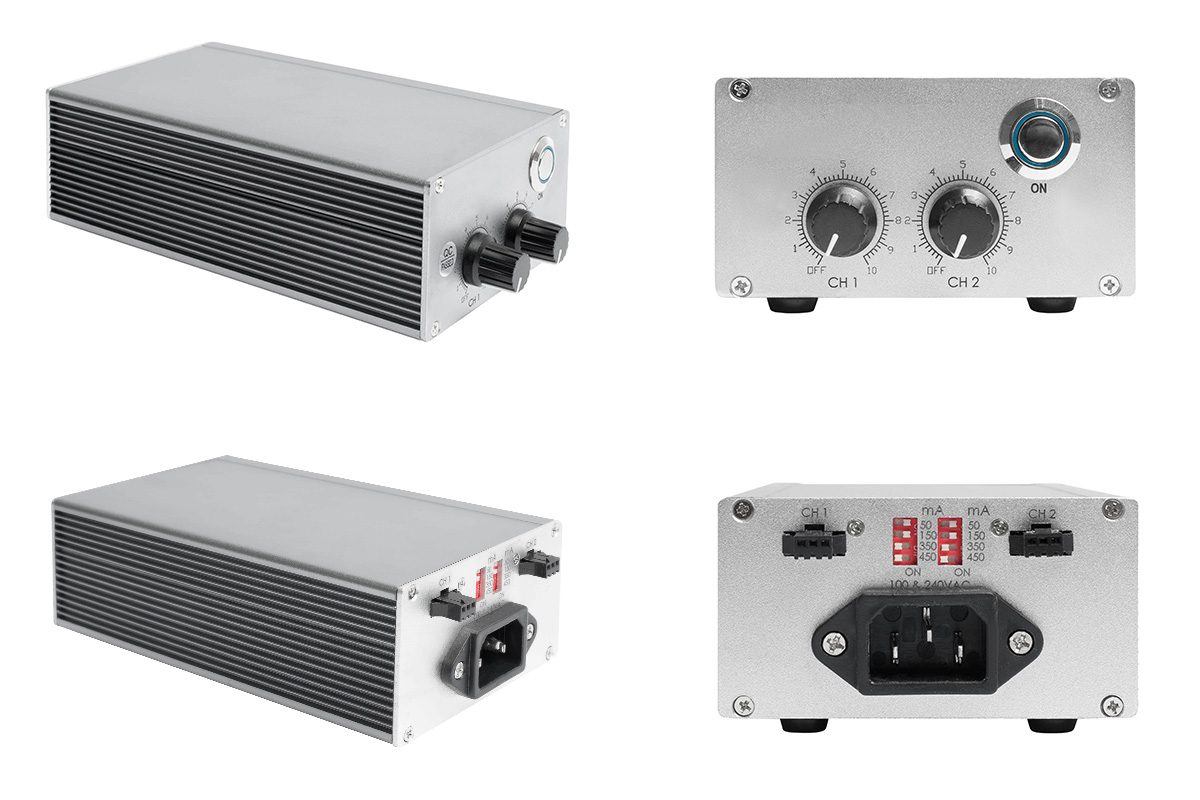

LTICOBU2000CH2-24V-A1USTB

Specifications

Electrical specifications
Light control type Analog (knob)
Operating mode Continuous
Status LED No
Supply voltage (V) 100-240 AC
Input -
Output channels 2, constant current
Output voltage (V) 24
Max output current (A) 1
Max output power (W) 24
Output -
Power cord Included (US)
Mechanical specifications
Length (mm) 154
Width (mm) 91
Height (mm) 48
Mass (g) 495
Mounting Benchtop
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
IP rating IP20
Installation Indoor use only

Last update 18 Nov 2022

CE
ROHS
REACH
WEEE
UKCA
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
