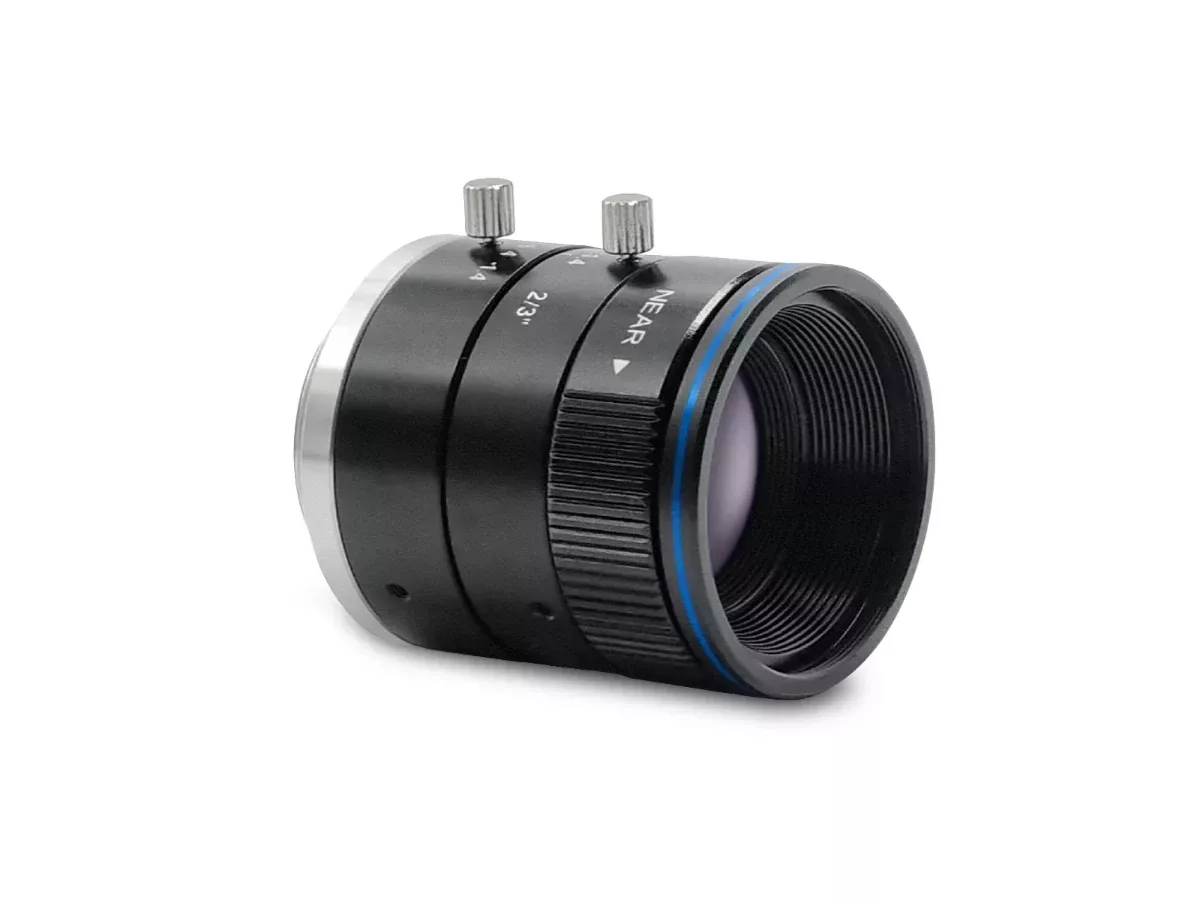

EN2MP2514
Specifications
Downloads
Compatible products
Main optical specifications
Focal length (mm) 25
Magnification (1) (x) 0.100
Image circle diameter (mm) 11.0
Max sensor size 2/3″
Angle of view
1/3” (deg) 13.7
1/2” (deg) 18.1
1/1.8" (deg) 20.4
2/3” (deg) 24.7
Object field of view
1/3” (1) 48.00 x 36.00
1/2” (1) 64.00 x 48.00
1/1.8" (1) 71.20 x 53.30
2/3” (1) 85.00 x 70.90
Advanced optical specifications
Working distance range (2) (m) 0.25 - inf
ƒ/N 1.4 - close
Back focal length (mm) 13.6
Distortion on 1/3" (3) (%) 0.04
Distortion on 1/2" (3) (%) 0.10
Distortion on 2/3" (3) (%) 0.27
Mechanical specifications
Iris control Manual
Focus control Manual
Mount C
Filter thread M30.5 x 0.5
Outer diameter (mm) 34.0
Length (4) (mm) 35.6
Mass (g) 83
Environmental specifications
Operating temperature (°C) -10-+50

Last update 31 Jul 2023

REACH
PAP20

Notes

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinite focusing.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide

Datasheet

Download datasheet

Layout files

DXF
PDF
STEP
