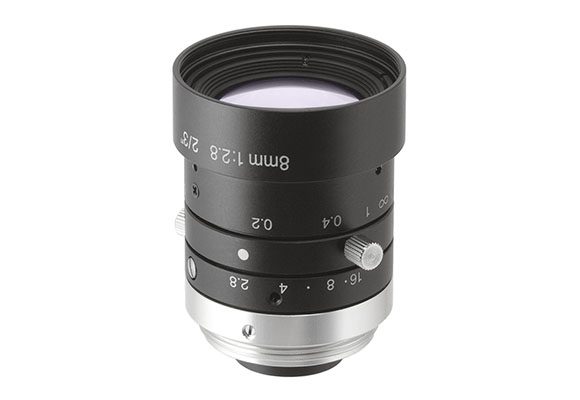

RT-M0828-MPW3

Specifications

Main optical specifications
Focal length (mm) 8
Magnification (1) (x) 0.073
Image circle diameter (mm) 11.0
Max sensor size 2/3″
Viewing angle
1/2.5" (deg) 47.2
1/1.8" (deg) 57.7
2/3” (deg) 68.5
Object field of view
1/2.5" (1) 78.08 x 58.63
1/1.8" (1) 97.67 x 73.01
2/3” (1) 116.44 x 97.12
Advanced optical specifications
Working distance range (2) (m) 0.1 - inf
ƒ/N 2.8 - 16
Back focal length (mm) 9.2
Distortion on 1/2.5" (3) (%) 1.28
Distortion on 1/1.8" (3) (%) 1.68
Distortion on 2/3" (3) (%) 1.80
Mechanical specifications
Iris control Manual
Focus control Manual
Mount C
Filter thread M30.5 x 0.5
Outer diameter (mm) 32.0
Length (4) (mm) 35.5
Mass (g) 58

Last update 28 Sep 2022

REACH

Notes

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinite focusing.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
