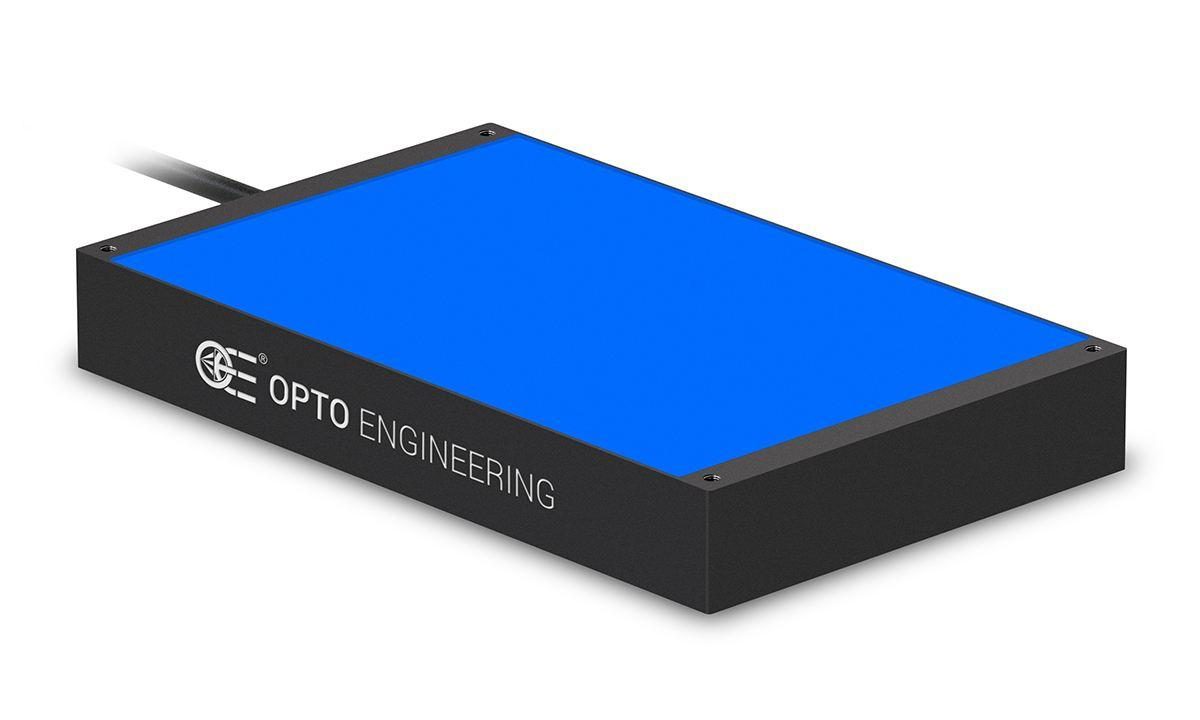

LT3BC100150-B
Specifications
Downloads
Compatible products
Lighting specifications
Illumination area height (mm) 100.0
Illumination area width (mm) 150.0
Number of LEDs 216
Light color, peak wavelength blue, 465 nm
Spectral FWHM (nm) 30
Illuminance (continuous) (1) (klux) 9
Irradiance (continuous) (1) (W/m2) 377
Illuminance (boosted) (1) (klux) 18
Irradiance (boosted) (1) (W/m2) 747
Illuminance (strobe) (1) (klux) 46
Irradiance (strobe) (1) (W/m2) 2060
Diffuser yes
Collimation film optional
Electrical specifications
Operating mode Continuous and strobe
Supply voltage (V) 24
Current (continuous) (mA) 840
Power consumption (continuous) (W) 20.2
Current (boosted) (mA) 1680
Power consumption (boosted) (W) 40.3
Peak current (strobe) (mA) 4800
Peak power consumption (strobe) (W) 115.0
Min pulse duration (µs) 3
Max pulse duration (ms) 10
Max duty-cycle (%) 10
typical_pulse delay (ns) 300
Typical jitter (ns) 10
I/O interface PNP logic input, NPN logic input, analog dimming input
Connector 1x M12 straight plug male connector
Cables not included
Mechanical specifications
Height (mm) 108.0
Width (mm) 176.0
Thickness (mm) 24.0
Mass (g) 450
Clamping system 4x M4 threaded holes
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
Installation Indoor use only
IP rating IP54
Eye safety
Risk group according to CEI EN 62471:2010 Risk group 1

Last update 01 Jul 2024

CE
FCC
UKCA
ROHS
REACH
WEEE

Notes

  1. At emitting surface.

Ordering information

Our part numbers are coded as LT3BC zzz yyy - x, where:
- zzz defines the illumination area height (in mm),
- yyy defines the illumination area width (in mm),
- x defines the color. R = red, G = green, B = blue, W = white, IR850 = Infrared 850 nm.

LT3BC backlights feature a wide range of compatible optical filters to be ordered separately:
- for horizontal/vertical linear polarizers, refer to PLLT series,
- for collimating filters, refer to CLLT series,
- for protective covers, refer to PCLT series.
Contact us for more customization options.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
