| Lighting specifications | ||
| Illumination area height | (mm) | 100.0 |
| Illumination area width | (mm) | 100.0 |
| Number of LEDs | 144 | |
| Light color, peak wavelength | red, 625 nm | |
| Spectral FWHM | (nm) | 20 |
| Illuminance (continuous) (1) | (klux) | 27 |
| Irradiance (continuous) (1) | (W/m2) | 116 |
| Illuminance (boosted) (1) | (klux) | 54 |
| Irradiance (boosted) (1) | (W/m2) | 239 |
| Illuminance (strobe) (1) | (klux) | 231 |
| Irradiance (strobe) (1) | (W/m2) | 980 |
| Diffuser | yes | |
| Collimation film | optional | |
| Electrical specifications | ||
| Operating mode | Continuous and strobe | |
| Supply voltage | (V) | 24 |
| Current (continuous) | (mA) | 400 |
| Power consumption (continuous) | (W) | 9.6 |
| Current (boosted) | (mA) | 800 |
| Power consumption (boosted) | (W) | 19.2 |
| Peak current (strobe) | (mA) | 3200 |
| Peak power consumption (strobe) | (W) | 76.8 |
| Min pulse duration | (µs) | 3 |
| Max pulse duration | (ms) | 10 |
| Max duty-cycle | (%) | 10 |
| typical_pulse delay | (ns) | 300 |
| Typical jitter | (ns) | 10 |
| I/O interface | PNP logic input, NPN logic input, analog dimming input | |
| Connector | M12 straight plug male connector | |
| Cables | 1x 20 cm pigtail | |
| Mechanical specifications | ||
| Height | (mm) | 108.0 |
| Width | (mm) | 126.0 |
| Thickness | (mm) | 24.0 |
| Mass | (g) | 350 |
| Clamping system | 4x M4 threaded holes | |
| Environmental specifications | ||
| Operating temperature | (°C) | 0-40 |
| Storage temperature | (°C) | 0-50 |
| Operating relative humidity | (%) | 20-85, non condensing |
| Installation | Indoor use only | |
| IP rating | IP54 | |
| Eye safety | ||
| Risk group according to CEI EN 62471:2010 | Exempt | |
Last update 07 Mar 2024
Notes
- At emitting surface.
Ordering information
Our part numbers are coded as LT3BC zzz yyy - x, where:
- zzz defines the illumination area height (in mm),
- yyy defines the illumination area width (in mm),
- x defines the color. R = red, G = green, B = blue, W = white, IR850 = Infrared 850 nm.
LT3BC backlights feature a wide range of compatible optical filters to be ordered separately:
- for horizontal/vertical linear polarizers, refer to PLLT series,
- for collimating filters, refer to CLLT series,
- for protective covers, refer to PCLT series.
Contact us for more customization options.
- zzz defines the illumination area height (in mm),
- yyy defines the illumination area width (in mm),
- x defines the color. R = red, G = green, B = blue, W = white, IR850 = Infrared 850 nm.
LT3BC backlights feature a wide range of compatible optical filters to be ordered separately:
- for horizontal/vertical linear polarizers, refer to PLLT series,
- for collimating filters, refer to CLLT series,
- for protective covers, refer to PCLT series.
Contact us for more customization options.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
PLLT3BC100100-H
Polarizer for LT3BC100100-X, LT3BC series
PLLT3BC100100-V
Polarizer for LT3BC100100-X, LT3BC series
CBLTM12-5P-2M
Illumination cable PVC black, Side 1 M12 female connector 5 poles, Side 2 cable end - 2 m
CBLTM12-5P-5M
Illumination cable PVC black, Side 1 M12 female connector 5 poles, Side 2 cable end - 5 m
CBLTM12-5P-10M
Illumination cable PVC black, Side 1 M12 female connector 5 poles, Side 2 cable end - 10 m
PCLT3BC100100
Protective cover for LT3BC100100-X, LT3BC series
CLLT3BC100100
Collimating filter for LT3BC100100-X, LT3BC series
Request a quote
Add this product to the quote request list.

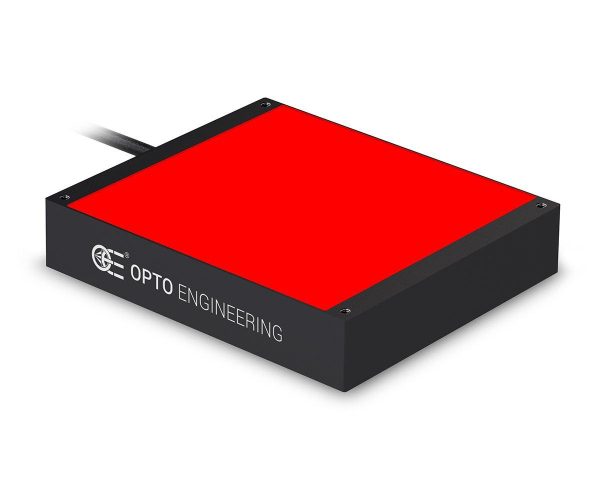

Product images
