Electrical specifications | ||
Type | Power | |
Number of poles | 4 | |
Conductor cross section | (AWG) | 24 |
Cable diameter | (mm) | 5 |
Cable length | (m) | 2 |
Cable insulation material | PVC | |
Shield | No | |
Bending cycles | (cycles) | - |
Minimum bending radius | (mm) | - |

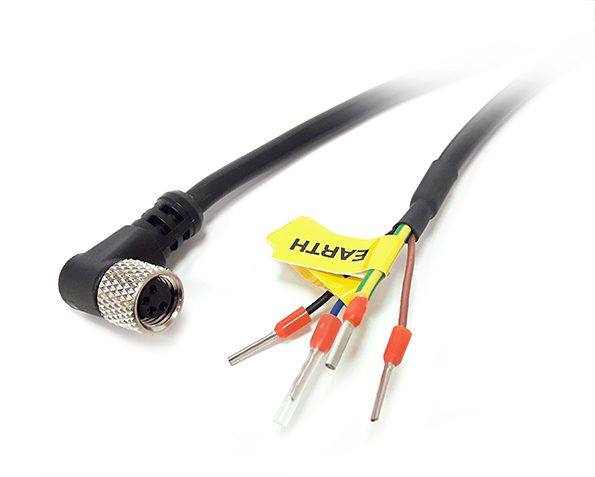

Side 1 | M8 angled plug female connector | |
Side 2 | Flying leads | |
Other | Type 2 labels | |
Voltage rating | 24 | |
Current rating | 2.0 |
Environmental specifications | ||
Operating temperature | (°C) | -25-+80 |
Last update 06 Jun 2024
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
TCCAGE12096
Bi-telecentric multi-mirror system for 1/2'' sensors
TCCAGE23096
Bi-telecentric multi-mirror system for 2/3'' sensors
TCCAGE2MHR096-C
Bi-telecentric multi-mirror system for 1" sensors
TCCAGE3MHR096-C
Bi-telecentric multi-mirror system for 1.1" sensors
TCCAGE4MHR096-C
Bi-telecentric multi-mirror system for 4/3" sensors
