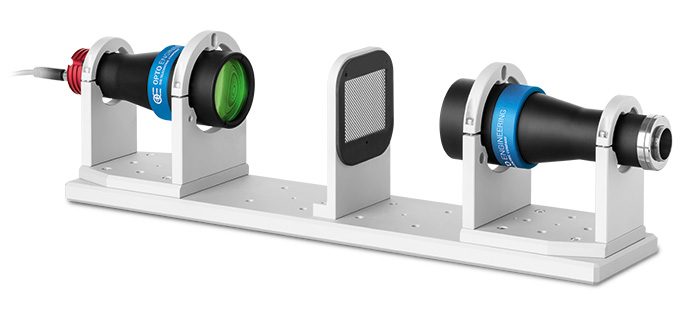

TCBENCH096
Specifications
Downloads
Compatible products
Main optical specifications
Magnification (x) 0.093
Image circle diameter (mm) 11.0
Max sensor size 2/3″
Object field of view
1/3” (mm × mm) 51.61 x 38.71
1/2.5” (mm × mm) 61.29 x 46.02
1/2” (mm × mm) 68.82 x 51.61
1/1.8” (mm × mm) 76.67 x 57.31
2/3” (mm × mm) 91.40 x 76.24
Advanced optical specifications
Working distance (1) (mm) 278.6
Working ƒ/N (2) 8
Telecentricity typical (max) (3) (deg) < 0.06 (0.08)
Distortion typical (max) (4) (%) < 0.04 (0.08)
Depth of field (5) (mm) 47.90
Resolution (6) (μm) 55
Electrical specifications
Light color, peak wavelength green, 520 nm
Supply voltage (V) 12-24
Max power consumption (W) 2.5
LED voltage (7) (V) 3.3 (4.0)
LED current (8) (mA) 350
Max pulse current (9) (mA) 2000
Mechanical specifications
Mount C
Phase adjustment No
Length (10) (mm) 1084
Width (mm) 185
Height (mm) 207
Mass (g) 15350
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
Installation Indoor use only
Eye safety
Risk group according to CEI EN 62471:2010 Exempt

Last update 22 Aug 2024

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ± 3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
  6. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  7. At max forward current. Tolerance is ± 0.06V on forward voltage measurements.
  8. Used in continuous (not pulsed) mode.
  9. At pulse width <= 10 ms, duty cycle <= 10% condition. Built-in electronics board must be bypassed (see tech info).
  10. Measured from the camera flange of the objective lens to the electronic end of the illuminator. Cable, connector and mount thread excluded.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
Back focal adjustment
LTCLHP manual

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
SLDPRT
