| Electrical specifications | ||
| Supply voltage | (V) | 88-264 |
| Output channels | 1 | |
| Output voltage | (V) | 48 |
| Max output current | (A) | 5 |
| Max output power | (W) | 240 |
| Power cord | Not included | |
| Mechanical specifications | ||
| Length (5) | (mm) | 113.5 |
| Width (5) | (mm) | 63.0 |
| Height (5) | (mm) | 125.2 |
| Mass | (g) | 250 |
| Mounting | DIN rail | |
| Environmental specifications | ||
| Operating temperature | (°C) | -25-+70 |
| Storage temperature | (°C) | -40-+85 |
| Operating relative humidity | (%) | 20-95, non condensing |
| Installation | Indoor use only | |
Last update 02 Mar 2026
RT - Third-party product selected by Opto Engineering®
This is a third-party machine vision product supplied by Opto Engineering®. All technical specifications are provided as declared by the original manufacturer.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Datasheet
Download datasheet
Request a quote
Add this product to the quote request list.

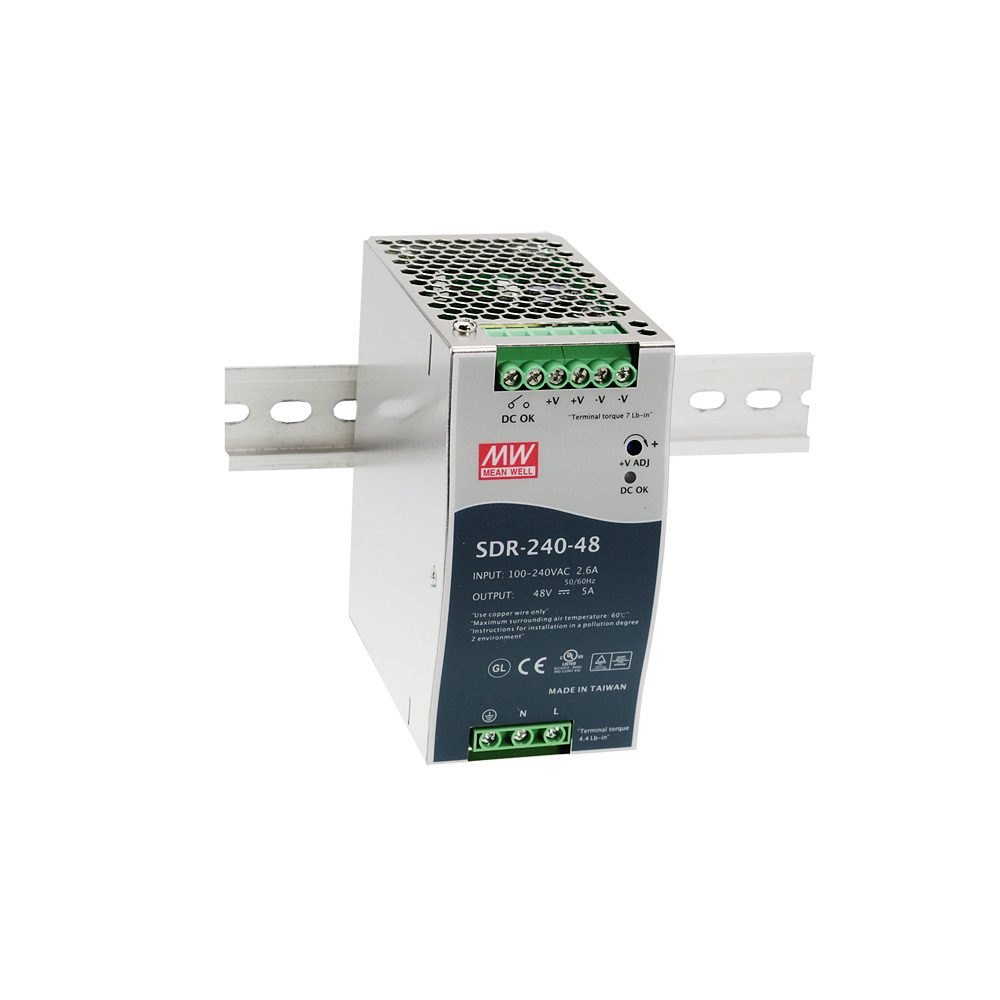

Product images
