Home Lighting LED illuminators LTTNC series

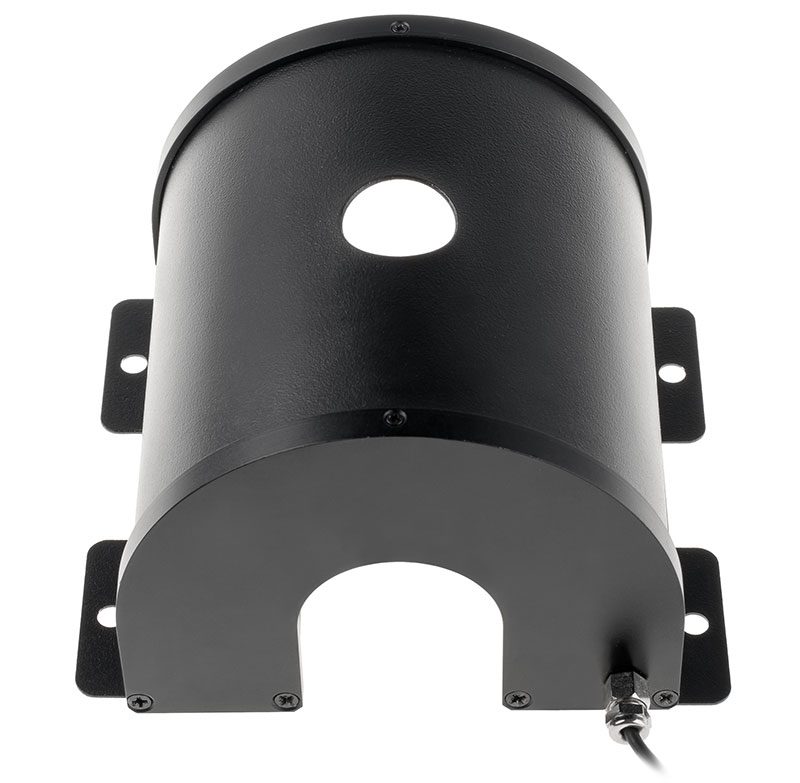

LT3WRH150-00-1-G-24V

Specifications

Lighting specifications
Illumination area width (mm) 76
Illumination area length (mm) 147
Optimal working distance (mm) 20-60
Number of LED rows 1
Light color, peak wavelength green, 525 nm
Illuminance (1) (lux) -
Electrical specifications
Supply voltage (2) (V) 24
Current (mA) 400
Power consumption (W) 9.6
Max pulse voltage (3) (V) 24-48 (36 recomended)
Max pulse current (4) (mA) 1200
Max duty-cycle (%) 10
Max pulse duration (ms) 10
Connector JST SMR-03V
Cable length (mm) 500
Mechanical specifications
Length (mm) 163.0
Width (mm) 177.6
Height (mm) 106.5
Mass (g) 530
Environmental specifications
Operating temperature (°C) 0-45
Operating relative humidity (%) 20-85, non condensing
Eye safety
Risk group according to CEI EN 62471:2010 Exempt

Last update 15 Apr 2022

CE
ROHS
REACH
WEEE

Notes

  1. ± 15%. See datasheet for measurments distance
  2. Tolerance ± 2%
  3. Constant voltage power supply
  4. Constant current power supply

Ordering information

Our part numbers are coded as LT3WRHxxx-yy-z-a-bbV where:
- xxx defines the lighting width
- yy defines the light angle (for this series the angle is 00 = 0°)
- z defines the number of LED rows
- a defines the color: R = red, G = green, B = blue, W = white. Contact us for additional wavelengths.
- bb defines the supply voltage. Optional 12V version is available.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
