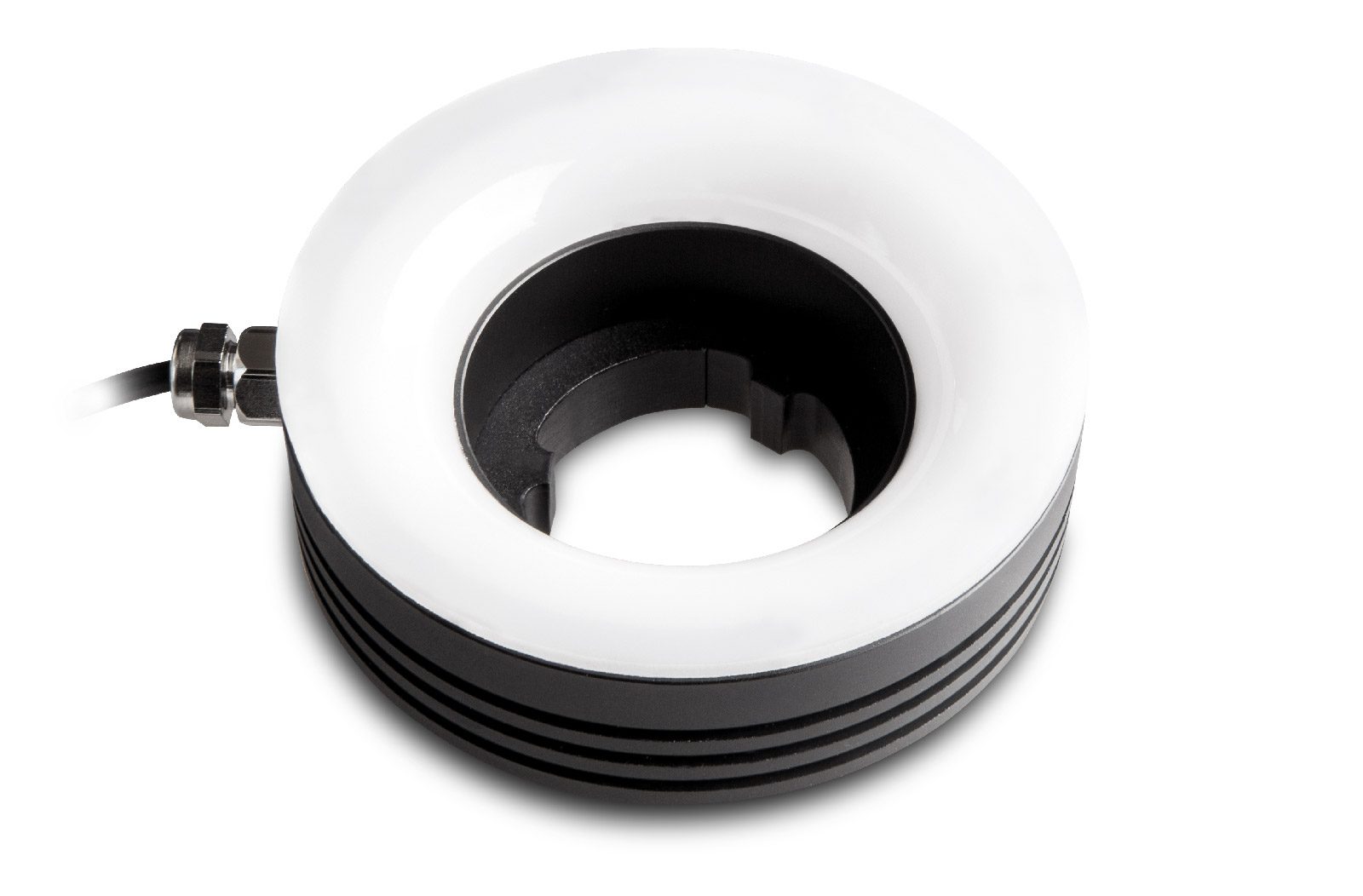

Lighting specifications | ||
Illumination area outer diameter | (mm) | 65.4 |
Illumination area inner diameter | (mm) | 43.8 |
Emission angle | (deg) | 45 |
Optimal working distance | (mm) | 20-50 |
Number of LED rows | 1 | |
Light color, peak wavelength | UV, 365 nm | |
Illuminance at minimum working distance (1) | (lux) | - |
Illuminance at maximum working distance (1) | (lux) | - |
Electrical specifications | ||
Supply voltage (2) | (V) | 24 |
Current | (mA) | 480 |
Power consumption | (W) | 11.5 |
Estimated MTBF (3) | (hours) | - |
Max pulse voltage (4) | (V) | 24-48 (36 recomended) |
Max pulse current (5) | (mA) | 1440 |
Max duty-cycle | (%) | 10 |
Max pulse duration | (ms) | 10 |
Connector | Flying leads | |
Cable length | (mm) | 1000 |
Mechanical specifications | ||
Outer diameter | (mm) | 75.4 |
Inner diameter | (mm) | 28.0 |
Height | (mm) | 32.0 |
Mass | (g) | 100 |
Environmental specifications | ||
Operating temperature | (°C) | 0-45 |
Operating relative humidity | (%) | 20-85, non condensing |
Eye safety | ||
Risk group according to CEI EN 62471:2010 | Exempt |
Last update 30 Jul 2024
Notes
- ± 15%.
- Tolerance ± 2%.
- At 25°C.
- Constant voltage power supply.
- Constant current power supply.
