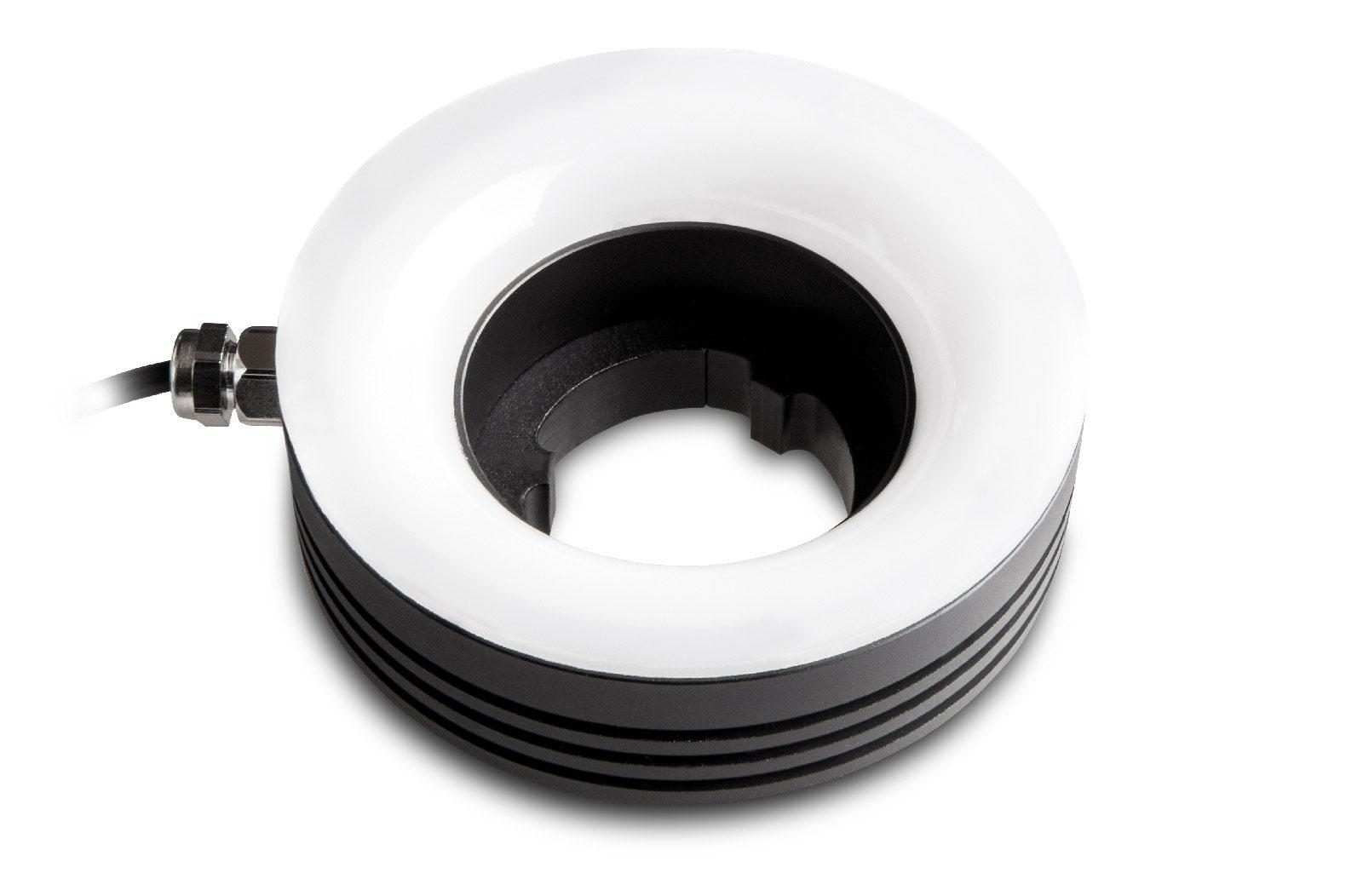

LTRN075RGBW
Specifications
Downloads
Compatible products
Lighting specifications
Illumination area outer diameter (mm) 65.4
Illumination area inner diameter (mm) 46.8
Emission angle (deg) 45
Optimal working distance (mm) 55-74
Number of LED rows 1
Light color, peak wavelength RGBW
Illuminance at minimum working distance (1) (lux) 2280
Illuminance at maximum working distance (1) (lux) 1900
Electrical specifications
Supply voltage (2) (V) 24
Current (mA) 90
Power consumption (W) 2.2
Estimated MTBF (3) (hours) -
Max pulse voltage (4) (V) 24-48 (36 recomended)
Max pulse current (5) (mA) 755
Max duty-cycle (%) 10
Max pulse duration (ms) 10
Connector 4x Flying leads
Cable length (mm) 1000
Mechanical specifications
Outer diameter (mm) 75.4
Inner diameter (mm) 28.0
Height (mm) 22.0
Mass (g) 100
Environmental specifications
Operating temperature (°C) 0-45
Operating relative humidity (%) 20-85, non condensing
Eye safety
Risk group according to CEI EN 62471:2010 Risk group 2

Last update 15 Mar 2024

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Additional notes

Refers to datasheet for RGBW lighting limitations.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
