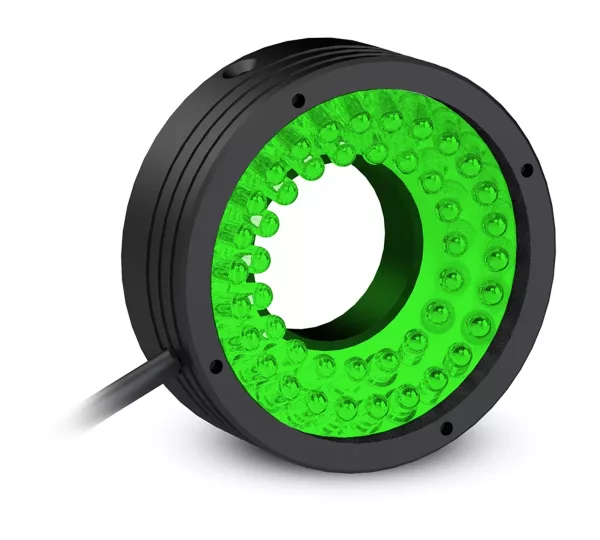

LTZGK040-30-2-G-24V

Specifications

Lighting specifications
Illumination area outer diameter (mm) 39.0
Illumination area inner diameter (mm) 22.2
Emission angle (deg) 30
Number of LED rows 2
Light color, peak wavelength green, 525 nm
Illuminance (1) (lux) -
Electrical specifications
Supply voltage (2) (V) 24
Current (mA) 105
Power consumption (W) 2.5
Max pulse voltage (3) (V) 24-48 (36 recomended)
Max pulse current (4) (mA) 315
Max duty-cycle (%) 10
Max pulse duration (ms) 10
Connector JST SMR-03V
Cable length (mm) 500
Mechanical specifications
Outer diameter (mm) 46.0
Inner diameter (mm) 20.0
Height (mm) 16.5
Mass (g) 40
Environmental specifications
Operating temperature (°C) 0-45
Operating relative humidity (%) 20-85, non condensing
Eye safety
Risk group according to CEI EN 62471:2010 Exempt

Last update 28 Sep 2022

CE
ROHS
REACH
WEEE

Notes

  1. ± 15%. See datasheet for measurments distance.
  2. Tolerance ± 2%.
  3. Constant voltage power supply.
  4. Constant current power supply.

Ordering information

Our part numbers are coded as LTZGKxxx-yy-z-a-bbV where:
- xxx defines the lighting diameter
- yy defines the light angle (for this series the angle is 00 = 0°, 15 = 15°, 30 = 30°, 45 = 45°)
- z defines the number of LED rows
- a defines the color: R = red, G = green, B = blue, W = white, UV375 = UV light, 375 nm. Contact us for additional wavelengths.
- bb defines the supply voltage. Optional 12V version is available.
